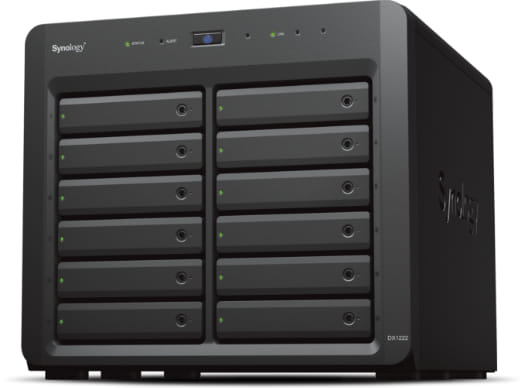

Synology DX1222, HDD/SSD enclosure, 2.5/3.5", Serial ATA, Serial ATA II, Serial ATA III, Hot-swap, Black
Add 12 bays to your DiskStation on the fly
Use Synology Expansion Unit DX1222 to add 12 additional bays to your deployment while keeping your storage and services online and uninterrupted.
Fast setup
Your additional storage will be ready to use in a matter of moments after you connect it to your host NAS.1 Online volume expansion enables you add a new volume or expand RAID volumes without reformatting drives through DiskStation Manager (DSM).
Optimize with Synology drives
Ensure high reliability and performance on your expansion unit with Synology drives that are designed to be a perfect fit.
Centrally manage all your drives
Benefit from unified drive management after connecting the DX1222 to your primary NAS. Maintenance, monitoring, and administration of drives on both units is simple with Synology DSM.
Use Synology Expansion Unit DX1222 to add 12 additional bays to your deployment while keeping your storage and services online and uninterrupted.
Fast setup
Your additional storage will be ready to use in a matter of moments after you connect it to your host NAS.1 Online volume expansion enables you add a new volume or expand RAID volumes without reformatting drives through DiskStation Manager (DSM).
Optimize with Synology drives
Ensure high reliability and performance on your expansion unit with Synology drives that are designed to be a perfect fit.
Centrally manage all your drives
Benefit from unified drive management after connecting the DX1222 to your primary NAS. Maintenance, monitoring, and administration of drives on both units is simple with Synology DSM.
| Storage | |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 12 |
| Storage drive size The size of the storage drive, given in inches (''). | 2.5/3.5" |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Hot-swap |
 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 192 TB |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
 |
| Design | |
| Product type The sub-category of the product. | HDD/SSD enclosure |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Certification | UL FCC CE BSMI UKCA EAC VCCI RCM KC |
| Performance | |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 24.6 dB |
| Power | |
| Power source type What the power source is. | AC |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50/60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 300 mm |
| Depth The distance from the front to the back of something. | 340 mm |
| Height The measurement of the product from head to foot or from base to top. | 270 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.02 kg |
| Packaging content | |
| Cables included | AC |
| Manual |
|
| SKU | 565537 |
| MPN | DX1222 |
| Brand | Synology |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
