StarTech 3.5in Front Bay USB 2.0 Multi Media Memory Card Reader Black

Item No:

StarTech 3.5in Front Bay USB 2.0 Multi Media Memory Card Reader Black

Payment options
Shipping Information
  • Available for shipping
  • Usually leaves our partner warehouse in 2-3 business days
Store Availability
  • 3-4 business days at Bankstown
  • 3-4 business days at Blacktown
  • 3-4 business days at Castle Hill
Shipping Estimate
High Speed USB 2.0 to support up to 480MBPs

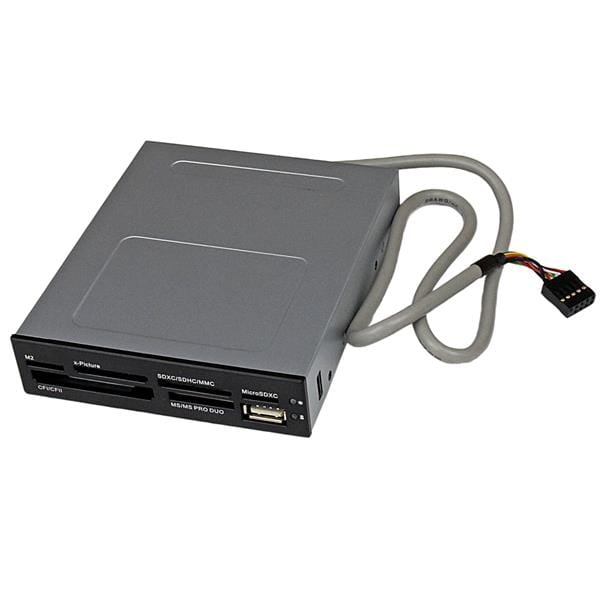

The 35FCREADBK3 3.5" Multimedia Card Reader offers quick and easy access to the most popular flash card formats, from the front panel of almost any desktop computer.

Suitable for quickly accessing memory cards from virtually any portable media device (e.g. digital cameras, MP3 players, etc.), this versatile media card reader supports 22 of the most popular card types, including: Compact Flash (CF type I/II), Secure Digital (SD/miniSD/microSD/SDHC/SDXC), MultiMediaCard (MMC/RS-MMC/HS-MMC/MMCmobile/MMCplus/MMCmicro/HC-MMC), MemoryStick (MS/MS Duo/HS-MS/MS PRO/MS PRO Duo/MS PRO-HG Duo/MS-ROM/M2), and xD Picture cards, this reader is ready to handle the memory cards from virtually any portable device from cameras to music players.

The card reader also allows simultaneous access to multimedia card types (excluding same type media), allowing you to copy files from or between different cards at the same time.

Backed by a 2-year warranty and free lifetime technical support.

Connector Type(s)IDC (10 pin, Motherboard Header)
External PortsCompactFlash (50 pin) Slot
Memory Stick / Memory Stick Pro Slot
Memory Stick Micro (M2) Slot
MiniSD / MicroSD / MMC Slot
SD / MMC Slot
USB Type-A (4 pin) USB 2.0
xD-Picture Card Slot
Operating Temperature0?C to 70?C (32?F to 158?F)
Storage Temperature-40?C to 125?C (-40?F to 257?F)
Chipset IDITE - 1336
LED IndicatorsPower/Activity
Packaging Information
Shipping (Package) Weight0.2 kg [0.5 lb]
Memory Media TypeCF (Compact Flash I/II Card)
HS-MMC, HC-MMC (High Speed/High Capacity Multimedia Card)
HS-MS (High Speed Memory Stick)
M2 (Memory Stick Micro)
Memory Stick
Micro-SDHC (Micro Secure Digital High Capacity)
Mini-SD, Micro-SD (Mini/Micro Secure Digital)
MS Duo, MS Pro Duo, MS Pro-HG Duo
Multi Media Card
RS-MMC (Reduced Size Multimedia Card)
SD/MMC (Secure Digital/Multimedia Card)
SDHC (Secure Digital High Capacity)
SDXC (Secure Digital eXtended Capacity)
xD (Extreme Digital) Picture Card
Physical Characteristics
Enclosure TypeSteel and Plastic
Product Height25 mm [1 in]
Product Length130 mm [5.1 in]
Product Weight164 g [5.8 oz]
Product Width105 mm [4.1 in]
Power SourceUSB-Powered
OS CompatibilityOS independent; No software or drivers required
Special Notes / Requirements
NoteSimultaneous card access is limited to different media card types
System and Cable RequirementsAvailable internal 9-pin USB motherboard header
What's in the Box
Included in Package9-pin IDC USB cable
Bag of Mounting Screws
Card Reader
Instruction Manual
Compatible memory cards Types of memory cards which can be used with this product. CF,MMC,MS Duo,MS Micro (M2),MS PRO Duo,MS Pro-HG Duo,Memory Stick (MS),MicroSD (TransFlash),MicroSDHC,MiniSD,RS-MMC,SD,SDHC,SDXC,xD
Internal The product is built in.
Supported drive bays 3.5"
Data transfer rate Rate at which data can be transferred, usually measured in units per second. May vary with network configurations. 480 Mbit/s
Product colour The colour e.g. red, blue, green, black, white. Black
Housing material What the casing of the product is made of. Plastic,Steel
Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.
LED indicators Activity,Power
Certification CE, FCC, RoHS, TAA
Ports & interfaces
Interface type IDC
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. 1
Power source type What the power source is. USB
Windows operating systems supported Windows vesions wich can be used with the device.
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.
Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Weight & dimensions
Width The measurement or extent of something from side to side. 105 mm
Depth The distance from the front to the back of something. 130 mm
Height The measurement of the product from head to foot or from base to top. 25 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 164 g
Packaging data
Package width The distance from one side of the packaging to the other. 140 mm
Package depth The distance from the front to the back of the packaging. 163 mm
Package height The distance from the top to the bottom of the packaging. 37 mm
Package weight Weight of the packaged product. 270 g
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. 0 - 70 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 125 °C
Operating relative humidity (H-H) 15 - 85%
Packaging content
Cables included USB
Screws included
Technical details
Package length 6.50
Chipset Set of electronic components in an integrated circuit that manages the data flow between the processor, memory and peripherals. It is usually found in the motherboard of a computer. Chipsets are usually designed to work with a specific family of microprocessors. Because it controls communications between the processor and external devices, the chipset plays a crucial role in determining system performance. ITE - 1336
More Information
SKU 219009
Brand Startech
Product Condition Brand New/Unused
Stock Availability Available for Shipping
Warranty Period 2 Years Warranty
Warranty Contact
