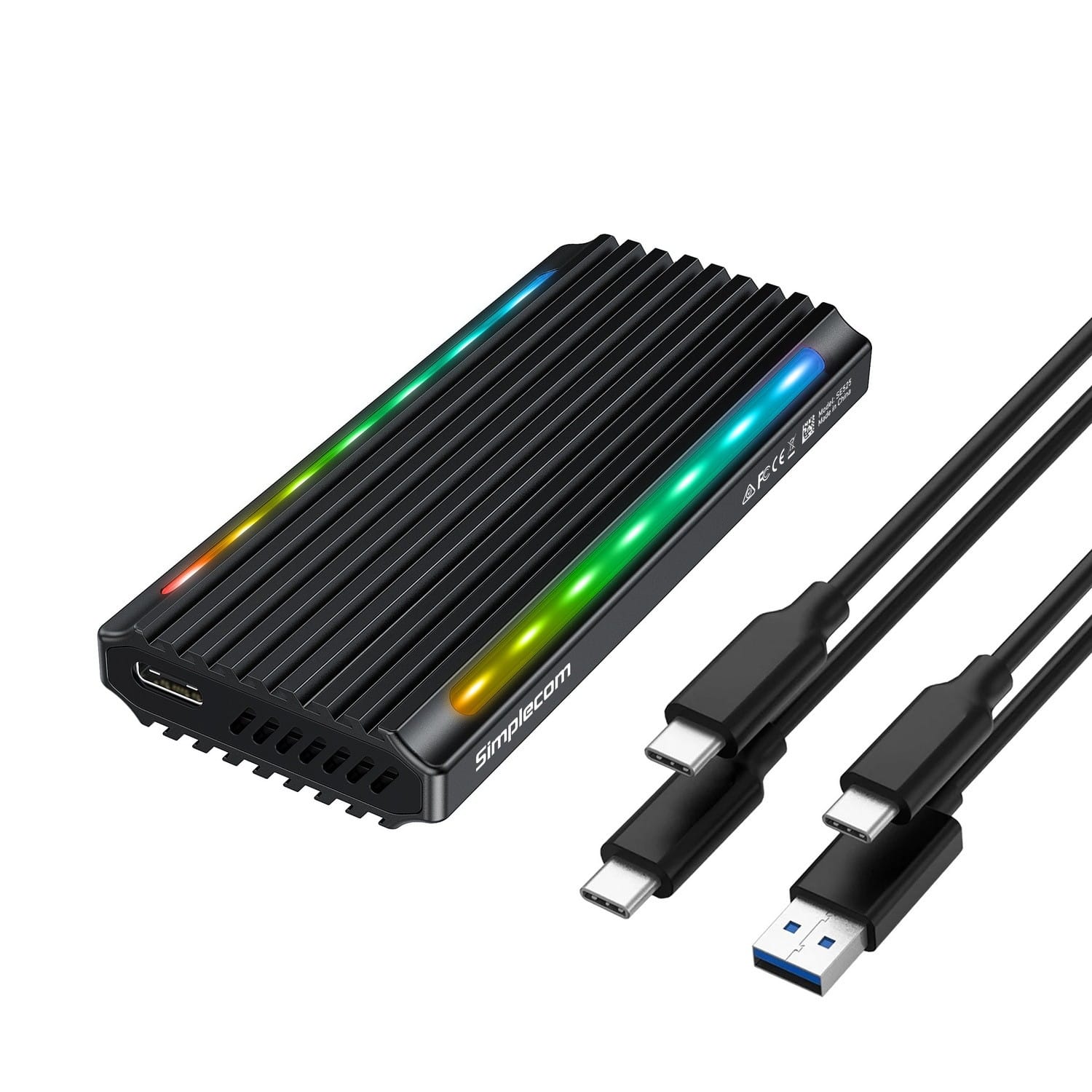

Simplecom SE525 NVMe / SATA M.2 SSD USB C Enclosure with RGB Light USB 3.2 Gen 2 10Gbps
Simplecom SE525 NVMe / SATA M.2 SSD USB C Enclosure with RGB Light USB 3.2 Gen 2 10Gbps
Features
Dual Protocol support for both NVMe and SATA M.2 SSD
Convert M Key or B M Key M.2 SSD to a USB portable drive
USB 3.2 Gen 2 interface support data transfer speeds up to 10Gbps
Aluminium case for durability and excellent heat dissipation
Dynamic RGB light effect for power and activity status
Tool free design, quick and easy installation of SSDs without any tools
Supports USAP for faster data transfer speed and maximum performance
Supports TRIM command for improved data writing to extend SSD life
Plug and play, no driver required
Specifications
Model: SE525
Interface: USB C (USB 3.2 Gen 2)
Housing Material: Aluminium, ABS Plastic
Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
Compatible M.2 Protocol: NVMe M.2, SATA M.2
Compatible M.2 Size: 2242, 2260, 2280
Dimension: 98x44x13mm (LxWxH)
Operating System Support: Windows 7 and above, MacOS 10.8 and above
Package Contents
1x SE525 M.2 SSD Enclosure
1x USB C to USB C Cable
1x USB C to USB A Cable
1x Thermal Pad
Important Note
SE525 supports both NVMe and SATA protocol based M.2 SSD (M Key or B M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA protocol is 6Gbps.
RGB light effect is fixed and can't be programmed, breathing effect when powered, and switch to flowing effect during data transfer.
Features
Dual Protocol support for both NVMe and SATA M.2 SSD
Convert M Key or B M Key M.2 SSD to a USB portable drive
USB 3.2 Gen 2 interface support data transfer speeds up to 10Gbps
Aluminium case for durability and excellent heat dissipation
Dynamic RGB light effect for power and activity status
Tool free design, quick and easy installation of SSDs without any tools
Supports USAP for faster data transfer speed and maximum performance
Supports TRIM command for improved data writing to extend SSD life
Plug and play, no driver required
Specifications
Model: SE525
Interface: USB C (USB 3.2 Gen 2)
Housing Material: Aluminium, ABS Plastic
Transfer Rate: NVMe M.2 up to 10Gbps, SATA M.2 up to 6Gbps
Compatible M.2 Protocol: NVMe M.2, SATA M.2
Compatible M.2 Size: 2242, 2260, 2280
Dimension: 98x44x13mm (LxWxH)
Operating System Support: Windows 7 and above, MacOS 10.8 and above
Package Contents
1x SE525 M.2 SSD Enclosure
1x USB C to USB C Cable
1x USB C to USB A Cable
1x Thermal Pad
Important Note
SE525 supports both NVMe and SATA protocol based M.2 SSD (M Key or B M Key), bandwidth will be limited to 6Gbps when using SATA M.2 SSD, as maximum transfer rate of SATA protocol is 6Gbps.
RGB light effect is fixed and can't be programmed, breathing effect when powered, and switch to flowing effect during data transfer.
| Storage | |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 1 |
| Storage drive size The size of the storage drive, given in inches (''). | M.2 |
| Supported storage drive interfaces | M.2 |
| Installed storage drive type Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive). | SSD |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| USB connector type The type of USB connector/port that this product has. | USB Type-C |
| USB connector gender | Female |
| USB ports quantity | 1 |
| Design | |
| Product type The sub-category of the product. | SSD enclosure |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators |
|
| Performance | |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 10 Gbit/s |
| UASP support |
|
| TRIM support |
|
| Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration. |
|
| Power | |
| Power source type What the power source is. | USB |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 44 mm |
| Depth The distance from the front to the back of something. | 98 mm |
| Height The measurement of the product from head to foot or from base to top. | 13 mm |
| Packaging content | |
| Cables included | USB |
| SKU | 736553 |
| MPN | SE525 |
| Brand | Simplecom |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.simplecom.com.au/ |
