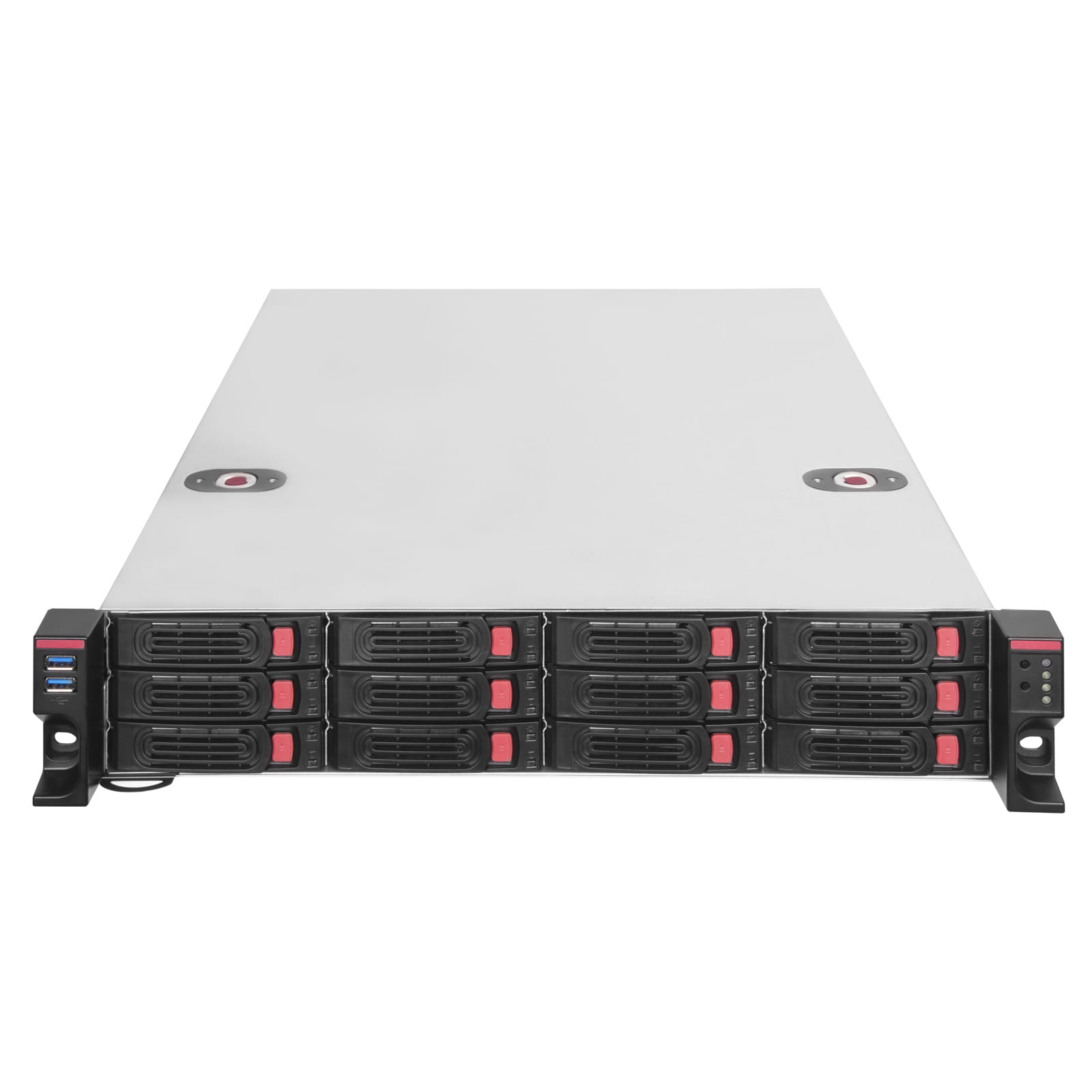

Silverstone RM22-312 HDD/SSD enclosure Stainless steel 2.5/3.5"
Distinctive exterior
Distinctive front panel features 12 x hot-swappable 3.5" bays or 12 x hot-swappable 2.5" bays with handle bars allowing for easy accessibility to the internal components
Storage device performance
HDD backplane supports 12 ports SAS / SATA drives and 12Gb/s Mini-SAS HD SFF-8643 x 3 with SGPIO
Cooling capabilities
Utilizing the typical front-to-back directional airflow, RM22-312 comes pre-installed with three 80mm x 38mm hot-swappable PWM fans, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside
Sliding rail compatibility
Reserved mounting holes for sliding rails which can be easily installed. Can be used with RMS03-26 rail
Distinctive front panel features 12 x hot-swappable 3.5" bays or 12 x hot-swappable 2.5" bays with handle bars allowing for easy accessibility to the internal components
Storage device performance
HDD backplane supports 12 ports SAS / SATA drives and 12Gb/s Mini-SAS HD SFF-8643 x 3 with SGPIO
Cooling capabilities
Utilizing the typical front-to-back directional airflow, RM22-312 comes pre-installed with three 80mm x 38mm hot-swappable PWM fans, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside
Sliding rail compatibility
Reserved mounting holes for sliding rails which can be easily installed. Can be used with RMS03-26 rail
| Storage | |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 12 |
| Storage drive size The size of the storage drive, given in inches (''). | 2.5/3.5" |
| Supported storage drive interfaces | SAS, SAS-2, SAS-3, Serial ATA, Serial ATA II, Serial ATA III |
| Hot-swap |
 |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| USB ports quantity | 2 |
| Design | |
| Product type The sub-category of the product. | HDD/SSD enclosure |
| Product colour The colour e.g. red, blue, green, black, white. | Stainless steel |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Metal |
| LED indicators | HDD, LAN, Power |
| On/off switch The button which is pressed to switch the device on or off. |
|
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 2U |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 8 cm |
| Performance | |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 12 Gbit/s |
| Power | |
| Power source type What the power source is. | AC |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 430 mm |
| Depth The distance from the front to the back of something. | 660 mm |
| Height The measurement of the product from head to foot or from base to top. | 88.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 10.9 kg |
| Packaging content | |
| Manual |
|
| SKU | 547712 |
| MPN | SST-RM22-312 |
| Brand | Silverstone |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.silverstonetek.com/ |
