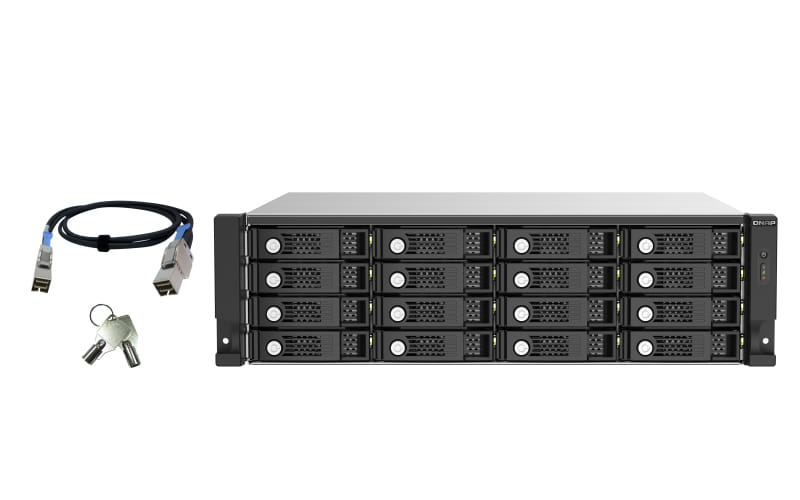

QNAP 16-Bay 3U Rackmount SAS Storage Expansion Enclosure
Item No:
599949
MPN:
TL-R1620Sep-RP
$6,932.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
QNAP TL-R1620Sep-RP expansion storage 16 Bay Hot-swappable 3U Rackmount 4 x 12Gb/s SAS 3.0 wide ports
QNAP TL-R1620Sep-RP
The TL-R1620Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of your QTS or QuTS hero NAS. Up to sixteen expansion enclosures can be daisy-chained via high-speed mini SAS HD cables to support up to 4.6PB raw capacity, ideal for archiving/backing up virtualization applications, surveillance recordings, large data, or multimedia. Featuring Broadcom SAS DataBolt bandwidth optimization technology, the TL-R1620Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s. With four mini SAS HD SFF-8644 Wide Ports, the TL-R1620Sep-RP delivers up to 192Gbps transfer speed when connected to a single host. When connected to a QTS/QuTS hero NAS that supports multipath routing, the TL-R1620Sep-RP can achieve smoother data transmission and continuous system operation.
Note: The QNAP NAS requires QTS 4.5.1 / QuTS hero h4.5.1 (or later) with SAS ports or with a QXP PCIe SAS storage expansion card installed.
Drive Bay 16 x 3.5-inch SAS 12Gb/s, SAS/SATA 6Gb/s
Hot-swappable
4 x 12Gb/s SAS 3.0 wide ports
3U Rackmoun
Operating temperature 0 - 40 DegC (32 DegF - 104 DegF)
Power Supply Unit 550W(x2), 100-240V
Power Consumption: Operating Mode, Typical 207.13 W
Fan 3 x 80mm, 12VDC
The TL-R1620Sep-RP SAS 12Gb/s storage expansion enclosure is designed for expanding the storage space of your QTS or QuTS hero NAS. Up to sixteen expansion enclosures can be daisy-chained via high-speed mini SAS HD cables to support up to 4.6PB raw capacity, ideal for archiving/backing up virtualization applications, surveillance recordings, large data, or multimedia. Featuring Broadcom SAS DataBolt bandwidth optimization technology, the TL-R1620Sep-RP consolidates 6Gb/s infrastructure into 12Gb/s. With four mini SAS HD SFF-8644 Wide Ports, the TL-R1620Sep-RP delivers up to 192Gbps transfer speed when connected to a single host. When connected to a QTS/QuTS hero NAS that supports multipath routing, the TL-R1620Sep-RP can achieve smoother data transmission and continuous system operation.
Note: The QNAP NAS requires QTS 4.5.1 / QuTS hero h4.5.1 (or later) with SAS ports or with a QXP PCIe SAS storage expansion card installed.
Drive Bay 16 x 3.5-inch SAS 12Gb/s, SAS/SATA 6Gb/s
Hot-swappable
4 x 12Gb/s SAS 3.0 wide ports
3U Rackmoun
Operating temperature 0 - 40 DegC (32 DegF - 104 DegF)
Power Supply Unit 550W(x2), 100-240V
Power Consumption: Operating Mode, Typical 207.13 W
Fan 3 x 80mm, 12VDC
| Storage | |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 16 |
| Storage drive size The size of the storage drive, given in inches (''). | 2.5/3.5" |
| Supported storage drive interfaces | SAS-3, Serial ATA III |
| Hot-swap |
 |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
 |
| Design | |
| Product type The sub-category of the product. | HDD/SSD enclosure |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| LED indicators |
|
| On/off switch The button which is pressed to switch the device on or off. |
|
| Key lock |
|
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Rack capacity The spase that device fill in rack. | 3U |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 8 cm |
| Performance | |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 36 dB |
| Power | |
| Power source type What the power source is. | AC |
| AC adapter input voltage | 100-240 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 482.2 mm |
| Depth The distance from the front to the back of something. | 425.3 mm |
| Height The measurement of the product from head to foot or from base to top. | 131.3 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 11.5 kg |
| Package weight Weight of the packaged product. | 16 kg |
| SKU | 599949 |
| MPN | TL-R1620Sep-RP |
| Brand | QNAP |
| Product Condition | Brand New/Unused |
| NAS Form Factor | Rackmounted |
| NAS Bays | 16.00 |
| Stock Availability | Available for Shipping |
| Product Use | General |
