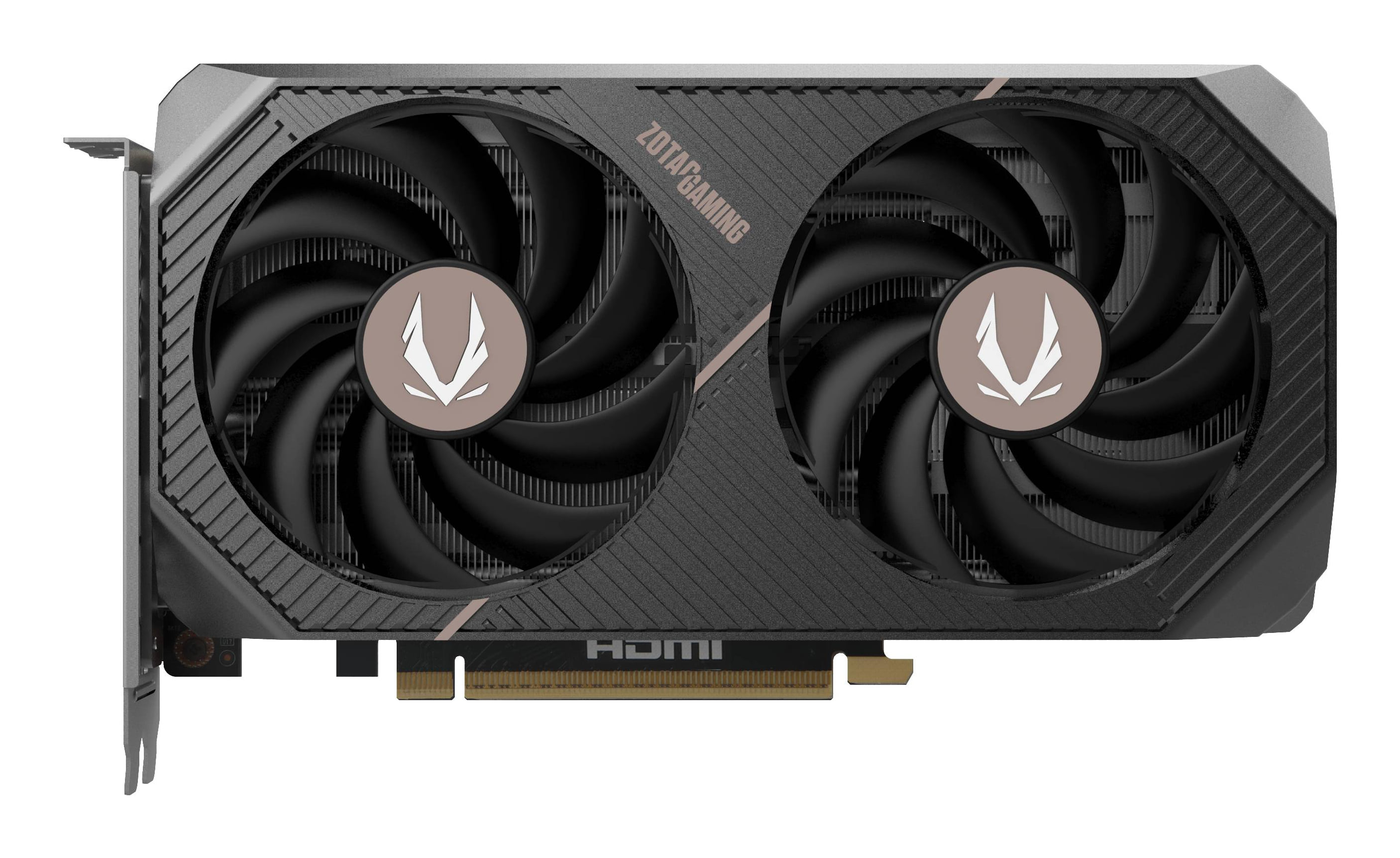

ZOTAC Gaming GeForce RTX 5060 Ti AMP GDDR7 16GB Graphic Card
Item No:
845042
MPN:
ZT-B50620F-10M
$1,349.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 3-5 business days
Store Availability
- 4-6 business days at Bankstown Store
- 4-6 business days at Castle Hill Store
- 3-5 business days at Northmead Store
Shipping Estimate
Zotac GAMING GeForce RTX 5060 Ti AMP, GeForce RTX 5060 Ti, 16 GB, GDDR7, 128 bit, 7680 x 4320 pixels, PCI Express x8 5.0
The ZOTAC GAMING GeForce RTX 5060 Ti 16GB AMP is a compact graphics card powered by NVIDIA's cutting edge Blackwell Architecture, DLSS4 and 16GB of GDDR7 memory. With a strong factory OC as well as a solid cooling solution, the AMP is ready to take on the latest title releases with smooth framerates and performance.
| Processor | |
| CUDA CUDA (aka Compute Unified Device Architecture) is a parallel computing platform and programming model created by NVIDIA and implemented by the graphics processing units (GPUs) that they produce. CUDA gives program developers direct access to the virtual instruction set and memory of the parallel computational elements in CUDA GPUs. |
 |
| CUDA cores The number of parallel processing cores available on the graphics processor to accelerate compute-intensive tasks (e.g. 10240). | 4608 |
| Graphics processor family The category to which the graphics processor (GPU) belongs e.g. Southern Islands family of Radeon processors (made by AMD), GeForce 600 (made by NVIDIA). | NVIDIA |
| Graphics processor Also known as a graphics processing unit (GPU), this is a specialized electronic circuit designed to rapidly manipulate and alter memory to accelerate the creation of images in a frame buffer intended for output to a display. GPUs are used in embedded systems, mobile phones, personal computers, workstations, and game consoles. Modern GPUs are very efficient at manipulating computer graphics. | GeForce RTX 5060 Ti |
| Processor boost clock speed The maximum frequency the processor can automatically reach to increase performance during demanding tasks, measured in MHz. | 2632 MHz |
| Maximum resolution The maximum number of pixels that can be displayed in the image. It is usually quoted as width × height,: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. | 7680 x 4320 pixels |
| Parallel processing technology support Parallel processing technology is the simultaneous use of more than one CPU or processor core to execute a program or multiple computational threads. Ideally, parallel processing makes programs run faster because there are more engines (CPUs or Cores) running it. In practice, it is often difficult to divide a program in such a way that separate CPUs or cores can execute different portions without interfering with each other. Most computers have just one CPU, but some models have several, and multi-core processor chips are becoming the norm. There are even computers with thousands of CPUs. | Not supported |
| Maximum displays per videocard The maximum number of independent monitors or screens that can be connected and operated simultaneously from a single unit. | 4 |
| Memory | |
| Discrete graphics card memory The amount of dedicated video RAM (VRAM) available on the separate graphics processing unit, measured in gigabytes (GB). | 16 GB |
| Graphics card memory type The type of memory used by the video card. Often a combination of dedicated memory (Video RAM or VRAM) and dynamic system memory is used. UMA stands for Unified Memory Architecture, and is a computer memory architecture that allows the graphics processing unit to share system memory. Other abreviations: RAM = Random Access Memory, SDRAM = synchronous dynamic RAM, DDR = double-data-rate. | GDDR7 |
| Memory bus Hardware and software that connects the main memory to the memory controller in computer systems. Originally, general-purpose buses like VMEbus and the S-100 bus were used, but to reduce latency, modern memory buses are designed to connect directly to DRAM chips, and thus are designed by chip standards bodies such as JEDEC. | 128 bit |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 28 Gbit/s |
| Ports & interfaces | |
| Interface type | PCI Express x8 5.0 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version The specific release version of the High-Definition Multimedia Interface standard supported by the device (e.g. 1.3 or 2.0). | 2.1b |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 3 |
| DisplayPort version The specific release version of the DisplayPort standard supported by the device (e.g., 1.2 or 1.4). | 2.1b |
| Performance | |
| TV tuner integrated Device has an in-built TV tuner. |
 |
| DirectX version DirectX is a collection of APIs (application programming interfaces) for easily handling tasks related to game programming on the Microsoft Windows operating system. | 12 Ultimate |
| OpenGL version OpenGL (Open Graphics Library) is a specification defining a cross-language cross-platform API for writing applications that produce 3D computer graphics (and 2D computer graphics as well). The interface consists of over 250 different function calls which can be used to draw complex three-dimensional scenes from simple primitives. | 4.6 |
| Virtual Reality (VR) ready Indicates whether the device meets the hardware and software requirements to run virtual reality applications. |
|
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| HDCP version The version of the High-bandwidth Digital Content Protection standard supported by the device to prevent the unauthorized copying of digital audio and video content (e.g. 2.2). | 2.3 |
| Dual Link DVI A dual-link DVI interface sends data over both of the DVI links to the monitor, and this is how higher resolutions are achieved. With dual-link DVI, a resolution of 2048 x 1536 is possible. |
|
| NVIDIA G-SYNC Indicates whether the product supports NVIDIA G-SYNC technology to synchronize the display refresh rate with the GPU to eliminate screen tearing. |
|
| Design | |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Cooling technology The specific thermal management system or proprietary cooling design used to dissipate heat from the product (e.g., Hybrid Cooling or Axial-tech). | Zotac IceStorm 2.0 |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 2 fan(s) |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 9 cm |
| Form factor The shape or design of the product. | Full-Height/Half-Length (FH/HL) |
| Number of slots The total number of available compartments or sockets provided for inserting compatible components or items. | 2 |
| Illumination The device has illumination. |
|
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | White |
| SFF ready Indicates whether the product is designed to fit into Small Form Factor (SFF) chassis. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Minimum system power supply The lowest power that is needed. | 600 W |
| Supplementary power connectors Specifies the additional power inputs required to provide sufficient energy to the device beyond the primary interface slot (e.g. 3 x 8-pin). | 1x 8-pin |
| Power consumption (max) The maximum amount of power used by the device. | 180 W |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Length The measurement or extent of something from end to end. | 220.5 mm |
| Depth The distance from the front to the back of something. | 41.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 120.2 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 218 mm |
| Package depth The distance from the front to the back of the packaging. | 83 mm |
| Package height The distance from the top to the bottom of the packaging. | 283 mm |
| Package type The type of product package e.g. box. | Box |
| Packaging content | |
| Manual Indicates whether a printed user manual is included in the package. |
|
| SKU | 845042 |
| MPN | ZT-B50620F-10M |
| Brand | Zotac |
| Assembled to Order | No |
| Display In Stock In Frontend | Yes |
| Product Condition | Brand New/Unused |
| GPU Series | GeForce RTX 5060 Ti |
| Graphics RAM Size | 16 GB |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.octek.com.au/ |
