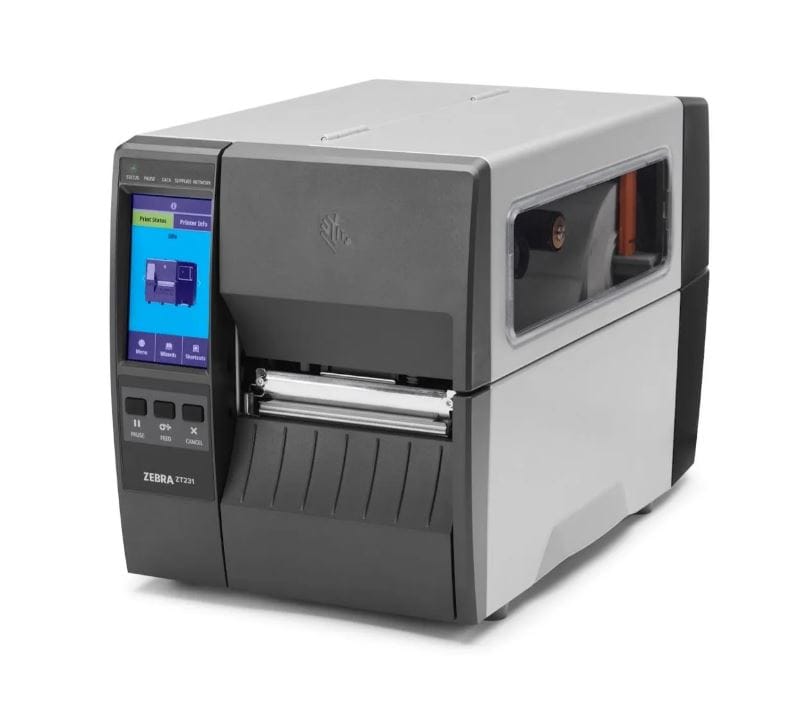

300 DPI Resolution; Direct Thermal Printing; 10.9cm (4.3") Colour Resistive Touchscreen LCD; USB, USB Host, Serial, Bluetooth Low Energy (BTLE) and Ethernet 10/100 Connectivity
| Printing | |
| Print technology Indicates the method used to print by this product. | Direct thermal / Thermal transfer |
| Colour The main colour of the product. |
 |
| Maximum resolution Maximum printing resolution. | 203 x 203 DPI |
| Printable dot numbers | 8 dot |
| Maximum printing width The maximum width of the image that can be printed. | 10.4 cm |
| Paper handling | |
| Autocutter |
|
| Ribbon width | 11 cm |
| Ribbon length | 450 m |
| Maximum label width | 11.4 cm |
| Maximum roll diameter The maximum size of roll that can be used, measured by the diameter which is the distance from one side to the other with a straight line passing through the centre of the roll. | 20.3 cm |
| Media thickness | 0.076 - 0.25 mm |
| Core diameter | 2.54 cm |
| Ports & interfaces | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Performance | |
| Page description languages | EPL, EPL2, ZBI, ZPL, ZPL II |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 256 MB |
| Flash memory | 256 MB |
| Built-in barcodes | Code 93, Code-128 Codabar Library, AZTECCODE, Data Matrix, QR Code, Codablock, EAN128, EAN13, Matrix 2/5, Code 128 (A/B/C), EAN14, MaxiCode, UPC-A, EAN8, UPC-E, Planet |
| Built-in RFID module |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 10.9 cm (4.3") |
| Colour display |
|
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50-60 Hz |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mobile operating systems supported The operating systems e.g. Android, iOS, that can be used with the mobile device. | Android, iOS |
| Operational conditions | |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 5 - 85% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 241 mm |
| Depth The distance from the front to the back of something. | 432 mm |
| Height The measurement of the product from head to foot or from base to top. | 279 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.1 kg |
| SKU | 697103 |
| MPN | ZT23143-D0P000FZ |
| Brand | Zebra |
| Product Condition | Brand New/Unused |
| Product Use | General |
