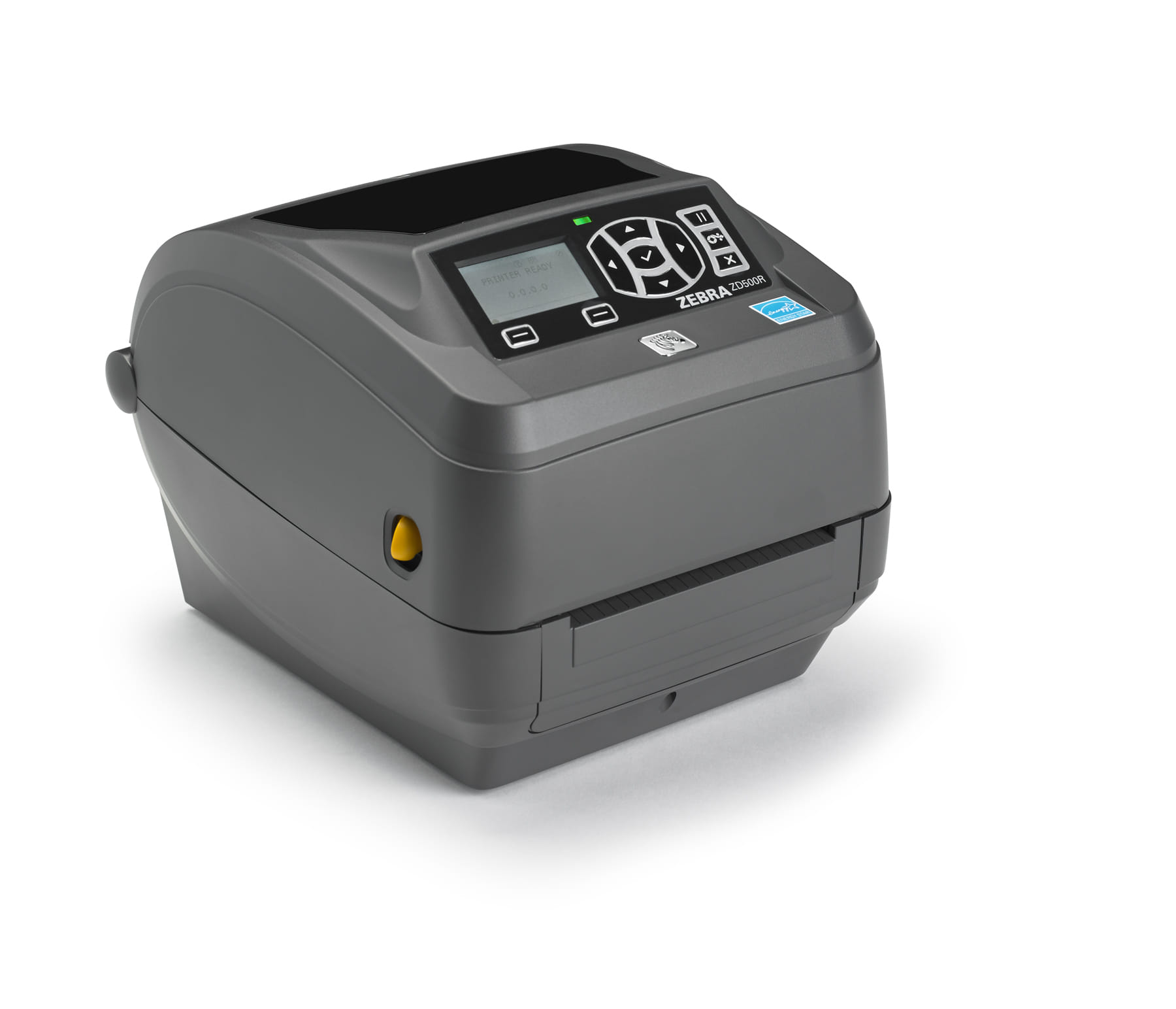

Zebra ZD500R, Direct thermal / Thermal transfer, 203 x 203 DPI, 152 mm/sec, Wired, Black
Small in size but full of features, the ZD500R is Link-OS-enabled making it simple to integrate and manage. With automatic calibration, you ll enjoy lower media cost, less waste and fewer roll changes. Featuring UHF RFID encoding capabilities, it is ideal for numerous applications such as retail tagging, and manufacturing, government and healthcare tracking.
The ZD500R extends Zebra s broad range of RFID printers by adding UHF RFID printing and encoding to Zebra s line of industry-leading thermal desktop printers. Designed for applications where space is at a premium, the compact ZD500R offers simple, one-touch printing and encoding, straightforward loading, and automatic RFID calibration, making it ideal for applications where technical support staff is not available, such as retail in-store exception tagging.
The printer supports both direct thermal and thermal transfer printing and is compatible with inlays from all leading suppliers. The ZD500R can be used with a variety of RFID labels and tags from small, item-level hang tags to large case and pallet labels. By encoding RFID inlays that are spaced closer together, the ZD500R enables lower media costs, less media waste and fewer roll changes.
The printer can handle the most demanding applications with standard features that include Parallel, Serial, USB and Ethernet connectivity; large memory; and Zebra programming language. Options include cutter and peeler, Bluetooth and Wi-Fi-certified communications, and high-resolution printing.
The ZD500R leverages Zebra s new Link-OS environment "Zebra s innovative software platform with powerful applications that enhance the capabilities of the printer, making it significantly easier to integrate into global operations and manage from any location.
Featuring the Link-OS Cloud Connect application, the ZD500R can connect to the Cloud directly and securely, forwarding data from any port.
The Link-OS Print Touch app allows users to pair the ZD500R to NFC-enabled devices with a simple tap, giving them immediate access to the data they need, including Zebra how-to videos and product support.
The ZD500R extends Zebra s broad range of RFID printers by adding UHF RFID printing and encoding to Zebra s line of industry-leading thermal desktop printers. Designed for applications where space is at a premium, the compact ZD500R offers simple, one-touch printing and encoding, straightforward loading, and automatic RFID calibration, making it ideal for applications where technical support staff is not available, such as retail in-store exception tagging.
The printer supports both direct thermal and thermal transfer printing and is compatible with inlays from all leading suppliers. The ZD500R can be used with a variety of RFID labels and tags from small, item-level hang tags to large case and pallet labels. By encoding RFID inlays that are spaced closer together, the ZD500R enables lower media costs, less media waste and fewer roll changes.
The printer can handle the most demanding applications with standard features that include Parallel, Serial, USB and Ethernet connectivity; large memory; and Zebra programming language. Options include cutter and peeler, Bluetooth and Wi-Fi-certified communications, and high-resolution printing.
The ZD500R leverages Zebra s new Link-OS environment "Zebra s innovative software platform with powerful applications that enhance the capabilities of the printer, making it significantly easier to integrate into global operations and manage from any location.
Featuring the Link-OS Cloud Connect application, the ZD500R can connect to the Cloud directly and securely, forwarding data from any port.
The Link-OS Print Touch app allows users to pair the ZD500R to NFC-enabled devices with a simple tap, giving them immediate access to the data they need, including Zebra how-to videos and product support.
| Printing | |
| Print technology Indicates the method used to print by this product. | Direct thermal / Thermal transfer |
| Colour The main colour of the product. |
 |
| Maximum resolution Maximum printing resolution. | 203 x 203 DPI |
| Print speed The maximum speed at which a printer can print. | 152 mm/sec |
| Maximum printing width The maximum width of the image that can be printed. | 10.4 cm |
| Maximum print height The maximum height of an image printed by the product. | 99 cm |
| Paper handling | |
| Ribbon width | 10.9 cm |
| Ribbon length | 74 m |
| Maximum label width | 10.8 cm |
| Maximum label length | 0.99 m |
| Maximum roll diameter The maximum size of roll that can be used, measured by the diameter which is the distance from one side to the other with a straight line passing through the centre of the roll. | 12.7 cm |
| Media thickness | 0.08 - 0.305 mm |
| Supported paper width | 33.8 - 109.2 mm |
| Maximum media length | 99 cm |
| Core diameter | 1.27 cm |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Parallel ports quantity The number of parallel ports. Parallel ports, also known as printer ports, are a type of interface found on computers (personal and otherwise) for connecting peripherals. In computing, a parallel port is a parallel communication physical interface. Parallel ports were common in the 1980s and '90s (mostly conforming to industry standard IEEE 1284) but are now being replaced by USBs and other ports. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Performance | |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 128 MB |
| Flash memory | 256 MB |
| Built-in barcodes | 2D, CODABAR (NW-7), Code 11, Code 128 (A/B/C), Code 39, Code 49, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, Industrial 2/5, Interleaved 2/5, MaxiCode, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Built-in RFID module |
|
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 4.4 - 41 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 193 mm |
| Depth The distance from the front to the back of something. | 254 mm |
| Height The measurement of the product from head to foot or from base to top. | 191 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.2 kg |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| SKU | 500189 |
| MPN | ZD50042-T1E2R2FZ |
| Brand | Zebra |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Hardware Warranty |
| Warranty Contact | https://www.zebra.com/ |
