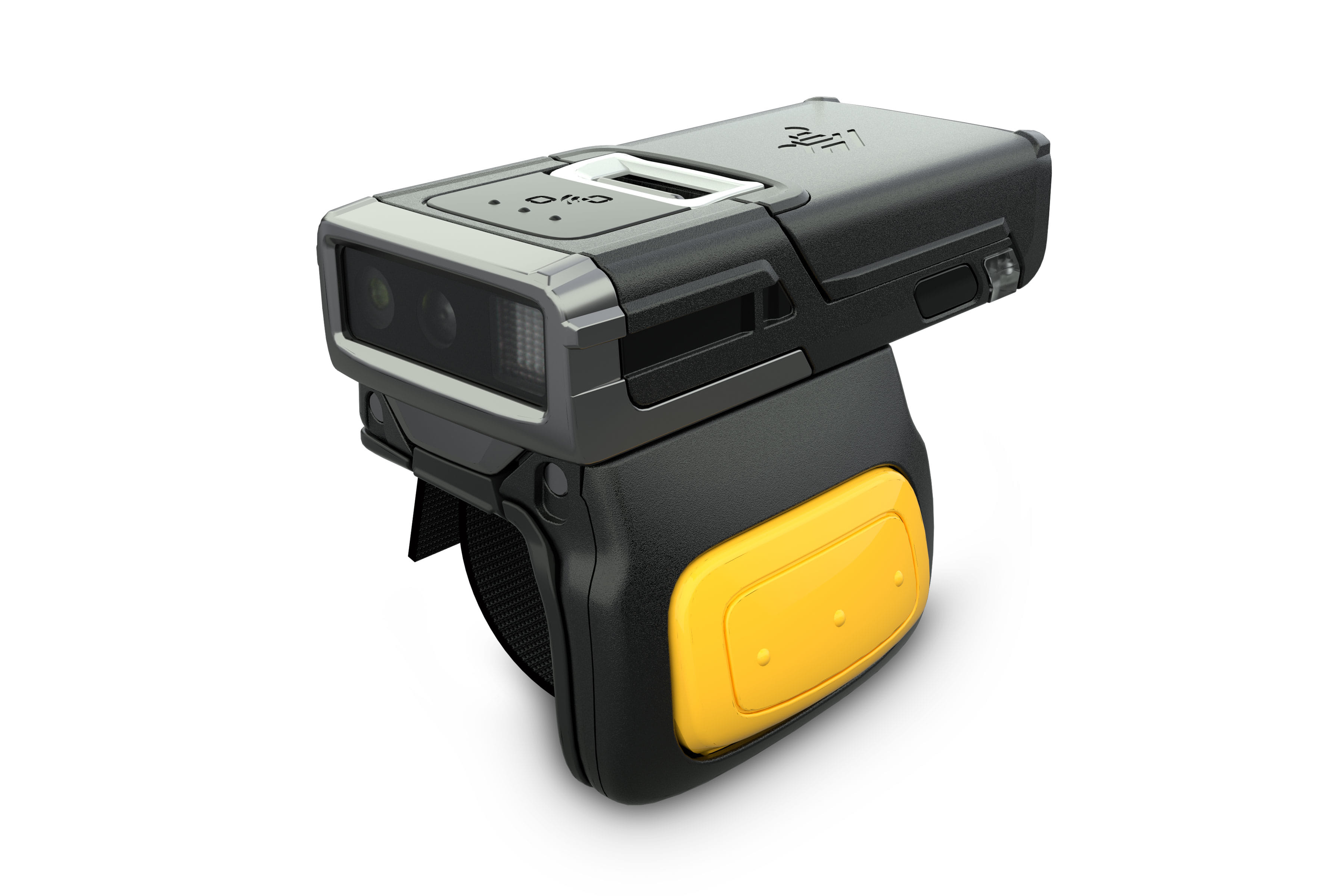

Zebra RS5100, Wearable bar code reader, 1D/2D, Laser, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, UPC A, UPC E, Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417,..., 1280 x 960 pixels
The Go Everywhere Wearable Scanner Built for the Enterprise.
Today's workers have high expectations for wearable devices a modern design, a minimal footprint, and so easy to use that virtually no training is required. Your business requires a design that's at home in both customer facing areas and the warehouse, multiple wearable options for maximum use case flexibility, a rugged design to ensure a long lifecycle with a low Total Cost of Ownership (TCO), scanning options that match the needs of your environment, plus backroom accessories that reduce management time and cost. Now, you can have it all with the RS5100 Bluetooth Wearable Scanner.
Five Interchangeable Wearing Styles.
Regardless of hand size or use cases, there's a wearable option that will provide all day comfort. The new Enterprise Hand Mount offers maximum flexibility a range of sizes for right and left hands with an adjustable scanner position and aiming angle. Wear it like a ring on a single finger, with multiple options for trigger placement. Wear it on a belt or around the neck with the retractable lanyard or on a back of hand mount designed to reach into small spaces.
Wireless and Practically Weightless.
At just over two ounces and two cubic inches, your workers will barely feel the RS5100, virtually eliminating hand fatigue. And Bluetooth provides freedom from cords there are no cables to the host device for workers to manage, improving ergonomics and the user experience.
A Rugged Design with World class Scanning.
The best in class rugged design can handle drops, bumps and even a high pressure hose down and the trigger is rated for millions of presses. Two scan engine options instantly capture virtually any barcode in practically any condition. And the wider field of view makes barcode capture even easier.
Today's workers have high expectations for wearable devices a modern design, a minimal footprint, and so easy to use that virtually no training is required. Your business requires a design that's at home in both customer facing areas and the warehouse, multiple wearable options for maximum use case flexibility, a rugged design to ensure a long lifecycle with a low Total Cost of Ownership (TCO), scanning options that match the needs of your environment, plus backroom accessories that reduce management time and cost. Now, you can have it all with the RS5100 Bluetooth Wearable Scanner.
Five Interchangeable Wearing Styles.
Regardless of hand size or use cases, there's a wearable option that will provide all day comfort. The new Enterprise Hand Mount offers maximum flexibility a range of sizes for right and left hands with an adjustable scanner position and aiming angle. Wear it like a ring on a single finger, with multiple options for trigger placement. Wear it on a belt or around the neck with the retractable lanyard or on a back of hand mount designed to reach into small spaces.
Wireless and Practically Weightless.
At just over two ounces and two cubic inches, your workers will barely feel the RS5100, virtually eliminating hand fatigue. And Bluetooth provides freedom from cords there are no cables to the host device for workers to manage, improving ergonomics and the user experience.
A Rugged Design with World class Scanning.
The best in class rugged design can handle drops, bumps and even a high pressure hose down and the trigger is rated for millions of presses. Two scan engine options instantly capture virtually any barcode in practically any condition. And the wider field of view makes barcode capture even easier.
| Scanning | |
| Type Characteristics of the device. | Wearable bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Laser |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Light levels (direct sunlight) | 0 - 107639 lx |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 655 nm |
| Tilt reading angle | -60 - 60° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | 0 - 360° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Bluetooth |
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.2 |
| Bluetooth Low Energy (BLE) |
|
| Near Field Communication (NFC) |
|
| Performance | |
| LED indicators |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power source type What the power source is. | Battery |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | Built-in battery |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 480 mAh |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 28 mm |
| Depth The distance from the front to the back of something. | 21 mm |
| Height The measurement of the product from head to foot or from base to top. | 61 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 70 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| SKU | 738041 |
| MPN | RS51C0-TBSNWR |
| Brand | Zebra |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.zebra.com/ |
