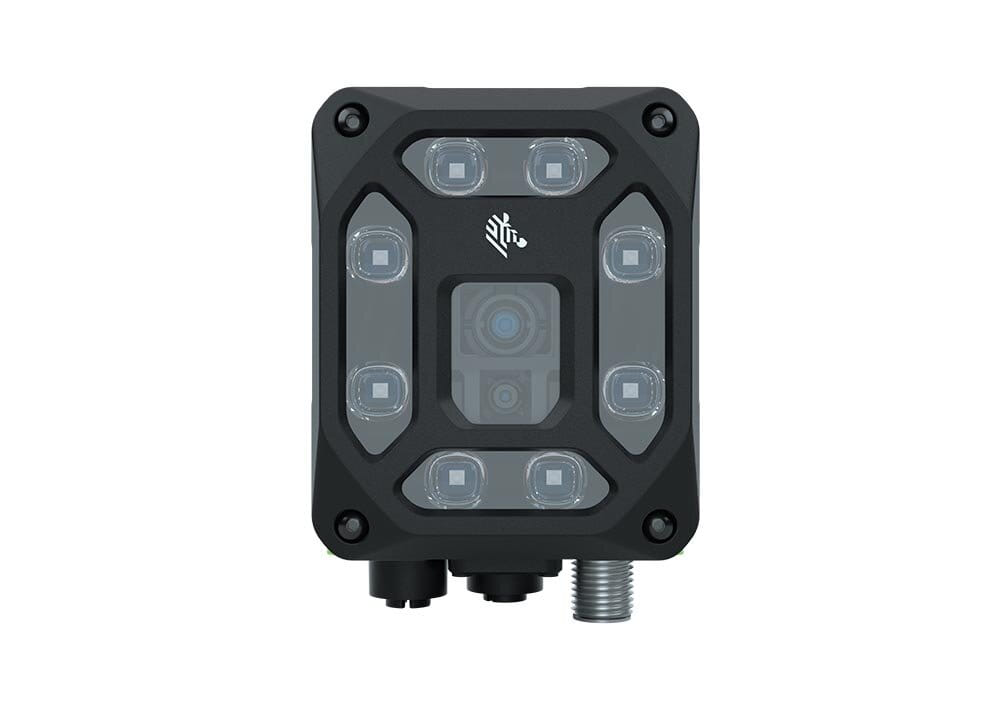

Zebra FS40, Fixed bar code reader, 1D/2D, CMOS, Codabar, Code 128, Code 93, U.P.C., Aztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, Wired
The Zebra FS40 is a fixed industrial scanner. This industrial scanner is made for automatically reading data on parts, products or packaging moving through a production line at high speed, or in warehousing and fulfillment processes.
Fixed scanner
Deploy the FS40 for tracking and tracing all items in your production or distribution environment in real time. Read up to 16 different images simultaneously for extremely fast data processing Customize the FS40 to your specific needs by choosing from flexible options such as decode range, lighting, connectivity, power and more. And you can add advanced features with simple software upgrades.
The scanner comes with comprehensive control software that allows you to easily set up, deploy and operate all types of fixed scanners from Zebra. The intuitive interface lets both experienced and novice users navigate smoothly, reducing training and implementation time.
The Zebra FS40 is widely used in production environments for scanning at conveyor belts.
Overhead scanning with the Zebra FS40
But also in warehouses or distribution centers, the Zebra FS40 is an ideal solution for overhead scanning, for example. Instead of using a wireless barcode scanner or wearables, shop floor employees scan goods by holding the barcode in front of the scanner on their workstation. The streamlined and stationary scanning process achieves a higher degree of accuracy. In addition, speed is increased because users are not constantly picking up and putting away a handheld scanner.
Fixed scanner
Deploy the FS40 for tracking and tracing all items in your production or distribution environment in real time. Read up to 16 different images simultaneously for extremely fast data processing Customize the FS40 to your specific needs by choosing from flexible options such as decode range, lighting, connectivity, power and more. And you can add advanced features with simple software upgrades.
The scanner comes with comprehensive control software that allows you to easily set up, deploy and operate all types of fixed scanners from Zebra. The intuitive interface lets both experienced and novice users navigate smoothly, reducing training and implementation time.
The Zebra FS40 is widely used in production environments for scanning at conveyor belts.
Overhead scanning with the Zebra FS40
But also in warehouses or distribution centers, the Zebra FS40 is an ideal solution for overhead scanning, for example. Instead of using a wireless barcode scanner or wearables, shop floor employees scan goods by holding the barcode in front of the scanner on their workstation. The streamlined and stationary scanning process achieves a higher degree of accuracy. In addition, speed is increased because users are not constantly picking up and putting away a handheld scanner.
| Scanning | |
| Type Characteristics of the device. | Fixed bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Codabar, Code 128, Code 93, U.P.C. |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Data Matrix, Dot Code A, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | RJ-45 |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65, IP67 |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Green |
| Power | |
| Power source type What the power source is. | DC, PoE |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 13 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 64 mm |
| Depth The distance from the front to the back of something. | 91.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 54 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 400 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| SKU | 842671 |
| MPN | FS40-SR20Z4-2C00W |
| Brand | Zebra |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
