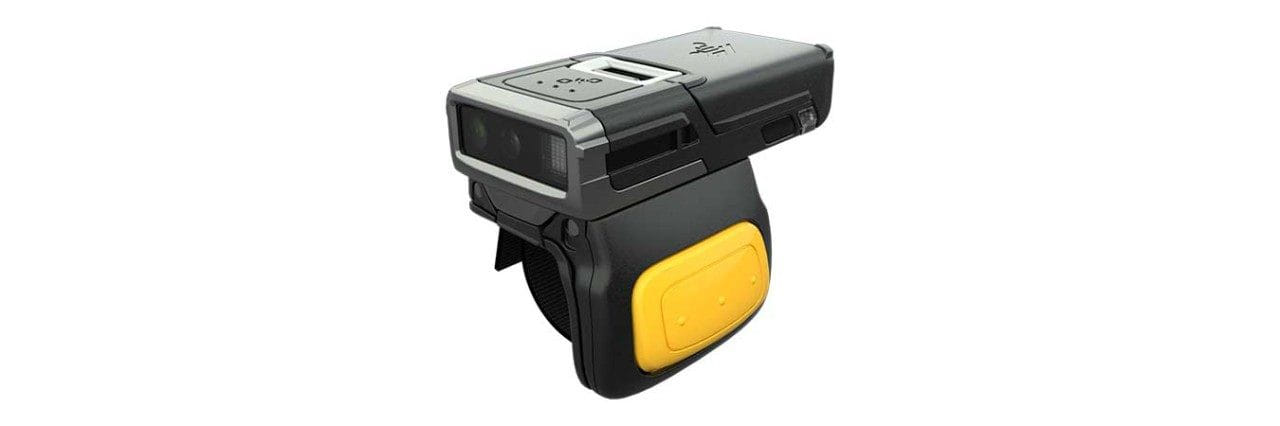

Zebra RS5100, Wearable bar code reader, 1D/2D, LED, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, UPC-A, UPC-E, Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417,..., 1280 x 960 pixels
THE 'GO-EVERYWHERE' FEATHERWEIGHT AND RUGGED RING SCANNER
Finally, there's a ring scanner that's designed for use in customer-facing areas, as well as your warehouse and distribution center - the RS5100 next-generation ring scanner. It's practically weightless, and so small your customers won't even notice it. There's a wearing option that will bring comfort to every worker. Best-in-class scanning enables instant capture of virtually every barcode at twice the range of legacy Bluetooth ring scanners. The rugged design outshines competitive devices. And a long list of features provides unsurpassed versatility and flexibility.
SUPERIOR ERGONOMICS FOR SUPERIOR COMFORT
At just over two ounces and two cubic inches, it's practically weightless (about 1/2 the size and weight of the legacy RS507x ring scanner). Wear it on a finger, the back of a hand or on a lanyard. The single-sided trigger model accommodates gloves; the double trigger model lets workers switch hands on the fly. And the top-mounted trigger on both models allows rotation of the RS5100 to the side of a finger for near-zero protrusion.
INDUSTRY-LEADING RUGGED DESIGN
You get a best-in-class rugged design with a drop, tumble and IP sealing specification - so you can count on reliable operation despite drops, bumps, dust and even a high-pressure hose down. The long-life trigger handles millions of actuations. And the RS5100 is built to handle the high levels of electrostatic discharge common with use on concrete flooring.
BEST-IN-CLASS SCANNING
Two scan engine options allow you to choose the imager that best matches your scanning and aimer requirements - LED or laser. Both imager engines deliver first time capture of even damaged, dirty and poorly printed 1D/2D barcodes through PRZM Intelligent Imaging, a megapixel sensor and superior algorithms - plus a wide field of view for easy capture of large barcodes. In addition, the two imagers can scan barcodes twice the distance as the legacy RS507x ring scanner.
Finally, there's a ring scanner that's designed for use in customer-facing areas, as well as your warehouse and distribution center - the RS5100 next-generation ring scanner. It's practically weightless, and so small your customers won't even notice it. There's a wearing option that will bring comfort to every worker. Best-in-class scanning enables instant capture of virtually every barcode at twice the range of legacy Bluetooth ring scanners. The rugged design outshines competitive devices. And a long list of features provides unsurpassed versatility and flexibility.
SUPERIOR ERGONOMICS FOR SUPERIOR COMFORT
At just over two ounces and two cubic inches, it's practically weightless (about 1/2 the size and weight of the legacy RS507x ring scanner). Wear it on a finger, the back of a hand or on a lanyard. The single-sided trigger model accommodates gloves; the double trigger model lets workers switch hands on the fly. And the top-mounted trigger on both models allows rotation of the RS5100 to the side of a finger for near-zero protrusion.
INDUSTRY-LEADING RUGGED DESIGN
You get a best-in-class rugged design with a drop, tumble and IP sealing specification - so you can count on reliable operation despite drops, bumps, dust and even a high-pressure hose down. The long-life trigger handles millions of actuations. And the RS5100 is built to handle the high levels of electrostatic discharge common with use on concrete flooring.
BEST-IN-CLASS SCANNING
Two scan engine options allow you to choose the imager that best matches your scanning and aimer requirements - LED or laser. Both imager engines deliver first time capture of even damaged, dirty and poorly printed 1D/2D barcodes through PRZM Intelligent Imaging, a megapixel sensor and superior algorithms - plus a wide field of view for easy capture of large barcodes. In addition, the two imagers can scan barcodes twice the distance as the legacy RS507x ring scanner.
| Scanning | |
| Type Characteristics of the device. | Wearable bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | LED |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, UPC-A, UPC-E |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Light levels (direct sunlight) | 0 - 107639 lx |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 665 nm |
| Tilt reading angle | -60 - 60° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | 0 - 360° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Bluetooth |
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 4.0 |
| Bluetooth Low Energy (BLE) |
|
| Near Field Communication (NFC) |
|
| Performance | |
| LED indicators |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Power | |
| Power source type What the power source is. | Battery |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | Built-in battery |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 480 mAh |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| SKU | 785834 |
| MPN | RS51B0-TBSNWR04 |
| Brand | Zebra |
| Product Condition | Brand New/Unused |
| Product Use | General |
