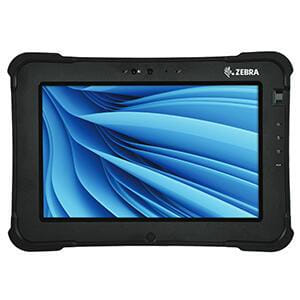

Zebra L10ax XSlate 10.1" 8G/128G SmartCard Reader Tablet

Display
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	25.6 cm (10.1")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	1920 x 1200 pixels
Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.	1000 cd/m²
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	WUXGA
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:10

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i5
Processor generation	11th gen Intel® Core™ i5
Processor model The model number for the processor in a computer.	i5-1135G7
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	2.4 GHz
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.2 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Configurable TDP-down frequency	0.9 GHz

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	8 GB

Storage
Internal storage capacity The amount e.g of data which can be stored inside the device.	128 GB
Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards.
Compatible memory cards Types of memory cards which can be used with this product.	MicroSDXC
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD

Graphics
Graphics card family	Intel
Graphics card	Iris Xe Graphics

Audio
Number of built-in speakers	1
Number of microphones	2

Camera
Rear camera type Indicates the type of the camera at the back of the product, dual or single.	Single camera
Rear camera resolution (numeric) The resolution of the images produced with the rear camera, given in MP (megapixel. 1 MP = 1 million pixels).	13 MP
Front camera Camera at the front of the product.
Front camera resolution (numeric)	2 MP
Windows Hello

Network
Mobile network generation	5G
Mobile network connection
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	5.2
Bluetooth Low Energy (BLE)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6E (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax), 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Near Field Communication (NFC)
Dual SIM support Two SIM cards can be used in the phone.
SIM card type	NanoSIM + eSIM

Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
Headphone connectivity How headphones connect to a device e.g. wirelessly or via a cable and connector.	3.5 mm

Design
Device type Type or category of the device.	Full-size tablet
Housing material What the casing of the product is made of.	Magnesium
Form factor The shape or design of the product.	Slate
Product colour The colour e.g. red, blue, green, black, white.	Black
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".	IP65

Performance
Assisted GPS (A-GPS) Assisted GPS, generally abbreviated as A-GPS, enhances the startup performance of a GPS satellite-based positioning system. It is used extensively with GPS-capable cellular phones as its development was accelerated by the U.S. FCC's 911 mandate making the location of a cell phone available to emergency call dispatchers.
GLONASS
BeiDou
Galileo
Trusted Platform Module (TPM)
Position location Whether the navigation system can locate the phone's position.

Security
Fingerprint reader A scanner used to identify a person's fingerprint for security purposes. After a sample is taken, access to a computer or other system is granted if the fingerprint matches the stored sample. A PIN may also be used with the fingerprint sample.

Software
Platform Description of a technology platform including a processor, chipset, platform software and wired networking capabilities.	Windows
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 10 Pro

Processor special features
Embedded options available
Idle States
Intel Software Guard Extensions (Intel SGX)
Intel Stable Image Platform Program (SIPP)
Intel Trusted Execution Technology
Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other.
Intel VT-x with Extended Page Tables (EPT)
Intel® vPro™ Platform Eligibility

Weight & dimensions
Width The measurement or extent of something from side to side.	280.8 mm
Depth The distance from the front to the back of something.	22 mm
Height The measurement of the product from head to foot or from base to top.	195.2 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.3 kg

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-20 - 60 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-30 - 70 °C
Operating relative humidity (H-H)	3 - 95%

Other features
Harmonized System (HS) code	84713000
