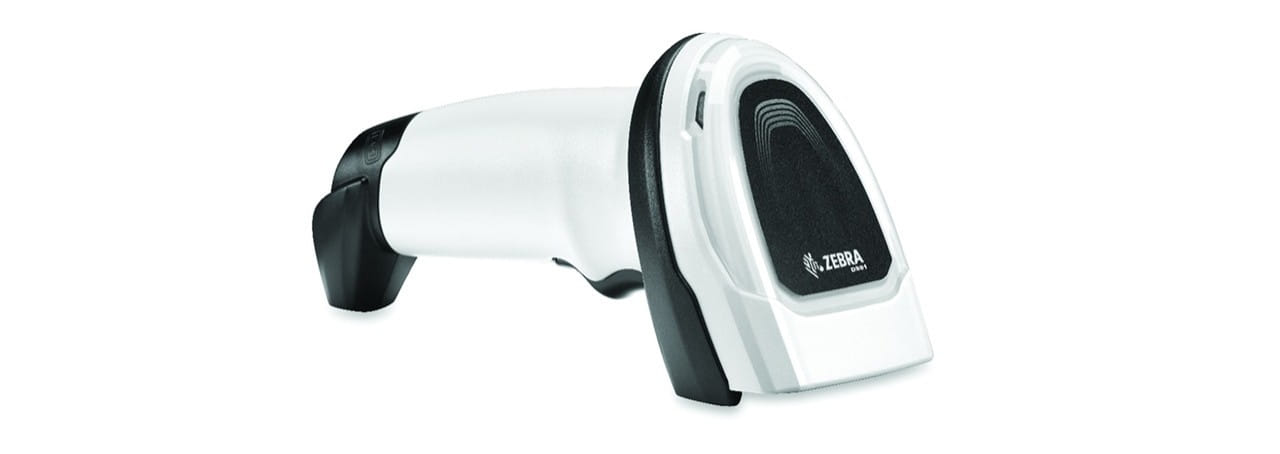

Zebra DS8178, Handheld bar code reader, 1D/2D, Photo diode, 61 cm, 617 nm, 0 360 Degree
Zebra DS8178, Handheld bar code reader, 1D/2D, Photo diode, 61 cm, 617 nm, 0 360 Deg
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Optical sensor resolution | 1280 pixels |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | Photo diode |
| Working distance | 61 cm |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 617 nm |
| Tilt reading angle | 0 - 360° |
| Pitch reading angle | 0 - 60° |
| Yaw reading angle | 0 - 60° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired & Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | USB, RS-232, Bluetooth |
| Wireless range | 100 m |
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 4.0 |
| PC connection | RS-232/USB |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP42 |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Power | |
| Power source type What the power source is. | Battery |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium-Ion (Li-Ion) |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 2500 mAh |
| Battery life The amount of time that the battery will last for. | 83 h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 66 mm |
| Depth The distance from the front to the back of something. | 107 mm |
| Height The measurement of the product from head to foot or from base to top. | 168 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 235.3 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| SKU | 726977 |
| MPN | DS8178-DL6U2100P2W |
| Brand | Zebra |
| Product Condition | Brand New/Unused |
| Product Use | General |
