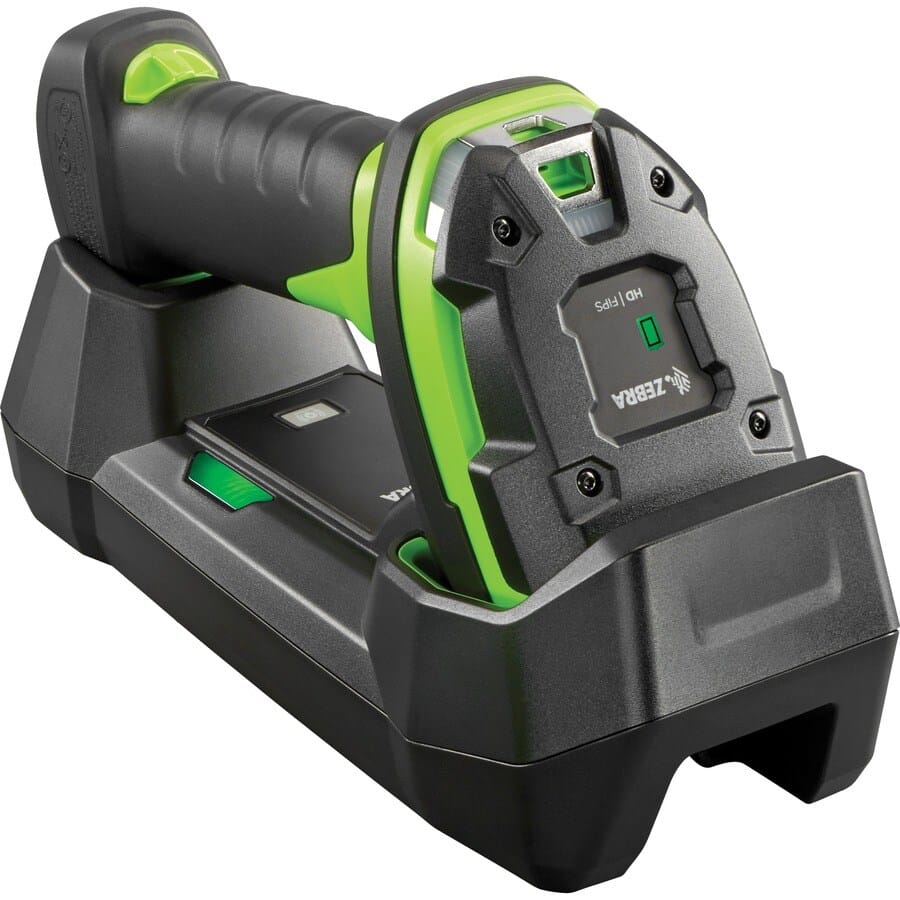

Zebra DS3678-ER Handheld Laser Barcode Reader 1D/2D Black/Green

Item No:
492002
MPN:
DS3678-ER3U42A2SVW
$2,033.87
Payment options

This product is currently not available!

Shipping Information
  • Unavailable for shipping
  • This product is not currently available for purchase
Store Availability
  • Unavailable at Bankstown Store
  • Unavailable at Castle Hill Store
  • Unavailable at Northmead Store
Zebra DS3678-ER, Handheld bar code reader, 1D/2D, Laser, Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C., Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417,..., 655 nm

Unstoppable performance for extended range 1D/2D barcode scanning

Every day, workers in your warehouse scan thousands of barcodes to ensure order accuracy and on-time delivery. Their productivity depends on the quality of the scanner you put in their hands. If your workers need to capture 1D and 2D barcodes near and far, with the corded DS3608-ER and cordless DS3678-ER scanner, you can give them the best - unmatched rugged design, unmatched scanning performance and unrivaled manageability. The advanced imager delivers lightning-fast capture of any 1D or 2D barcode displayed on a screen or printed on a label in virtually any condition, nearer and farther than any scanner in this class - from 3 in./7.6 cm to as far as 70 ft./21.4 m away. The ultra-rugged design is practically indestructible - ideal for punishing environments. The DS3608-ER/DS3678-ER couldn't be easier and less time-consuming to deploy and manage. And when it comes to cordless technology, the DS3678-ER is loaded with Zebra-only features that put it in a class of its own. The DS3608-ER/DS3678-ER - the unstoppable performance you need to maximize workforce productivity and throughput in your operations.

Superior scanning range
The advanced imager reads 1D and 2D barcodes printed on a label up to 60 percent closer and 35 percent farther than similar models in this class, with an extraordinary scanning range from 3 in. to 70 ft. (7.6 cm to 21.4 m). Now, one scanner can easily read barcodes on a picklist in hand and on the uppermost shelves of your warehouse racks, as well as extra-wide codes just a hands-length away - even if they are under shrinkwrap, damaged, dirty or poorly printed. The result? Workers can capture barcodes as fast as they can pull the trigger for first-time every time scanning - and extraordinary productivity.

Ultra-rugged - the most indestructible design in its class
The DS3608-ER/DS3678-ER is our most rugged scanner yet, with the highest drop, tumble and sealing specification in its class. The DS3608-ER/DS3678-ER is built to survive an 8 ft./2.4 m drop to concrete - 23 percent more durable than any other scanner in this class. The DS3608-ER/DS3678-ER operates reliably after 5,000 tumbles, simulating the real-world tumbling that occurs with a drop. Both models are dust proof, spray proof and waterproof to IP67 - they can be sprayed down with jetting water and even submersed in water.

Easy management with our complimentary industry-best tools
Remotely configure scanners, upgrade firmware, format data properly for your back end and monitor PowerPrecision+ battery statistics and more with 123Scan and Scanner Management Service (SMS).

Scanning
Type Characteristics of the device. Handheld bar code reader
Optical sensor resolution 1280 pixels
Scanner type Indicates the type of scanner this product is. 1D/2D
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. Laser
Linear (1D) barcodes supported The product can read linear (1D) barcordes. Codabar,Code 11,Code 128,Code 39,Code 93,GS1-128 (UCC/EAN-128),MSI,Plessey,U.P.C.
2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. 655 nm
Tilt reading angle -65 - 65°
Pitch reading angle -65 - 65°
Yaw reading angle -45 - 45°
Ports & interfaces
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. Wired & Wireless
Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. RS-232, USB, Keyboard wedge
Wireless range 100 m
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). 4.0
Bluetooth Low Energy (BLE)
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Performance
International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". IP67
Protection features Physical effects from which the product is protected e.g. water resistant, crash proof. Dust resistant, Shock resistant, Water resistant
LED indicators
Product colour The colour e.g. red, blue, green, black, white. Black, Green
Programming function
Power
Power source type What the power source is. Battery
Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). Lithium-Ion (Li-Ion)
Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. 3100 mAh
Number of reads per charge 70000
Weight & dimensions
Width The measurement or extent of something from side to side. 142 mm
Depth The distance from the front to the back of something. 76 mm
Height The measurement of the product from head to foot or from base to top. 185 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. 436 g
Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. -20 - 50 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. -40 - 70 °C
Operating relative humidity (H-H) 5 - 95%
Technical details
Sustainability certificates RoHS
More Information
SKU 492002
MPN DS3678-ER3U42A2SVW
Brand Zebra
Product Condition Brand New/Unused
Product Use General
Stock Availability Available for Shipping
