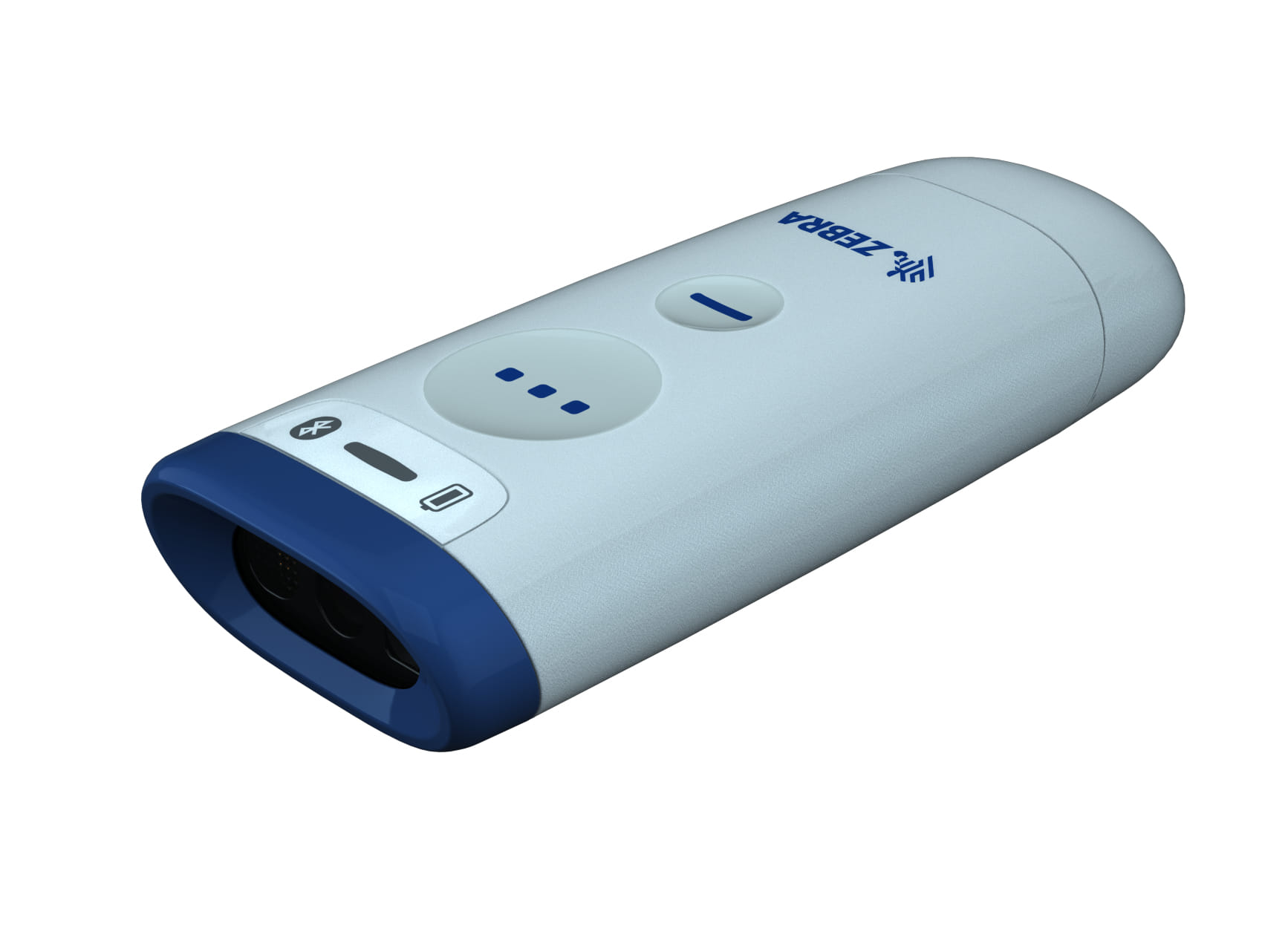

Zebra CS60 HC, Handheld bar code reader, 1D/2D, LED, Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C., Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417,..., 1280 x 960 pixels
ULTRA VERSATILE WITH A FIRST OF ITS KIND CONVERTIBLE DESIGN
The ultra versatile CS60 HC Healthcare Series Companion Scanner is designed specifically for healthcare and adapts to any clinician workflow. Its groundbreaking design easily converts between corded and cordless operation, handheld and hands free, as your needs change for superior investment protection. And it features a purpose built housing that helps offer maximum protection against the spread of bacteria, including a crevice free surface that helps eliminate places where germs can hide.
ADAPTS TO ANY CLINICIAN WORKFLOW
As a cordless companion scanner, the CS60 HC is small enough to meet any nurse carry workflow. And as a corded scanner, the CS60 HC provides compact scanning for the pharmacy counter, lab station and more. Whether you purchase a corded or cordless model up front, you can change modes at any time.
CUTTING EDGE CLINICAL MOBILITY
With Qi inductive charging, split second NFC tap to pair, Bluetooth 5.0 with Wi Fi friendly mode, an 18 hour battery and Virtual Tether anti loss functionality, the cordless CS60 HC is pocketable and wearable when clinician mobility is essential.
PURPOSE BUILT FOR HEALTHCARE
Thanks to a safe LED aimer, night mode and an IP65 sealed disinfectant ready housing with a crevice free surface that helps eliminate places where germs can hide, the CS60 HC is designed to be used throughout the whole hospital including the NICU, labour and delivery and mother baby units.
The ultra versatile CS60 HC Healthcare Series Companion Scanner is designed specifically for healthcare and adapts to any clinician workflow. Its groundbreaking design easily converts between corded and cordless operation, handheld and hands free, as your needs change for superior investment protection. And it features a purpose built housing that helps offer maximum protection against the spread of bacteria, including a crevice free surface that helps eliminate places where germs can hide.
ADAPTS TO ANY CLINICIAN WORKFLOW
As a cordless companion scanner, the CS60 HC is small enough to meet any nurse carry workflow. And as a corded scanner, the CS60 HC provides compact scanning for the pharmacy counter, lab station and more. Whether you purchase a corded or cordless model up front, you can change modes at any time.
CUTTING EDGE CLINICAL MOBILITY
With Qi inductive charging, split second NFC tap to pair, Bluetooth 5.0 with Wi Fi friendly mode, an 18 hour battery and Virtual Tether anti loss functionality, the cordless CS60 HC is pocketable and wearable when clinician mobility is essential.
PURPOSE BUILT FOR HEALTHCARE
Thanks to a safe LED aimer, night mode and an IP65 sealed disinfectant ready housing with a crevice free surface that helps eliminate places where germs can hide, the CS60 HC is designed to be used throughout the whole hospital including the NICU, labour and delivery and mother baby units.
| Scanning | |
| Type Characteristics of the device. | Handheld bar code reader |
| Scanner type Indicates the type of scanner this product is. | 1D/2D |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | LED |
| Linear (1D) barcodes supported The product can read linear (1D) barcordes. | Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, Plessey, U.P.C. |
| 2D (matrix & stacked) barcodes supported The product can read matrix (2D) barcordes. | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
| Light levels (direct sunlight) | 0 - 108000 lx |
| Wavelength The distance over which a wave repeats itself. The wavelength determines the characteristics of the wave e.g. red light has a different wavelength to blue light. | 525 nm |
| Tilt reading angle | -60 - 60° |
| Pitch reading angle | -60 - 60° |
| Yaw reading angle | 0 - 360° |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wireless |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | Bluetooth, USB |
| Wireless range | 100 m |
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.0 |
| Bluetooth Low Energy (BLE) |
 |
| Performance | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP65 |
| LED indicators |
|
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Certification | FIPS 140-2 |
| Power | |
| Power source type What the power source is. | AC, Battery, DC, USB |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium Polymer (LiPo) |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | Built-in battery |
| Battery capacity A measure of the charge stored by the battery. Determined by the mass of active material contained in the battery. | 735 mAh |
| Number of reads per charge | 13000 |
| Battery life The amount of time that the battery will last for. | 18 h |
| Charging time The amount of time needed to charge the product. | 6 h |
| Power consumption | 400 mA |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 46 mm |
| Depth The distance from the front to the back of something. | 109 mm |
| Height The measurement of the product from head to foot or from base to top. | 23 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 87 g |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Technical details | |
| Sustainability certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
| SKU | 733082 |
| MPN | CS6080-HC4F00BVZWW |
| Brand | Zebra |
| Product Condition | Brand New/Unused |
| Product Use | General |
