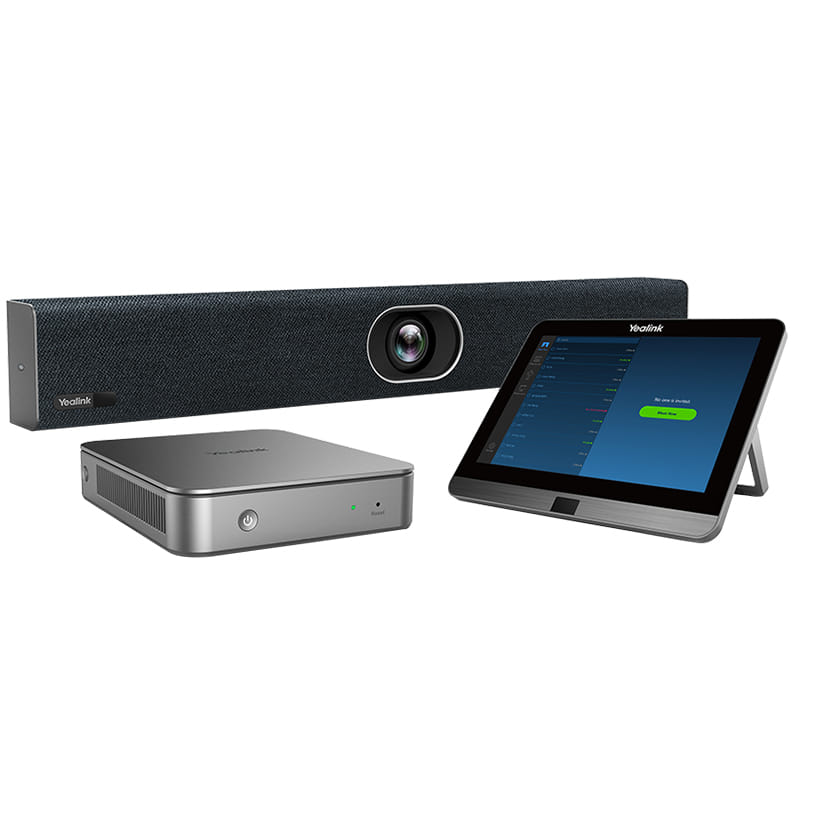

Yealink ZVC400, Group video conferencing system, CMOS, Full HD, 30 fps, 133 Deg, Black, Grey
Yealink ZVC400 Zoom Rooms system is a video solution designed for immersive (intelligent) Zoom meetings in smallmeeting room. ZVC400 includes everything you need to seamlessly and smartly meet, connect and collaborate withinternal and external users. Together with 8 MEMS microphone arrays and 133 Deg field of view, its AI technologies, including face detection, sound localization, and speaker tracking and so on, provide users with high quality call experiencein full duplex mode. Only including a high performance MCore, a touch panel MTouch II, and a USB video bar UVC40,ZVC400 is the optimum choice for small meeting rooms with easy deployment.
Smart Video Conferencing with AI Technology
Featuring AI technology, including Auto Framing and Speaker Tracking, UVC40 not only supports framing the groups automaticallyaccording to the number and the position of the participants, but also automatically zoom in the speaker without adjusting the camera,making the participants more focus on the conference.
Precise Sound Localization, Full Duplex Experience
8 MEMS microphone arrays make UVC40 have stronger ability of noise proof and dereverberation. The new upgraded beamformingalgorithm, together with technology of processing on acoustic echo cancellation and the dereverberation, brings high quality full duplexcall sand realizes more precise voice pickup.
Secure Conference with Electric Lens Cap
The camera electric lens cap automatically opens when the video conference starts and remains closed when not having video conferences, securing your conference privacy.
Content Sharing in Real Time
ZVC400 allows participant to quickly start content sharing with multiple presenting options, including direct sharing, wired presentation,and WPP20 wireless presentation. The wired content sharing is also available by connecting to the USB C port or HDMI port.
Simple to Deploy, Easy to Use
With the VCH port, MCore is specially designed for the video meeting rooms that the deployment can be easily extended. At the sametime, its all in one design with the feature of cable management ensure the stability of the wire connection, and the most appropriatedeployment can be achieved according to the layout of the meeting room. One CAT5e is totally enough to connect the TV area and theconference table area and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifying the deployment but also effectively reducing deployment costs.
Remote Device Management
This solution supports Yealink Device Management Platform/Cloud Service, you can flawlessly manage, monitor, configure, update anddiagnose all Yealink audio and video devices peripherals on this platform remotely.
Smart Video Conferencing with AI Technology
Featuring AI technology, including Auto Framing and Speaker Tracking, UVC40 not only supports framing the groups automaticallyaccording to the number and the position of the participants, but also automatically zoom in the speaker without adjusting the camera,making the participants more focus on the conference.
Precise Sound Localization, Full Duplex Experience
8 MEMS microphone arrays make UVC40 have stronger ability of noise proof and dereverberation. The new upgraded beamformingalgorithm, together with technology of processing on acoustic echo cancellation and the dereverberation, brings high quality full duplexcall sand realizes more precise voice pickup.
Secure Conference with Electric Lens Cap
The camera electric lens cap automatically opens when the video conference starts and remains closed when not having video conferences, securing your conference privacy.
Content Sharing in Real Time
ZVC400 allows participant to quickly start content sharing with multiple presenting options, including direct sharing, wired presentation,and WPP20 wireless presentation. The wired content sharing is also available by connecting to the USB C port or HDMI port.
Simple to Deploy, Easy to Use
With the VCH port, MCore is specially designed for the video meeting rooms that the deployment can be easily extended. At the sametime, its all in one design with the feature of cable management ensure the stability of the wire connection, and the most appropriatedeployment can be achieved according to the layout of the meeting room. One CAT5e is totally enough to connect the TV area and theconference table area and to complete the data transmission and power supply, no additional power supply or extension cable is needed, which not only simplifying the deployment but also effectively reducing deployment costs.
Remote Device Management
This solution supports Yealink Device Management Platform/Cloud Service, you can flawlessly manage, monitor, configure, update anddiagnose all Yealink audio and video devices peripherals on this platform remotely.
| Performance | |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Auto framing |
|
| Product type The sub-category of the product. | Group video conferencing system |
| PTZ control |
|
| Video | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 30 fps |
| Audio | |
| Audio system full duplex |
|
| Echo cancellation |
|
| Memory | |
| Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware. | 8 MB |
| Storage media type Type of storage medium, like flash, hard disk drive, etc. | SSD |
| Total storage capacity The total amount of data that can be stored on the device. | 128 GB |
| Ports & interfaces | |
| HDMI output ports quantity | 2 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Line-in |
|
| Line-out |
|
| Reset slot |
|
| Camera | |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 20 MP |
| Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device. | CMOS |
| Field of view (FOV) angle | 133° |
| Diagonal field of view | 133° |
| Display | |
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Display The description of display that can includes display type, resolution, size etc. | IPS |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 20.3 cm (8") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 800 pixels |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive. | Capacitive |
| Microphone | |
| Number of microphones | 8 |
| Features | |
| Motion sensor Device that detects moving objects, particularly people. A motion detector is often integrated as a component of a system that automatically performs a task or alerts a user of motion in an area. Motion detectors form a vital component of security, automated lighting control, home control, energy efficiency, and other useful systems. |
|
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Computer system | |
| Computer system type | mini PC |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i5 |
| Weight & dimensions | |
| Interface module dimensions (W x D x H) | 168 x 197 x 39 mm |
| Interface module weight | 1.35 kg |
| Camera dimensions (WxDxH) | 600 x 68 x 82 mm |
| Camera weight | 2.56 kg |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 6.4 kg |
| Package width The distance from one side of the packaging to the other. | 685 mm |
| Package depth The distance from the front to the back of the packaging. | 356 mm |
| Package height The distance from the top to the bottom of the packaging. | 285 mm |
| Package weight Weight of the packaged product. | 7.6 kg |
| Packaging content | |
| Cables included | AC, HDMI, USB |
| SKU | 704516 |
| MPN | ZVC400-C3-000 |
| Brand | Yealink |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.yealink.com/ |
