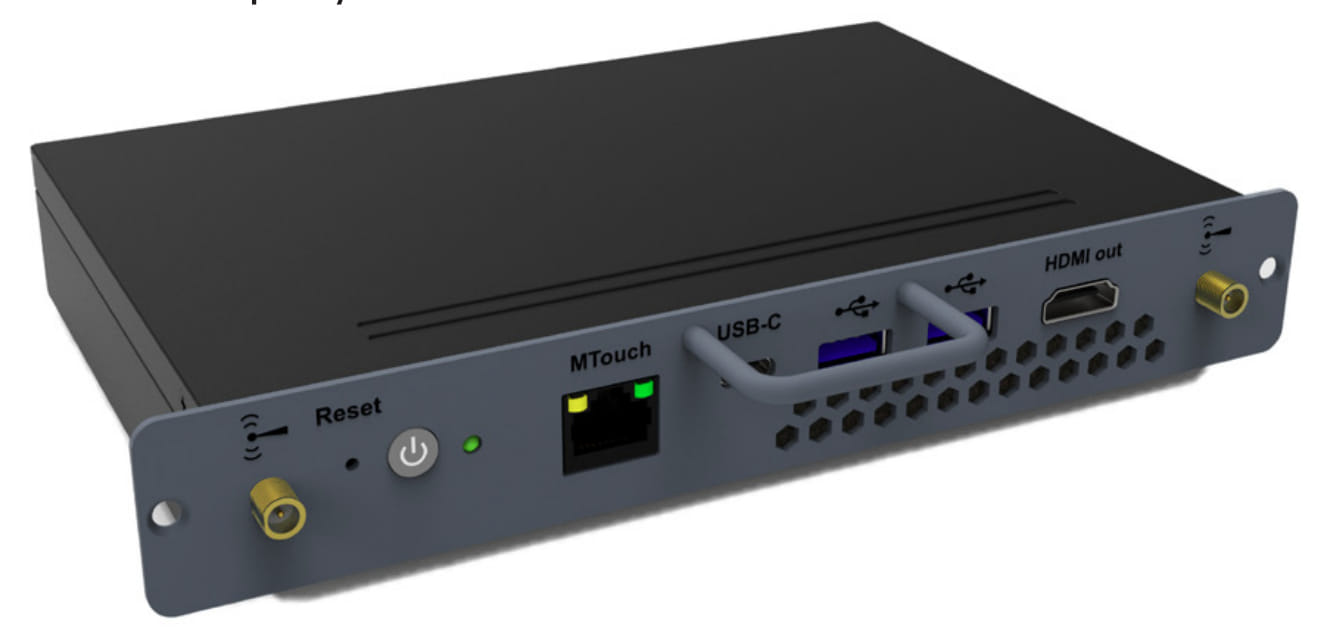

Yealink Windows OPS for MeetingBoard Series, Intel Core i5, Intel, i5-1135G7, 11th gen Intel Core i5, 4.2 GHz, BGA 1449
Windows OPS for MeetingBoard Series
Modular Compute Solution for Interactive Whiteboards Collaboration
Yealink MCore-OPS is a modular compute solution specially designed for interactive whiteboards. Intel's 11th generation Core i5 processor brings you more powerful computing performance and more efficient graphics processing power, allowing you to install and run more applications at the same time without lag; MCore-OPS supports TPM 2.0 to protect your data security; in addition, MCore-OPS supports CEC to automatically wake up the screen. No more external equipment is required, and the sophisticated structural design will greatly facilitate your installation and deployment.
Modular Compute Solution for Interactive Whiteboards Collaboration
Yealink MCore-OPS is a modular compute solution specially designed for interactive whiteboards. Intel's 11th generation Core i5 processor brings you more powerful computing performance and more efficient graphics processing power, allowing you to install and run more applications at the same time without lag; MCore-OPS supports TPM 2.0 to protect your data security; in addition, MCore-OPS supports CEC to automatically wake up the screen. No more external equipment is required, and the sophisticated structural design will greatly facilitate your installation and deployment.
| Processor | |
| Processor manufacturer The manufacturer that produced the processor. | Intel |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel® Core™ i5 |
| Processor model The model number for the processor in a computer. | i5-1135G7 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 4.2 GHz |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | BGA 1449 |
| Processor cache | 8 MB |
| Processor cache type | Smart Cache |
| System bus rate A bus is a communication system that transfers data between components inside a computer, or between computers. The system bus rate is the speed at which data is transferred in this communication system. | 4 GT/s |
| Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit). | 10 nm |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Configurable TDP-up frequency | 2.4 GHz |
| Configurable TDP-up | 28 W |
| Configurable TDP-down frequency | 0.9 GHz |
| Configurable TDP-down | 12 W |
| Tjunction | 100 °C |
| Memory | |
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| Internal memory type The type of internal memory such as RAM, GDDR5. | DDR4-SDRAM |
| Memory layout (slots x size) The slots and size of the memory for the CPU. | 2 x 4 GB |
| Storage | |
| Total storage capacity The total amount of data that can be stored on the device. | 128 GB |
| Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive). | SSD |
| Graphics | |
| On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
 |
| On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Intel Iris Xe Graphics |
| On-board graphics card dynamic frequency (max) | 1300 MHz |
| Discrete graphics card |
 |
| Network | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 6 (802.11ax) |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Software | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Microsoft Windows 10 IoT Enterprise |
| Operating system architecture The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up. | 64-bit |
| Power | |
| DC input voltage | 12 - 19 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | -10 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 180 mm |
| Depth The distance from the front to the back of something. | 119 mm |
| Height The measurement of the product from head to foot or from base to top. | 30 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 700 g |
| Package width The distance from one side of the packaging to the other. | 267 mm |
| Package depth The distance from the front to the back of the packaging. | 215 mm |
| Package height The distance from the top to the bottom of the packaging. | 65 mm |
| Package weight Weight of the packaged product. | 890 g |
