Yealink W80 DECT IP Multi Cell system, TFTP/FTP/HTTP/HTTPS/RPS, SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS, AES, HTTPS, SHA 256, SHA 384, SHA 512, SRTP, TLS, AGC, AJB, AMR NB, AMR WB, CNG, G.722, G.726, G.729, OPUS, PCMA, PLC, VAD, iLBC, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, 100 entries
Cordless DECT IP Multi Cell System

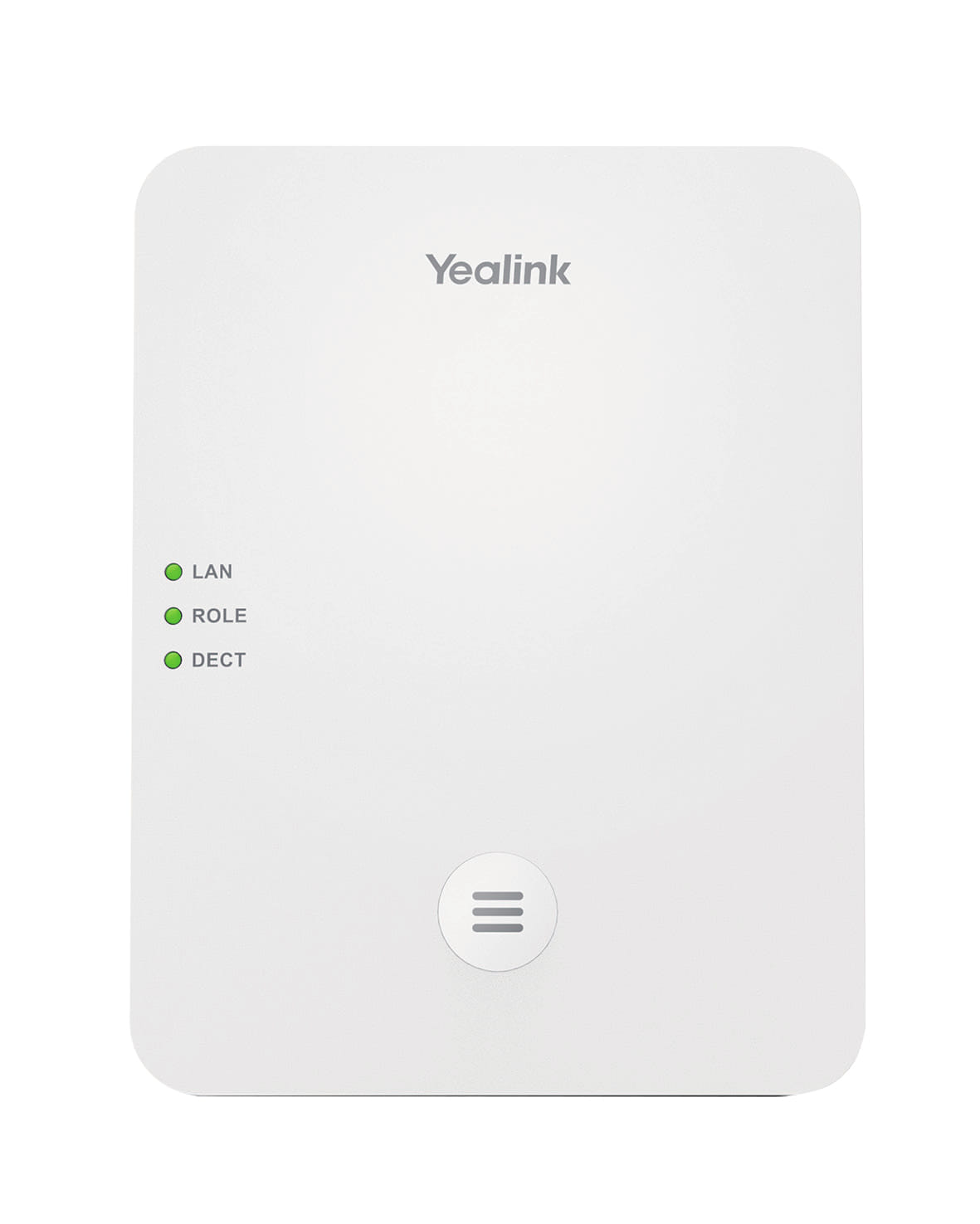

The Yealink W80 DECT IP Multi Cell System, consisting of two elements a base station W80B and a DECT Manager W80DM, is designed to provide the organizations who require wireless coverage with the full ease of deployment. This DECT multi cell system intends to create an extremely scalable and reliable solution for the organizations of any size and any shape. The system supports up to 100 handsets and 100 simultaneous calls, that not only ensures one call in each handset, but also allows you to get rid of the limited wireless coverage of only one base station. Meanwhile, the system can work with Yealink W53H, W56H, CP930W and DD Phone with seamless roaming and handover of the calls, making freely mobile communication in and between each zone achievable. Both W80B and W80DM join the modern, compact design with Yealink HD voice quality, which is wrapped with the full duplex technology and Opus, that setting free your ears and giving you an elaborate audio experience.
Key Features and Benefits
Security & Stability
Based on Yealink DECT technology, W80 DECT IP Multi Cell System provides you with both the stable call and the seamless roaming and handover. Wireless data transmission over the air is ensured by the DECT encryption and the wirelessly eavesdropping on a conversation is not possible either. At the same time, TLS and SRTP play a pivotal role in secure SIP communication. Pack Yealink W80 DECT IP Multi Cell System with the powerful Grayscale Upgrade feature, when you perform upgrade for one handset, other handsets are free from this process and the whole system still runs in safety and stability.
Advanced DECT Contacts
When a call is coming, the receiver can obtain the caller information, including the caller number and caller name, from the phone screen easily and clearly rather than just a row of digits. Better compatibility with several PBX platforms makes the contacts from different platforms reachable on the Yealink W80 DECT IP Multi Cell System, like Xsi directory, XML contacts. Besides, LDAP and Remote Phonebook.
Efficient Provisioning & Unified Management
The W80 DECT IP Multi Cell System inherits the Yealink powerful Auto p mechanism from W60B, that the efficient provisioning and effortless mass deployment can be simply implemented via Yealink
The Yealink W80 DECT IP Multi Cell System, consisting of two elements a base station W80B and a DECT Manager W80DM, is designed to provide the organizations who require wireless coverage with the full ease of deployment. This DECT multi cell system intends to create an extremely scalable and reliable solution for the organizations of any size and any shape. The system supports up to 100 handsets and 100 simultaneous calls, that not only ensures one call in each handset, but also allows you to get rid of the limited wireless coverage of only one base station. Meanwhile, the system can work with Yealink W53H, W56H, CP930W and DD Phone with seamless roaming and handover of the calls, making freely mobile communication in and between each zone achievable. Both W80B and W80DM join the modern, compact design with Yealink HD voice quality, which is wrapped with the full duplex technology and Opus, that setting free your ears and giving you an elaborate audio experience.
Key Features and Benefits
Security & Stability
Based on Yealink DECT technology, W80 DECT IP Multi Cell System provides you with both the stable call and the seamless roaming and handover. Wireless data transmission over the air is ensured by the DECT encryption and the wirelessly eavesdropping on a conversation is not possible either. At the same time, TLS and SRTP play a pivotal role in secure SIP communication. Pack Yealink W80 DECT IP Multi Cell System with the powerful Grayscale Upgrade feature, when you perform upgrade for one handset, other handsets are free from this process and the whole system still runs in safety and stability.
Advanced DECT Contacts
When a call is coming, the receiver can obtain the caller information, including the caller number and caller name, from the phone screen easily and clearly rather than just a row of digits. Better compatibility with several PBX platforms makes the contacts from different platforms reachable on the Yealink W80 DECT IP Multi Cell System, like Xsi directory, XML contacts. Besides, LDAP and Remote Phonebook.
Efficient Provisioning & Unified Management
The W80 DECT IP Multi Cell System inherits the Yealink powerful Auto p mechanism from W60B, that the efficient provisioning and effortless mass deployment can be simply implemented via Yealink
| Performance | |
| Number of handsets supported (max) | 100 |
| Number of carrier frequencies | 2 |
| Number of VoIP accounts | 100 |
| Management protocols | TFTP/FTP/HTTP/HTTPS/RPS |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | SIP v1 (RFC2543), v2 (RFC3261), SNTP/NTP, VLAN (802.1Q and 802.1P), 802.1x, LLDP, STUN, UDP/TCP/TLS |
| Number of bases supported (max) | 30 |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | AES, HTTPS, SHA-256, SHA-384, SHA-512, SRTP, TLS |
| Voice codecs | AGC, AJB, AMR-NB, AMR-WB, CNG, G.722, G.726, G.729, OPUS, PCMA, PLC, VAD, iLBC |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
| Wireless synchronization |
 |
| Hearing aid compatibility |
|
| Dual-Tone Multi-Frequency (DTMF) |
|
| Keypad lock |
|
| XML browser |
|
| IPUI registration |
|
| User access level |
|
| Auto-provision |
|
| Over the Air Updates (OTA) |
|
| Call management | |
| Conference call |
|
| Number of parallel conferences | 3 |
| Phonebook capacity (per handset) | 100 entries |
| Number of simultaneous calls (max) | 100 |
| Number of WB calls per base supported (max) | 8 |
| Number of NB calls per base supported (max) | 8 |
| Number of simultaneous calls per handset | 2 |
| Anonymous call |
|
| Anonymous call rejection |
|
| Call waiting |
|
| Call forwarding |
|
| Caller ID The name and/or number of the caller comes up on screen when they ring the phone. You also send your caller ID when you call someone else unless you choose to deactivate it. |
|
| Remote phonebook |
|
| Call transfer |
|
| Call hold |
|
| Do not disturb function |
|
| Switching between calls |
|
| Mute function |
|
| Speed dialling |
|
| Integrated voicemail |
|
| Redialing |
|
| Message Waiting Indication (MWI) function |
|
| Phonebook search/import/export function |
|
| Call history |
|
| Reset function |
|
| Emergency call |
|
| Shared Call Appearance (SCA) |
|
| System log export |
|
| Antenna | |
| Frequency range (EU) | 1880 - 1900 MHz |
| Frequency range (US) | 1920 - 1930 MHz |
| Maximum indoor range The maximum distance to which the signals are transmitted, when the device is used indoors. | 50 m |
| Maximum outdoor range The maximum distance to which the signals are transmitted, when the device is used outdoors. | 300 m |
| Ports & interfaces | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| LED indicators |
|
| Power | |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Output voltage | 5 V |
| Output current | 1.2 A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 130 x 100 x 25.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.56 kg |
| Package width The distance from one side of the packaging to the other. | 174 mm |
| Package depth The distance from the front to the back of the packaging. | 180 mm |
| Package height The distance from the top to the bottom of the packaging. | 63 mm |
| Logistics data | |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case gross weight | 3.13 kg |
| Master (outer) case length | 375 mm |
| Master (outer) case width | 336 mm |
| Master (outer) case height | 187 mm |
| Harmonized System (HS) code | 85177900 |
| Packaging content | |
| Screws included |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Power adapter included |
|
| SKU | 748700 |
| MPN | 1302013 |
