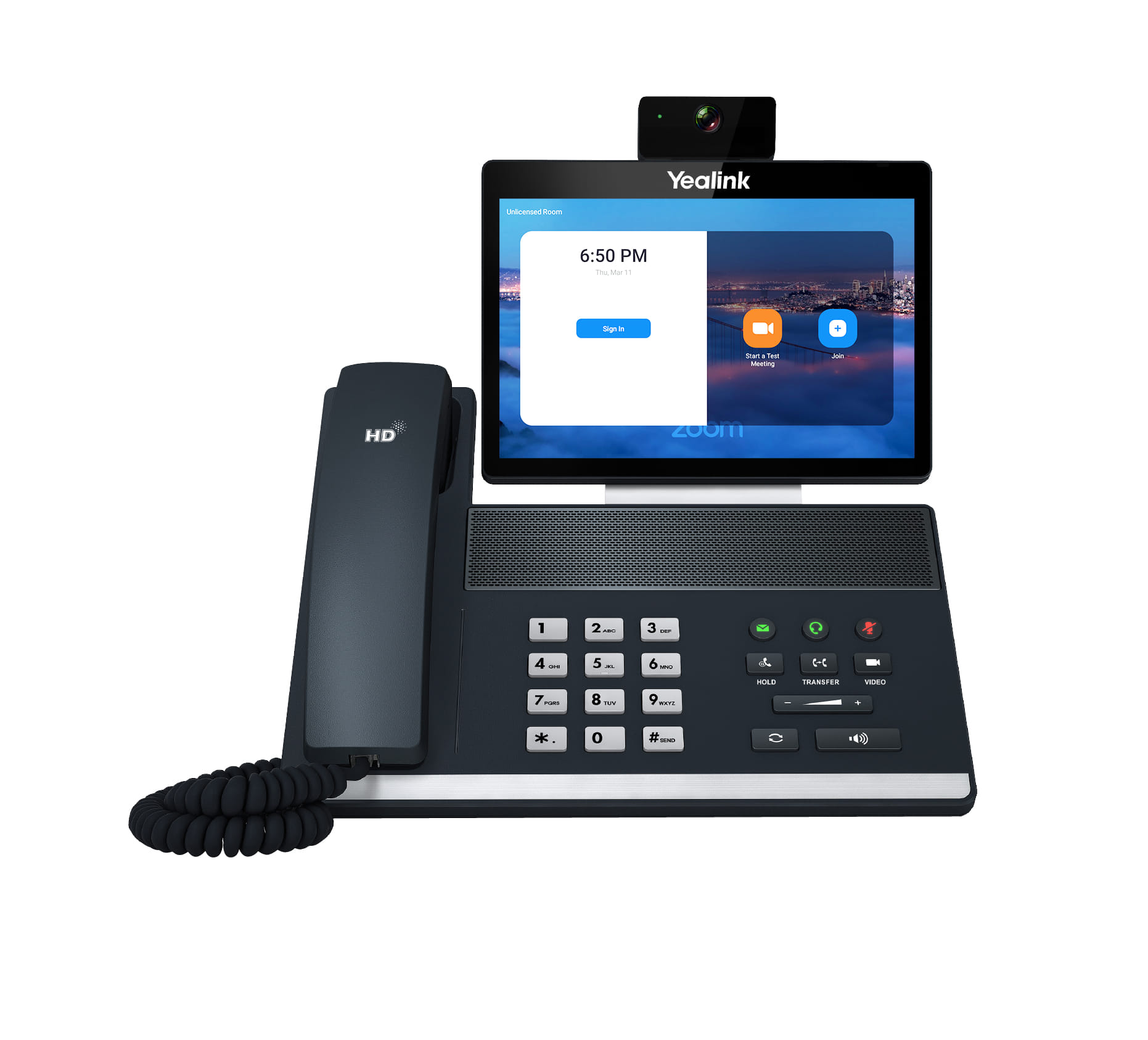

Yealink VP59 Zoom Edition

Design
Product type The sub-category of the product.	IP Phone
Handset type	Wired handset
Product colour The colour e.g. red, blue, green, black, white.	Grey
Device lock
Mounting What size the mounting head of the product is, to couple it with a camera.	Desk

Performance
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Android
Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android.	9.0
Hearing aid compatibility
Compatible products Other products that can be used with this product.	Zoom

Phone features
Call hold
Call forwarding
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Call transfer
Emergency call

Management features
Integrated voicemail
Plug and Play Indicates whether this product supports is "plug and play". Plug and play is hardware or software that, after being installed ("plugged in"), can immediately be used ("played with"), as opposed to hardware or software which requires configuration.

Display
Display The description of display that can includes display type, resolution, size etc.	LCD
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	20.3 cm (8")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	1280 x 800 pixels
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive.	Capacitive
Number of simultaneous touchpoints	10
Graphical user interface (GUI) language	Multi

Camera
Front camera Camera at the front of the product.
Front camera resolution (numeric)	2 MP
Horizontal field of view	84°
Vertical field of view	54°
Camera privacy shutter

Audio
Speakerphone Device has a microphone and loudspeaker provided separately from those in the handset. This device allows multiple persons to participate in a conversation. The loudspeaker broadcasts the voice or voices of those on the other end of the telephone line, while the microphone captures all voices of those using the speakerphone.
Microphone mute
Voice codecs	AGC, AJB, CNG, PLC, VAD
Noise reduction

Video
Video codecs	H.264 High Profile, H.264, H.263, VP8

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.
Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0).	4.2
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	IPv4/IPv6, SNTP
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	802.1x RADIUS, HTTPS, TLS
Syslog
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.3af

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
USB 3.2 Gen 1 (3.1 Gen 1) ports quantity The number of USB 3.0 ports (sockets). USB 3.0 was released in November 2008. The standard defines a new SuperSpeed mode with a signaling speed of 5 Gbit/s and a usable data rate of up to 4 Gbit/s. A USB 3.0 port is usually colored blue, and is backwards compatible with USB 2.0.	1
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	2
RJ-9 ports quantity	2
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.

Power
Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras.
AC adapter input voltage	100 - 240 V
AC adapter output voltage	12 V
AC adapter output current	1 A
USB output current	0.5 A
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	9 W
Power consumption (Power over Ethernet (PoE))	10.2 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95%

Weight & dimensions
Width The measurement or extent of something from side to side.	273 mm
Depth The distance from the front to the back of something.	226 mm
Height The measurement of the product from head to foot or from base to top.	285 mm

Packaging content
Handset
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
Number of handles included The amount of handles, which are the part by which a thing is held, carried or controlled.	1 pc(s)
Cables included	LAN (RJ-45)
Stand included

Logistics data
Products per master (outer) case	5 pc(s)
Master (outer) case gross weight	13.4 kg
Master (outer) case length	376 mm
Master (outer) case width	587 mm
Master (outer) case height	350 mm
Master (outer) case net weight	12.4 kg
