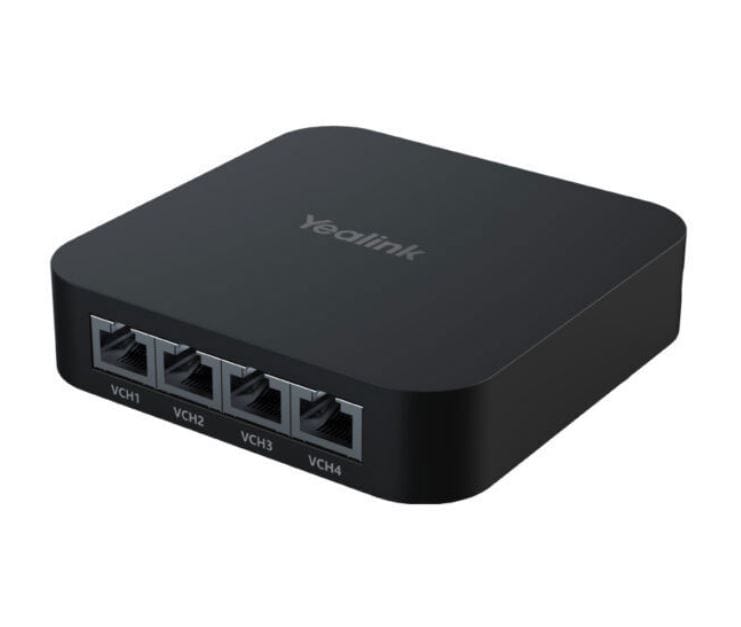

Yealink RCH40 4-Port PoE Switch, Used For Connecting Yealink Meeting Room Cameras, Microphones & Speakers
The RCH40 provides 4 10/100/1000Mbps ports that support 802.3af/at-compliant PoE, with a total PoE power supply of up to 90W, powerful and flexible enough for users to connect video conference system.
The RCH40 also comes equipped with Yealink EasyConnect, user can connect the RCH40 to the Yealink VCH port without a power adapter, simplifying your cable connection.
Furthermore, RCH40 provides Yealink SafeConnect, when PoE demand exceeds the PoE budget, low-priority devices are shut down before high-priority devices.
With all these advanced features, the Room Cable Hub RCH40 is an ideal choice for medium to large meeting rooms.
Features
Yealink EasyConnect
Yealink SafeConnect
Up to 90w PoE Budget
4x 10/100/1000Mbps Port
802.3af/at-compliant
PoE Priority Control
The RCH40 also comes equipped with Yealink EasyConnect, user can connect the RCH40 to the Yealink VCH port without a power adapter, simplifying your cable connection.
Furthermore, RCH40 provides Yealink SafeConnect, when PoE demand exceeds the PoE budget, low-priority devices are shut down before high-priority devices.
With all these advanced features, the Room Cable Hub RCH40 is an ideal choice for medium to large meeting rooms.
Features
Yealink EasyConnect
Yealink SafeConnect
Up to 90w PoE Budget
4x 10/100/1000Mbps Port
802.3af/at-compliant
PoE Priority Control
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology Type of cable technology performance. | 10/100/1000 |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.3af, IEEE 802.3at |
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| LED indicators | PoE-Max, Power |
| Power | |
| Power source type What the power source is. | DC, PoE |
| DC input voltage | 48 V |
| Input current | 2 A |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 100 mm |
| Depth The distance from the front to the back of something. | 100 mm |
| Height The measurement of the product from head to foot or from base to top. | 25 mm |
| Packaging content | |
| AC adapter included |
|
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| SKU | 785546 |
| MPN | RCH40-E2 |
| Brand | Yealink |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
