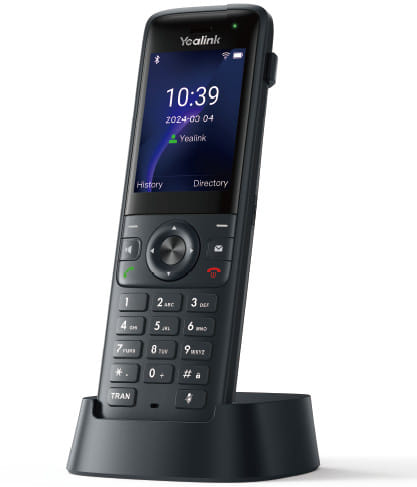

AX83H is an enterprise portable Wi-Fi IP color screen phone that meets wireless communication needs. The AX83H supports registering up to four SIP accounts and features a 2.4-inch color display. It integrates Yealink's Optima HD Audio and Smart Noise cancellation technology to deliver exceptional audio quality and clear voice communication. It is equipped with a built-in Bluetooth 5.0 module and a dual-band 2.4G/5G Wi-Fi 6 module, combined with advanced seamless roaming technology, allowing you to stay ahead in the ever-evolving wireless era. In addition, AX83H is equipped with a 2000mAh battery, with a talk time of 9 hours and a standby time of 200 hours. It is widely used in wireless scenarios such as SMEs, offices, warehouses, supermarkets, and hotels.
| Design | |
| Product type The sub-category of the product. | IP Phone |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Backlight keypad |
 |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Phone features | |
| Call waiting |
|
| Speed dialling |
|
| Intercom |
|
| Call hold |
|
| Call forwarding |
|
| Caller ID The name and/or number of the caller comes up on screen when they ring the phone. You also send your caller ID when you call someone else unless you choose to deactivate it. |
|
| Phonebook capacity The number of names/numbers that can be stored in the phonebook of a phone. | 1000 entries |
| Call park |
|
| Call pick up |
|
| Anonymous call |
|
| Anonymous call rejection |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Vibrating alert |
|
| Call transfer |
|
| Message-waiting indicator (MWI) |
|
| Call history |
|
| Emergency call |
|
| Management features | |
| Integrated voicemail |
|
| Keypad number of keys | 8 |
| Display | |
| Display The description of display that can includes display type, resolution, size etc. | TFT |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 6.1 cm (2.4") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 240 x 320 pixels |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Audio | |
| Microphone mute |
|
| Voice codecs | G.711a, G.722, G.723, G.726, G.729, G.729A, G.729B, G.729ab |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Bluetooth version The type of bluetooth technology in the product e.g. Bluetooth Smart (v4.0). | 5.0 |
| Quality of Service (QoS) support |
|
| Sensors | |
| Proximity sensor |
|
| Ports & interfaces | |
| Headset connectivity | 3.5 mm |
| USB Type-C ports quantity | 1 |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -30 - 70 °C |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 126 g |
| Handset dimensions (WxDxH) | 49.5 x 21 x 151 mm |
| Packaging content | |
| Handset |
|
| Number of handles included The amount of handles, which are the part by which a thing is held, carried or controlled. | 1 pc(s) |
| Charger |
|
| SKU | 812338 |
| MPN | AX83H |
| Brand | Yealink |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.yealink.com/ |
| Stock Availability | Available for Shipping |
