SmartVision 40, AIO Intelligent USB Bar, includes VCR20 Remote, Power Adapter and Wall Mount Bracket
Yealink SmartVision 40 - AIO Intelligent USB Bar, includes VCR20 Remote, Power Adapter and Wall Mount Bracket

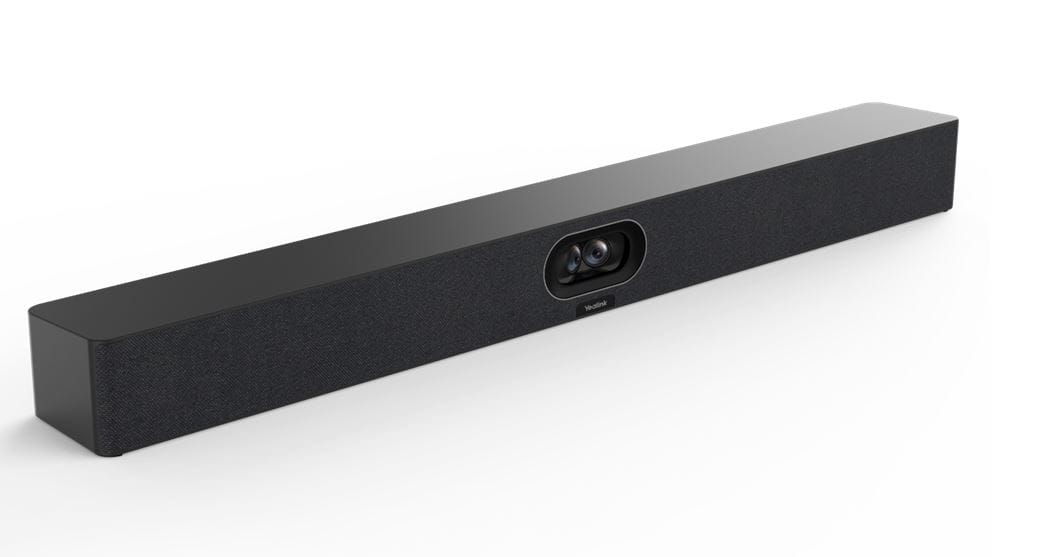

Yealink SmartVision 40 is an all-in-one smart USB video camera for small to medium-sized meeting rooms with a built-in soundbar, 8-microphone array and on-screen video output. The device allows you to connect the entire stereo audio-video system (including wireless peripherals) in one action. The camera is certified to work in Microsoft Teams and Zoom Rooms environments , and is compatible with other communication applications according to the UVC standard. Voice capture is carried out at a distance of up to 6 m, and the device is expandable with additional Yealink microphones . Administration is carried out using the RoomConnect application and the YDMP remote control, diagnostics and technical support system .
Artificial intelligence: image recognition, adjusting the video capture frame to the number and position of those present or by focusing on a speaker or selected faces ( multifocus up to 4 points ), automatic shutter control during a video call, support for Microsoft Multi-stream Intelliframe .
2 x 48 MP wide-angle dual video camera provides better coverage of those present, more accurate image and content transmission, and also provides a realistic effect of presence and comfort in meetings.
Yealink SmartVision 40 is an all-in-one smart USB video camera for small to medium-sized meeting rooms with a built-in soundbar, 8-microphone array and on-screen video output. The device allows you to connect the entire stereo audio-video system (including wireless peripherals) in one action. The camera is certified to work in Microsoft Teams and Zoom Rooms environments , and is compatible with other communication applications according to the UVC standard. Voice capture is carried out at a distance of up to 6 m, and the device is expandable with additional Yealink microphones . Administration is carried out using the RoomConnect application and the YDMP remote control, diagnostics and technical support system .
Artificial intelligence: image recognition, adjusting the video capture frame to the number and position of those present or by focusing on a speaker or selected faces ( multifocus up to 4 points ), automatic shutter control during a video call, support for Microsoft Multi-stream Intelliframe .
2 x 48 MP wide-angle dual video camera provides better coverage of those present, more accurate image and content transmission, and also provides a realistic effect of presence and comfort in meetings.
| Performance | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Auto framing |
 |
| Product type The sub-category of the product. | Group video conferencing system |
| Video | |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Maximum video resolution This is the maximum resolution of video images. Resolution is a measure of the degree of detail visible. | 3840 x 2160 pixels |
| Total megapixels A megapixel (MP or Mpx) is one million pixels, and is a term used not only for the number of pixels in an image, but also to express the number of image sensor elements of digital cameras or the number of display elements of digital displays. For example, a camera that makes a 2048 × 1536 pixel image typically uses a few extra rows and columns of sensor elements and is commonly said to have "3.2 megapixels" or "3.4 megapixels", depending on whether the number reported is the "effective" or the "total" pixel count (as opposed to the 2048 × 1536 = 3,145,728 finished image pixels). | 48 MP |
| Supported video modes The video modes that can be displayed by the device. | 2160p |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 3840 x 2160 |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 60 fps |
| Picture-in-Picture Picture-in-picture (PiP) is a feature of some television receivers and similar devices. One program (channel) is displayed on the full TV screen at the same time as one or more other programs are displayed in inset windows. Sound is usually from the main program only. |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of speakers The quantity of speakers included in/with the product. | 2 |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 100 - 20000 Hz |
| Audio system full duplex |
|
| Echo cancellation |
|
| Microphone pick-up range | 6 m |
| Speaker power | 10 W |
| Ports & interfaces | |
| HDMI output ports quantity | 1 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Reset slot |
|
| Network | |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Camera | |
| Megapixel (approx.) The number (in millions) of light-sensitive picture elements known as pixels actually used by the camera's image sensor (CCD) to record light, and which are reflected to the final number of recorded pixels stored on the memory card. | 48 MP |
| Camera type There are a number of common types of digital cameras: compact cameras, bridge cameras, mirrorless interchangeable-lens cameras (MILC) and single lens reflex (SLR) cameras. Bridge cameras 'bridge the gap' between the low-end compact and high-end professional (SLR) cameras. Also MILCs populate this mid-segment by combining the larger sensors and interchangeable lenses of DSLRs with the live-preview viewing system of compact cameras. | Dual camera |
| Second camera resolution | 48 MP |
| Zoom capability The amount that the camera lens can zoom. |
|
| Digital zoom Indicates the digital zoom capacity, the number of times that the picture is enlarged thanks to digital technology. | 6x |
| Diagonal field of view | 120° |
| Number of camera presets | 9 |
| Logistics data | |
| Country of origin Country where the device is made. Aka Country of manufacture (COM). | China |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.54 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 650 mm |
| Package depth The distance from the front to the back of the packaging. | 80 mm |
| Package height The distance from the top to the bottom of the packaging. | 62 mm |
| Package weight Weight of the packaged product. | 6.07 kg |
| SKU | 779174 |
| MPN | SmartVision-40 |
| Brand | Yealink |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
