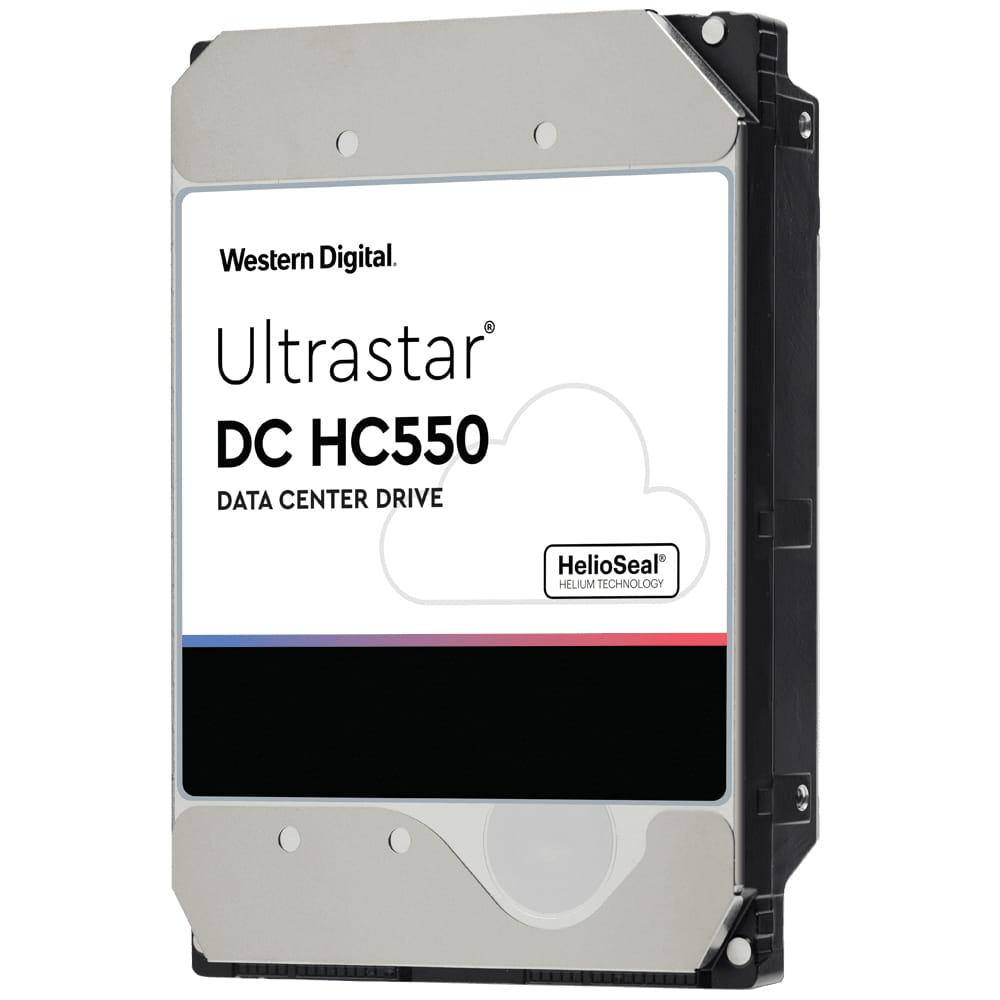

Western Digital Ultrastar DC HC550, 3.5", 18000 GB, 7200 RPM
Ultrastar DC HC500 Series
High Capacity for Massive Data and Lower Total Cost of Ownership
Driving Up Capacity and Driving Down TCO for Cloud and Hyperscale Data Centers
The breadth and depth of Big Data is driving the universal need for higher capacities across a broad spectrum of applications and workloads. Laying the foundation for a worry-free data center, Western Digital delivers the capacity to conquer the data explosion with the Ultrastar DC HC500 series of hard disk drives (HDDs). The DC HC500 series is designed for public and private cloud environments where storage density and cost-efficient infrastructure is critical.
The 18TB/16TB Ultrastar DC HC550 HDDs are the first commercial implementation of Energy-Assisted Magnetic Recording technology and utilize the industrys first Triple Stage Actuator. These technologies, integrated with HelioSeal on a 9-disk platform, deliver the highest areal density and unmatched Total Cost of Ownership for customer and market needs.
Solves TCO Challenges
- High Capacity
Up to 18TB HDDs, drop-in ready for Big Data workloads
- Low Power
Up to 61% lower idle W/TB than 10TB Ultrastar air-filled drives
- More Reliable
25% higher MTBF rating than air-filled HDDs
Continuous Innovation for Highest Capacities and Lower TCO
The Ultrastar DC HC550 18TB CMR HDD and Ultrastar DC HC650 20TB SMR HDD are delivering industry leading capacity for the data center through a combination of new and proven technologies.
Western Digital is the first to deliver Energy-Assisted Magnetic Recording (EAMR) technology and a Triple Stage Actuator (TSA). These new technologies combined with further mechanical innovations and HelioSeal technology provide the industrys highest capacities to enable data at scale with optimized TCO for data center architectures, while maintaining workload reliability and performance.
High Capacity for Massive Data and Lower Total Cost of Ownership
Driving Up Capacity and Driving Down TCO for Cloud and Hyperscale Data Centers
The breadth and depth of Big Data is driving the universal need for higher capacities across a broad spectrum of applications and workloads. Laying the foundation for a worry-free data center, Western Digital delivers the capacity to conquer the data explosion with the Ultrastar DC HC500 series of hard disk drives (HDDs). The DC HC500 series is designed for public and private cloud environments where storage density and cost-efficient infrastructure is critical.
The 18TB/16TB Ultrastar DC HC550 HDDs are the first commercial implementation of Energy-Assisted Magnetic Recording technology and utilize the industrys first Triple Stage Actuator. These technologies, integrated with HelioSeal on a 9-disk platform, deliver the highest areal density and unmatched Total Cost of Ownership for customer and market needs.
Solves TCO Challenges
- High Capacity
Up to 18TB HDDs, drop-in ready for Big Data workloads
- Low Power
Up to 61% lower idle W/TB than 10TB Ultrastar air-filled drives
- More Reliable
25% higher MTBF rating than air-filled HDDs
Continuous Innovation for Highest Capacities and Lower TCO
The Ultrastar DC HC550 18TB CMR HDD and Ultrastar DC HC650 20TB SMR HDD are delivering industry leading capacity for the data center through a combination of new and proven technologies.
Western Digital is the first to deliver Energy-Assisted Magnetic Recording (EAMR) technology and a Triple Stage Actuator (TSA). These new technologies combined with further mechanical innovations and HelioSeal technology provide the industrys highest capacities to enable data at scale with optimized TCO for data center architectures, while maintaining workload reliability and performance.
| Features | |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 18000 GB |
| HDD speed The rotational speed of a hard disk expressed in rotations per minute. The faster the better. | 7200 RPM |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | SAS |
| Type Characteristics of the device. | HDD |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Storage drive buffer size | 512 MB |
| HDD interface transfer rate | 12 Gbit/s |
| Average latency The average duration before a device can start with a job (for example reading a file from a hard disk). | 4.16 ms |
| 24/7 operation |
 |
| Start/stop cycles | 600000 |
| Workload rate limit | 550 TB/year |
| Noise level (idle) | 2 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2500000 h |
| Power | |
| Power consumption (read) | 6.5 W |
| Power consumption (write) | 6.5 W |
| Power consumption (idle) | 5.6 W |
| Operating voltage Defines the range of operating voltages available | 5 / 12 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 0.67 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 1.04 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 50 G |
| Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode | 250 G |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 101.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 26.1 mm |
| Depth The distance from the front to the back of something. | 147 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 690 g |
| Packaging data | |
| Manual |
|
| Quantity The number of products there are. | 1 |
| SKU | 448751 |
| MPN | 0F38352 |
| Brand | Western Digital |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 3.5" |
| Storage Size (HDD) | 18TB |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.westerndigital.com/ |
