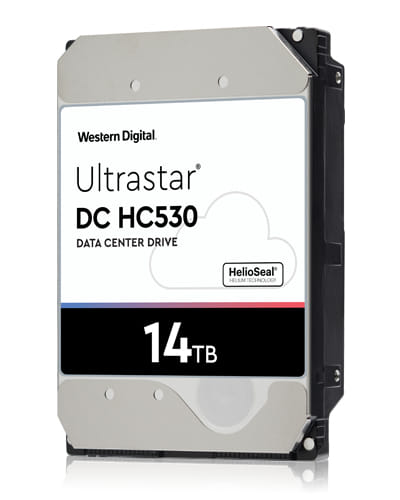

Ultrastar DC HC530, 14 TB, SAS, SE, 12Gb/s, 7200 RPM, 5/12 VDC, 101.6x147x26.1 mm
The breadth and depth of big data is driving the universal need for higher capacities across a broad spectrum of applications and workloads. Laying the foundation for a worry-free data center, Western Digital delivers capacity to conquer the data explosion"the 14TB Ultrastar DC HC530 hard drive. Built using HelioSeal technology, the industrys only fifth-generation helium platform, Ultrastar DC HC530 is designed for public and private cloud environments where storage density, Watts/TB and $/TB are critical parameters for creating the most cost-efficient infrastructure. HelioSeal technology is key to achieving higher drive capacities, higher reliability ratings and extreme power efficiency for lower levels of total cost of ownership (TCO) for cloud and enterprise customers.
| Features | |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 14000 GB |
| HDD speed The rotational speed of a hard disk expressed in rotations per minute. The faster the better. | 7200 RPM |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | SAS |
| Type Characteristics of the device. | HDD |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Storage drive buffer size | 512 MB |
| HDD interface transfer rate | 12 Gbit/s |
| HDD sustained transfer rate | 267 MiB/s |
| HDD average transfer rate | 1200 MB/s |
| Read seek time | 7.5 ms |
| Average latency The average duration before a device can start with a job (for example reading a file from a hard disk). | 4.16 ms |
| Start/stop cycles | 600000 |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2500000 h |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 8.5 W |
| Power consumption (idle) | 5.9 W |
| Operating voltage Defines the range of operating voltages available | 5 / 12 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 0.67 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 1.04 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 70 G |
| Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode | 300 G |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 101.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 26.1 mm |
| Depth The distance from the front to the back of something. | 147 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 690 g |
| Packaging data | |
| Storage drive adapter included An adapter is included for usage with additional storage drived included in the packaging. |
 |
| Quantity The number of products there are. | 1 |
| SKU | 448748 |
| MPN | 0F31052 |
| Brand | Western Digital |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 3.5" |
| Storage Size (HDD) | 14TB |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.westerndigital.com/ |
