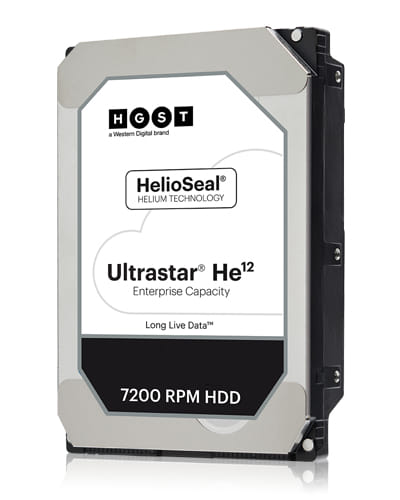

Western Digital Ultrastar He12, 3.5", 12000 GB, 7200 RPM
Laying the foundation for a worry-free data center, HGST delivers capacity to conquer the data explosion " Ultrastar He12 HDD. Designed to handle workloads up to 550TB per year, the Ultrastar He12 HDD is the industrys first 12TB drive and uses PMR technology to make it drop-in ready for any enterprise-capacity application or environment. The stable internal environment created by fourth-generation HelioSeal technology enables a new 8-disk design, increasing the capacity by 20% when compared to the 7-disk design of the prior generation. This highest capacity helium drive offers the lowest power profile in the industry to help data center architects meet eco-environmental goals and requirements. Targeted at 2.5M hours MTBF, the Ultrastar He12 HDD provides the highest reliability rating available of all HDDs on the market today by building on the successful design of its 10TB, 8TB and 6TB predecessors. Trust HGST and the Ultrastar He12 HDD to deliver more capacity, more efficiency, more reliability and more value to your data center.
| Features | |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 12000 GB |
| HDD speed The rotational speed of a hard disk expressed in rotations per minute. The faster the better. | 7200 RPM |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | SAS |
| Type Characteristics of the device. | HDD |
| Component for What this product is used as a part of (component for). | Surveillance system |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 12 Gbit/s |
| Read seek time | 8 ms |
| Write seek time | 8.6 ms |
| Average latency The average duration before a device can start with a job (for example reading a file from a hard disk). | 4.16 ms |
| Bytes per sector | 512 |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2500000 h |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 9.8 W |
| Power consumption (idle) | 6.1 W |
| Operating voltage Defines the range of operating voltages available | 5 / 12 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 0.67 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 1.04 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 70 G |
| Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode | 300 G |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 101.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 26.1 mm |
| Depth The distance from the front to the back of something. | 147 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 660 g |
| Packaging data | |
| Storage drive adapter included An adapter is included for usage with additional storage drived included in the packaging. |
 |
| Quantity The number of products there are. | 1 |
| SKU | 448745 |
| MPN | 0F29532 |
| Brand | Western Digital |
| Product Condition | Brand New/Unused |
| Drive Form Factor | 3.5" |
| Storage Size (HDD) | 12TB |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.westerndigital.com/ |
