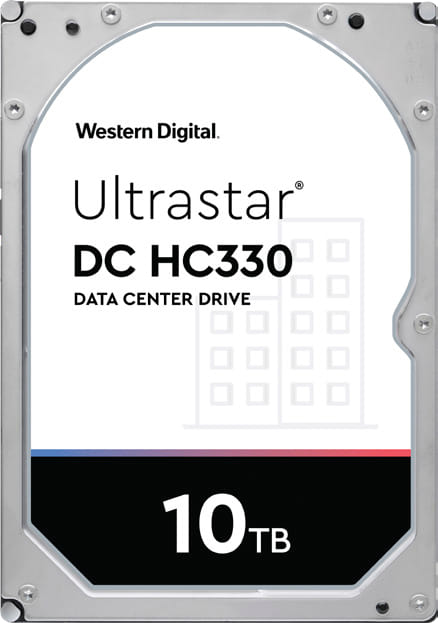

Western Digital Ultrastar DC HC330, 3.5", 10000 GB, 7200 RPM
Medium Capacity for High Access-Density Requirements
Delivering Economics and Access Speed to Data Center Applications and Workloads
As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on mid-range capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC300 series is a proven air-platform design that delivers up to the industry leading 10TB of capacity to help address the economic and access-density requirements of many data center workloads. Ideal for storage and server applications, as well as distributed and scalable computing (including block and file storage architectures), the Ultrastar DC HC300 series provides fast 7,200 RPM spindle speeds and is offered in either 6Gb/s SATA or 12Gb/s SAS interface with advanced format 512e3 sector size.
Solves Access Density Challenges
Economical Capacity
4TB, 6TB, 8TB, and 10TB models for lower acquisition cost.
High Performance
Fast data access with 7200 RPM speed, transferring up to 255 MB/s.
Drop-In Ready
SAS and SATA options support traditional servers and storage.
Delivering Economics and Access Speed to Data Center Applications and Workloads
As the industry evolves to develop purpose-built solutions for growing data storage requirements, IT managers continue to rely on mid-range capacity drives that are economical to acquire, yet deliver quick and reliable data access for traditional data center applications. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC300 series is a proven air-platform design that delivers up to the industry leading 10TB of capacity to help address the economic and access-density requirements of many data center workloads. Ideal for storage and server applications, as well as distributed and scalable computing (including block and file storage architectures), the Ultrastar DC HC300 series provides fast 7,200 RPM spindle speeds and is offered in either 6Gb/s SATA or 12Gb/s SAS interface with advanced format 512e3 sector size.
Solves Access Density Challenges
Economical Capacity
4TB, 6TB, 8TB, and 10TB models for lower acquisition cost.
High Performance
Fast data access with 7200 RPM speed, transferring up to 255 MB/s.
Drop-In Ready
SAS and SATA options support traditional servers and storage.
| Features | |
| HDD size The amount of data that the hard drive can store. | 3.5" |
| HDD capacity The maximum storage capacity of the hard disk, usually measured in bytes e.g. GB. | 10000 GB |
| HDD speed The rotational speed of a hard disk expressed in rotations per minute. The faster the better. | 7200 RPM |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | SAS |
| Type Characteristics of the device. | HDD |
| Storage drive buffer size | 256 MB |
| HDD interface transfer rate | 12 Gbit/s |
| HDD sustained transfer rate | 260 MiB/s |
| Read seek time | 8 ms |
| Write seek time | 8.6 ms |
| Average latency The average duration before a device can start with a job (for example reading a file from a hard disk). | 4.16 ms |
| Uncorrectable Bit Error Rate (UBER) | 1 in 10^15 |
| 24/7 operation |
 |
| Start/stop cycles | 600000 |
| Noise level (idle) | 3.4 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 2000000 h |
| Power | |
| Power consumption (idle) | 9 W |
| Operating voltage Defines the range of operating voltages available | 5 / 12 V |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 60 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating vibration Environmental requirements for vibration in operating mode | 0.67 G |
| Non-operating vibration Environmental requirements for vibration in non-operating mode | 1.04 G |
| Operating shock Environmental requirements for optimal protection from impact in operating mode | 70 G |
| Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode | 250 G |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 101.6 mm |
| Height The measurement of the product from head to foot or from base to top. | 147 mm |
| Depth The distance from the front to the back of something. | 26.1 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 750 g |
| Packaging data | |
| Quantity The number of products there are. | 1 |
| SKU | 496502 |
| MPN | 0B42258 |
| Brand | Western Digital |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
