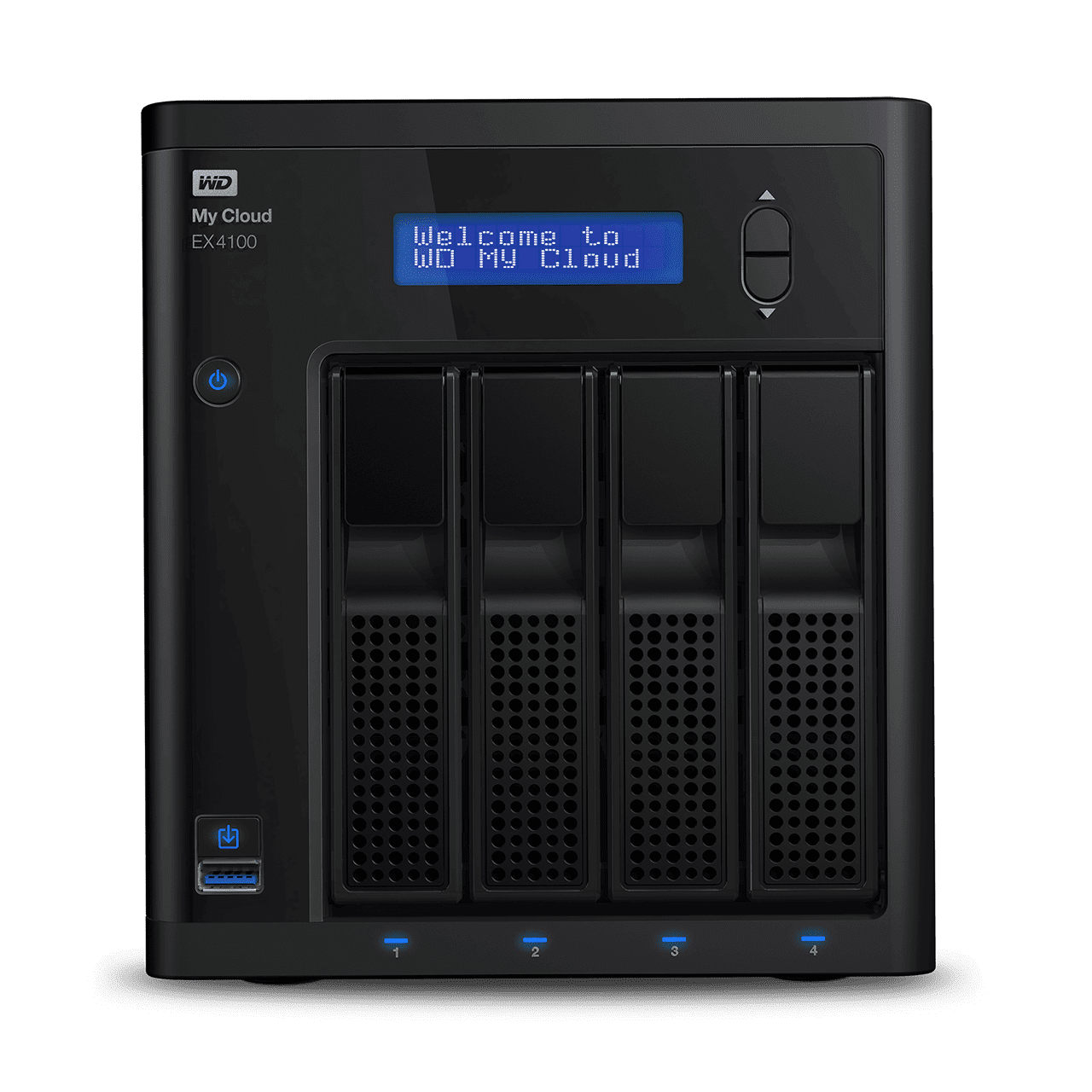

My Cloud EX4100 Expert Series 4-Bay 16TB NAS,1.6GHz Dual-Core CPU,2GB DDR3,RAID,backup,media server - Black
Storage
Storage drive interface
Where the storage device links with other parts of the product, or an external device.
Serial ATA
Storage drive size
The size of the storage drive, given in inches ('').
3.5"
RAID support
The device uses RAID, which is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
RAID levels
RAID is a storage technology that combines multiple disk drive components into a logical unit for the purposes of data redundancy and performance improvement. Data is distributed across the drives in one of several ways, referred to as RAID levels, depending on the specific level of redundancy and performance required.
1,5,JBOD
Hot-swap drive bays
The places where drives (hot-swap drives) can be inserted to or removed from the computer.
Supported file systems
FAT32,HFS,NTFS,ext2,ext3,ext4
Total installed storage capacity
16 TB
Storage drives installed
Storage drives are built into the system.
Installed storage drive type
Type of storage drives built into the device e.g. HDD (hard disk drive), SSD (solid-state drive).
HDD
Supported storage drive types
The type of storage drives the device is compatible with.
HDD
Number of storage drives supported
How many storage drives can be fit into the product at once.
4
Processor
Processor family
A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.
Marvell
Processor model
The model number for the processor in a computer.
Armada 388
Processor frequency
The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.
1.6 GHz
Processor cores
The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).
2
Memory
Internal memory type
The type of internal memory such as RAM, GDDR5.
DDR3
Internal memory
A computer's memory which is directly accessible to the CPU.
2 GB
Network
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates
The different speed levels of the Ethernet LAN connection.
10,100,1000 Mbit/s
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
DHCP client
Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Jumbo frames support
iSCSI support
Wake-on-LAN ready
Supported network protocols
Network protocols tested as compatible with this product e.g. FTP,HTML, POP.
SSH, LLTD, UPnP, NTP, Apple Bonjour
Ports & interfaces
USB port
The device features a socket into which a USB cable can be plugged.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.
2
Design
Chassis type
The type of rigid framework onto which is the hosuing for device components.
Desktop
Cooling type
The method used to cool the device or to cool the air around the device.
Active
Product colour
The colour e.g. red, blue, green, black, white.
Black
Number of fans
The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation).
1 fan(s)
LED indicators
Performance
Type
Characteristics of the device.
NAS
Device class
The category to which this device belongs.
Home & Home Office
Backup function
The function if the main power source fails.
Backup features
Cloud,iSCSI LUN
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
256-bit AES
Web-based management
Using a website/web application to manage something.
Software
Operating system installed
Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.
My Cloud OS
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64
Linux operating systems supported
8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3)
Mac operating systems supported
Mac operating systems e.g. OS X can be used with the device.
Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks
Power
Power supply location
Where the power supply is positioned.
External
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100-240 V
AC input frequency
50 - 60 Hz
Output voltage
19 V
Output current
6.32 A
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 35 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-40 - 70 °C
Certificates
Digital Living Network Alliance (DLNA) certified
The product has been certified by the Digital Living Network Alliance (DLNA), which is a non-profit collaborative trade organization established by Sony in June 2003 that is responsible for defining interoperability guidelines to enable sharing of digital media between multimedia devices
