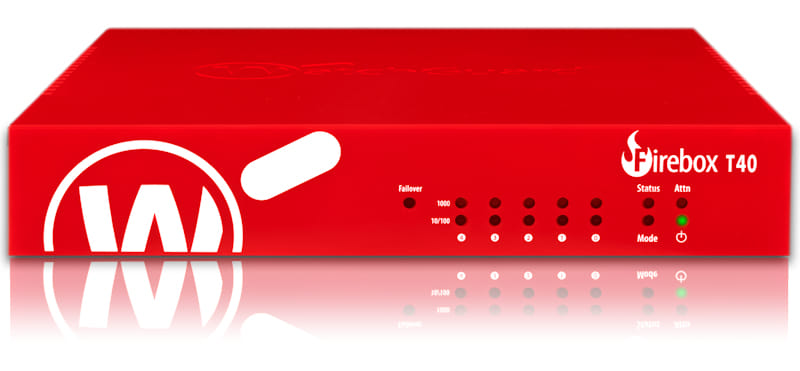

WatchGuard Firebox T40 1yr Total Security Suite AU

Data transmission
Firewall throughput The average rate of successful data delivery over through a Firewall. The throughput is usually measured in bits per second (bit/s or bps), and sometimes in data packets per second or data packets per time slot.	3400 Mbit/s
Firewall (UDP 1518) throughput	3.4 Gbit/s
Firewall (IMIX) throughput	1 Gbit/s
VPN throughput	880 Mbit/s
VPN (IMIX) throughput	272 Mbit/s
VPN (UDP 1518) throughput	0.88 Gbit/s
IPS/IDS throughput	510 Mbit/s
Gateway antivirus throughput	0.623 Gbit/s
Current connections (proxy)	200000
TDR host sensors capacity	20
Branch Office VPN	30
Maximum firewall connections per second	18000
HTTPS encryption

Performance
Built-in processor Whether or not a processor is built into the device.
Processor architecture	ARM Cortex-A53
Processor frequency The clock rate is the fundamental rate in cycles per second (measured in hertz) at which a computer performs its most basic operations such as adding two numbers. There are more factors, like internal memory size, that influence a computer's actual response time.	1000 MHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Concurrent connections	500000
Reset button
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	157751 h
Certification	WEEE, FCC CAN/CSA C22.2 No.60950-1-07, 2nd ed. 2014-10 UL 60950-1, 2nd ed. 2014-10-14 IEC 60950-1:2005+A1:2009+A2:2013 IEC 62368-1: 2014 2nd ed. EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q,IEEE 802.3ad
Mobile VPN tunnels quantity	30
Dynamic routing
Dynamic DNS (DDNS)
Number of VLANs	50
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Quality of Service (QoS) support
Point-to-point protocol over Ethernet (PPPoE) The Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating PPP frames inside Ethernet frames. It appeared in 1999, in the context of the boom of DSL as the solution for tunneling packets over the DSL connection to the ISP's IP network, and from there to the rest of the Internet. A 2005 networking book noted that "Most DSL providers use PPPoE, which provides authentication, encryption, and compression." Typical use of PPPoE involves leveraging the PPP facilities for authenticating the user with a username and password, predominately via the PAP protocol and less often via CHAP.

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	FIPS 140-2, TLS

Protocols
Routing protocols	BGP,OSPF,RIP

Management features
On/off switch The button which is pressed to switch the device on or off.

Ports & interfaces
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired & Wireless
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	5
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.	1

Memory
Internal memory The amount of memory, usually measured in bytes (e.g. MB, GB), which is installed in the system's hardware.	4096 MB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR4

Storage
Storage media type Type of storage medium, like flash, hard disk drive, etc.	SSD
SSD capacity The Solid State Drive's data storage capacity.	16 GB

Power
AC input voltage The voltage of the AC electricity that is inputted into the product.	100-240 V
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	25 W
Power consumption (max) The maximum amount of power used by the device.	60 W

Technical details
Sustainability compliance
Sustainability certificates	RoHS

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	10 - 85%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m

Weight & dimensions
Width The measurement or extent of something from side to side.	203.2 mm
Depth The distance from the front to the back of something.	215.9 mm
Height The measurement of the product from head to foot or from base to top.	43.2 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	900 g

Packaging data
Package width The distance from one side of the packaging to the other.	308 mm
Package height The distance from the top to the bottom of the packaging.	261 mm
Package depth The distance from the front to the back of the packaging.	181 mm
Package weight Weight of the packaged product.	1.86 kg
