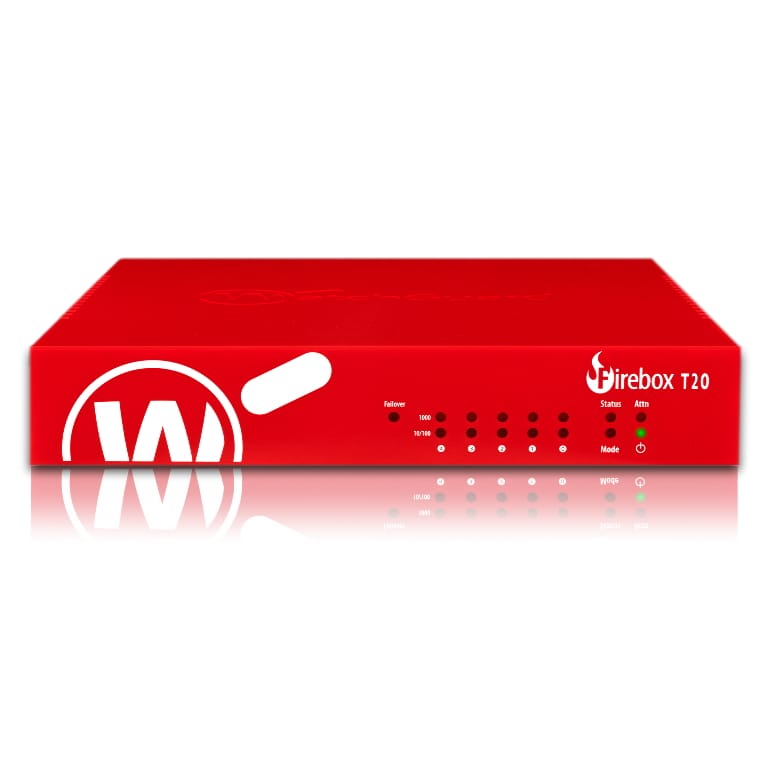

WatchGuard Firebox T20-W With 1yr Total Security Suite

Data transmission
Firewall throughput	1.7 Gbit/s
Firewall (UDP 1518) throughput	1.7 Gbit/s
Firewall (IMIX) throughput	0.51 Gbit/s
VPN (IMIX) throughput	0.14 Mbit/s
VPN (UDP 1518) throughput	0.485 Gbit/s
Gateway antivirus throughput	0.328 Gbit/s
IPS throughput (fast/full scan)	0/0.271 Gbit/s
UTM throughput (fast/full scan)	0/0.154 Gbit/s
TDR host sensors capacity	5
Branch Office VPN	10
Maximum firewall connections per second	8500

Performance
Concurrent connections	100000
Reset button
Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.	1101388 h

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 5 (802.11ac)
Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.	IEEE 802.1Q, IEEE 802.3ad
Mobile VPN tunnels quantity	10
Dynamic routing
Dynamic DNS (DDNS)
Number of VLANs	10
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
Quality of Service (QoS) support
Point-to-point protocol over Ethernet (PPPoE) The Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating PPP frames inside Ethernet frames. It appeared in 1999, in the context of the boom of DSL as the solution for tunneling packets over the DSL connection to the ISP's IP network, and from there to the rest of the Internet. A 2005 networking book noted that "Most DSL providers use PPPoE, which provides authentication, encryption, and compression." Typical use of PPPoE involves leveraging the PPP facilities for authenticating the user with a username and password, predominately via the PAP protocol and less often via CHAP.

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	HTTPS, TLS
DDoS protection
Firewall security Part of a computer system or network which is designed to block unauthorized access while permitting outward communication.	DoS attacks, fragmented & malformed packets, blended threats
Stateful Packet Inspection (SPI)

Management features
LED indicators
On/off switch The button which is pressed to switch the device on or off.

Ports & interfaces
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	5
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces.	1

Power
AC input voltage The voltage of the AC electricity that is inputted into the product.	100-240 V
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	24 W

Certificates
Compliance certificates	REACH, RoHS
Certification	CC EAL4+, FIPS 140-2, NRTL/CB, IPv6 Ready Gold, WEEE

Sustainability
Sustainability compliance

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 70 °C
Operating relative humidity (H-H)	10 - 85%
Storage relative humidity (H-H)	10 - 85%
Operating altitude	0 - 3000 m
Non-operating altitude	0 - 4570 m

Weight & dimensions
Width The measurement or extent of something from side to side.	203.2 mm
Depth The distance from the front to the back of something.	215.9 mm
Height The measurement of the product from head to foot or from base to top.	43.2 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	900 g

Packaging data
Package width The distance from one side of the packaging to the other.	308 mm
Package height The distance from the top to the bottom of the packaging.	261 mm
Package depth The distance from the front to the back of the packaging.	181 mm
Package weight Weight of the packaged product.	1.86 kg

Packaging content
Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.	1 Year Total Security Suite

Other features
Firewall throughput The average rate of successful data delivery over through a Firewall. The throughput is usually measured in bits per second (bit/s or bps), and sometimes in data packets per second or data packets per time slot.	1700 Mbit/s

Logistics data
Harmonized System (HS) code	85176990
