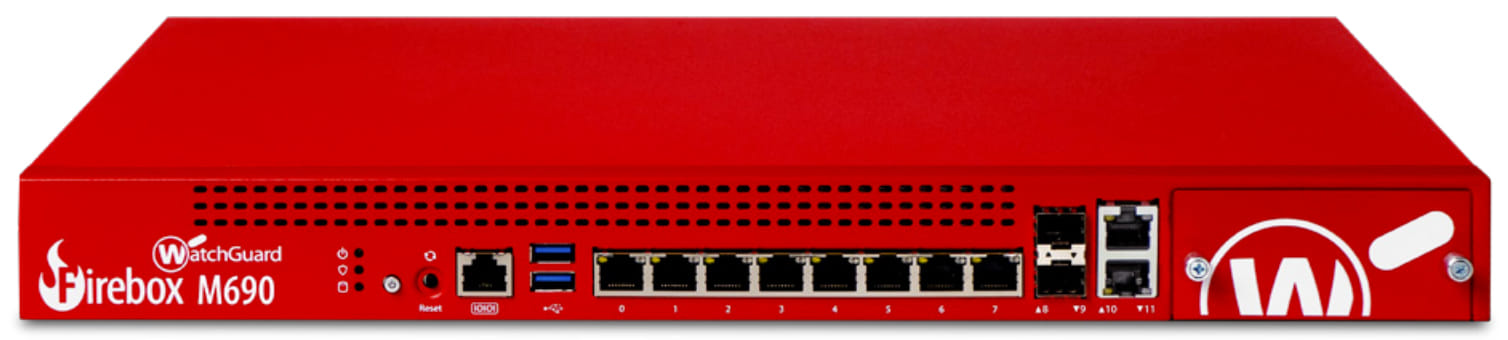

WatchGuard Firebox M690 With 3Yr Total Security Suite
Item No:
759434
MPN:
WGM69002103
$43,950.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
WatchGuard Firebox Trade up to M690, 4600 Mbit/s, 29.7 Gbit/s, 3200 Mbit/s, 10 Gbit/s, 5800 Mbit/s, 6.2 Gbit/s
Keep Pace with Growth in Encrypted Traffic
Firebox M590 and M690 firewalls are specifically engineered for midsize and distributed enterprises that are struggling to effectively and affordably secure networks in the face of explosive growth in bandwidth rates, encrypted traffic, video use, and connection speeds. With an operating system built on the latest multi-core processors the M590 and M690 have all the power they need to run their security scanning engines in parallel, without causing a bottleneck in performance.
Unified Security Defeats Complexity
The WatchGuard Unified Security Platform is a true force multiplier for IT teams. It makes operational ease possible by integrating the WatchGuard Firebox with WatchGuard
Firebox M590 and M690 firewalls are specifically engineered for midsize and distributed enterprises that are struggling to effectively and affordably secure networks in the face of explosive growth in bandwidth rates, encrypted traffic, video use, and connection speeds. With an operating system built on the latest multi-core processors the M590 and M690 have all the power they need to run their security scanning engines in parallel, without causing a bottleneck in performance.
Unified Security Defeats Complexity
The WatchGuard Unified Security Platform is a true force multiplier for IT teams. It makes operational ease possible by integrating the WatchGuard Firebox with WatchGuard
| Data transmission | |
| Firewall throughput The average rate of successful data delivery over through a Firewall. The throughput is usually measured in bits per second (bit/s or bps), and sometimes in data packets per second or data packets per time slot. | 4600 Mbit/s |
| Firewall (UDP 1518) throughput | 29.7 Gbit/s |
| VPN (IMIX) throughput | 3200 Mbit/s |
| VPN (UDP 1518) throughput | 10 Gbit/s |
| IPS/IDS throughput | 5800 Mbit/s |
| Gateway antivirus throughput | 6.2 Gbit/s |
| WSM license quantity | 4 license(s) |
| TDR host sensors capacity | 250 |
| Branch Office VPN | 1000 |
| Mobile VPN IPSec | 1000 |
| Maximum firewall connections per second | 146000 |
| Performance | |
| Concurrent connections | 15000000 |
| Syslog |
 |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 337443 h |
| Certification | WEEE, RoHS, REACH |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.3ad |
| Static route |
|
| Dynamic routing |
|
| Dynamic DNS (DDNS) |
|
| Number of VLANs | 1000 |
| DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one. |
|
| DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network. |
|
| Quality of Service (QoS) support |
|
| Point-to-point protocol over Ethernet (PPPoE) The Point-to-Point Protocol over Ethernet (PPPoE) is a network protocol for encapsulating PPP frames inside Ethernet frames. It appeared in 1999, in the context of the boom of DSL as the solution for tunneling packets over the DSL connection to the ISP's IP network, and from there to the rest of the Internet. A 2005 networking book noted that "Most DSL providers use PPPoE, which provides authentication, encryption, and compression." Typical use of PPPoE involves leveraging the PPP facilities for authenticating the user with a username and password, predominately via the PAP protocol and less often via CHAP. |
|
| Security | |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | FTPES, HTTPS, SNMP, SNMPv2, SNMPv3 |
| DDoS protection |
|
| Content filtering | Browser Safe Search, Google for Business |
| Protocols | |
| Routing protocols | BGP, OSPF, RIP |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 10 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000,10000 Mbit/s |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| SFP+ module slots quantity | 2 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 90-264 V |
| AC input frequency | 47/63 Hz |
| Input current | 2.4 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 87 W |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 150 W |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4570 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 307 mm |
| Depth The distance from the front to the back of something. | 438 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 4.5 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 588 mm |
| Package height The distance from the top to the bottom of the packaging. | 200 mm |
| Package depth The distance from the front to the back of the packaging. | 648 mm |
| Package weight Weight of the packaged product. | 6.5 kg |
| SKU | 759434 |
| MPN | WGM69002103 |
| Brand | WatchGuard |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.watchguard.com/ |
