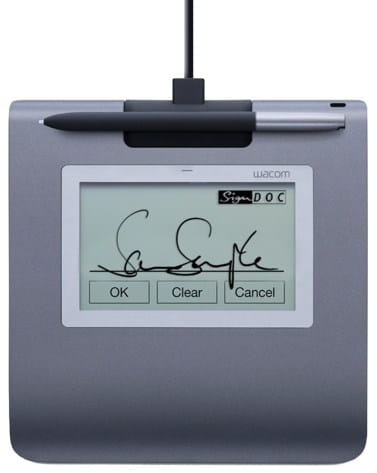

Wacom STU-430 4.5" LCD Signature Pad

Tablet
Resolution The degree of detail in a device.	2540 lpi
Working area The area that can be worked on.	96 x 60 mm
Device interface The ports (sockets) where the device connects with other devices.	USB
Tablet input type	Pen
Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless.	Wired

Pen
Pen included The product includes a pen.
Wireless pen An electronic ballpoint pen that digitizes, stores and transfers what is written or drawn to the computer. Instead of a mouse, a digital pen provides a very natural way to hand write and hand draw into the computer. The data can transferred simultaneously or later to a computer via a wireless network.
Pressure levels A gradation of applied amount of pressure.	1024
Battery-free pen
Pen report rate (points per second)	200

Display
Display The description of display that can includes display type, resolution, size etc.	LCD
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	11.4 cm (4.5")
Aspect ratio The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV.	16:10
Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.	0.3 x 0.3 mm
Display number of colours	Monochrome

Ports & interfaces
Cable length How long the cable is.	3 m
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1

Features
Product colour The colour e.g. red, blue, green, black, white.	Black, Grey
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home x64, Windows XP Professional x64
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.	Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks

System requirements
USB required

Power
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	1 W
USB powered The device can be powered via a USB connection.

Weight & dimensions
Width The measurement or extent of something from side to side.	161.4 mm
Depth The distance from the front to the back of something.	174.4 mm
Height The measurement of the product from head to foot or from base to top.	10.8 mm
Tablet weight	279 g
Pen dimensions LxD	140.5 x 9 mm
Pen weight How heavy the pen is.	7 g

Packaging content
Cables included	USB
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Mouse
Mouse included A mouse is included with this product.

Other features
Integrated pen storage cavity

Logistics data
Harmonized System (HS) code	84713000
