Model Code: VL-U3M2S-V

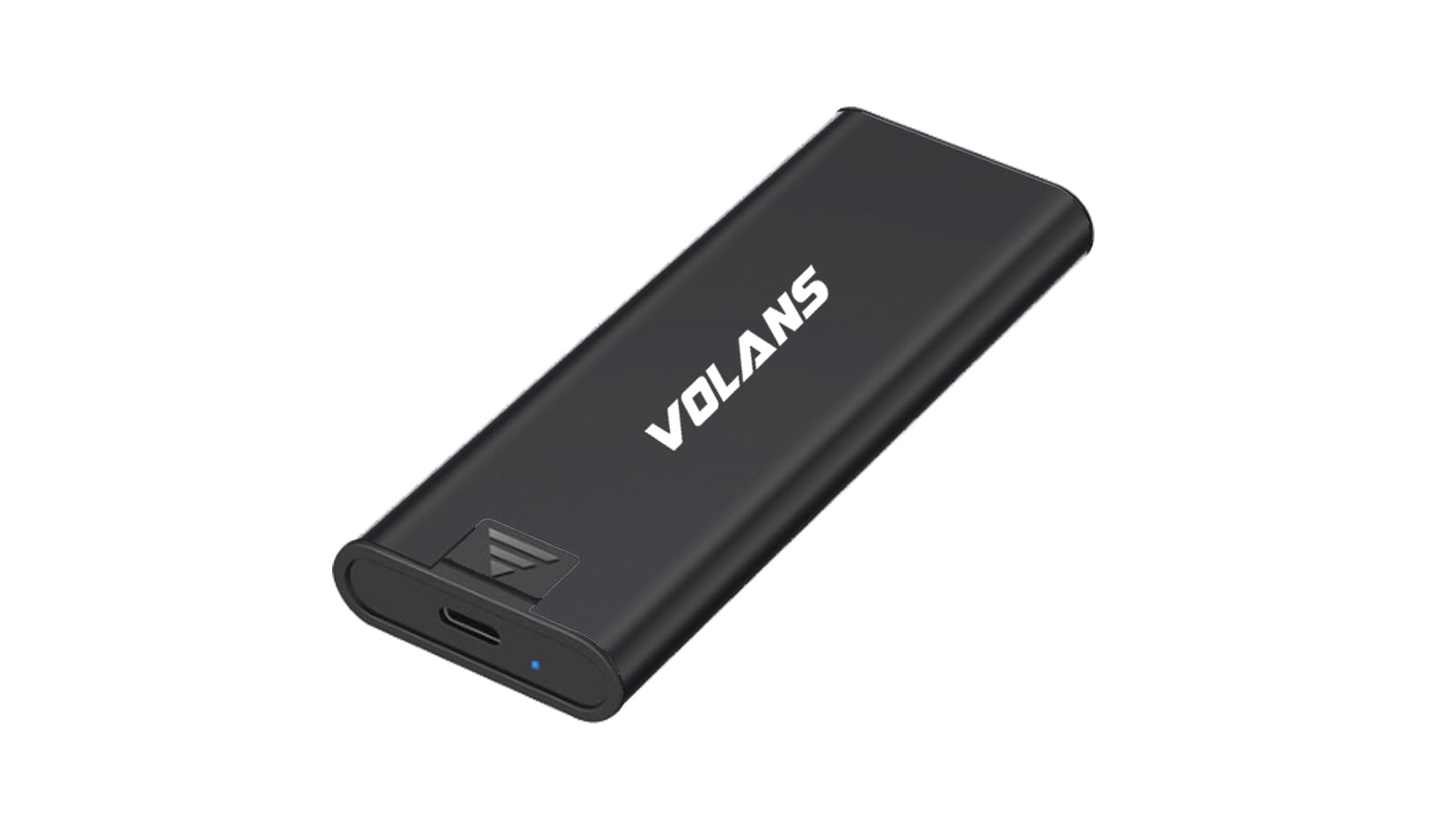

Description: USB-C to M.2 SATA SSD Mini External Enclosure
Main Chip: JMS576
Material: Aluminum
Cable: USB-C (M) to USB-A (M) cable
Power Requirements: DC5V
OS Requirements: Windows2000 / XP / VISTA/7/8/10, Mac OS 9.X and Linux2.4.2.
- Designed for SATA based M.2 SSDs only
- Convert an SATA M.2 SSD to a USB-C external drive
- Premium aluminium exterior with small, portable design
- Support USB Super-speed Gen1(5Gbps)/High-speed(480Mbps)/Full-speed(12Mbps) operation.
- Supports M.2 modules in format 2280, 2260, 2242 and 2230, up to 4TB
- Fits size：30*22mm/42*22mm/60*22mm/80*22mm
- LED power/status indicators
- Easy installation
- Support windows 7/8/10, Mac10.x, Linux 2.4.2 and above
Specification
| Model Code: | VL-U3M2S-V |
| Description: | USB-C to M.2 SATA SSD Mini External Enclosure |
| Main Chip | JMS576 |
| Interfaces: | USB Super-speed(5Gbps)/
High-speed(480Mbps)/Full-speed(12Mbps) operation. Compliance with USB Mass Storage Class, Bulk-Only Transport Specification |
| Application: | Supports SATA M.2 modules in format 2280, 2260, 2242 and 2230, up to 4TB. DOES NOT SUPPORT NVMe SSD!! |
| Dimensions: | 106.5 (L) x41 (W) x 12.5(H) mm |
| Material: | Aluminum |
| Cable: | USB-C (M) to USB-A (M) cable |
| LED Indicator: | Power and HDD activity |
| Power Requirements: | DC5V supplied by the Computer |
| OS Requirements | Windows2000 / XP / VISTA/7/8/10, Mac OS 9.X and Linux2.4.2. |
| Storage | |
| Number of storage drives supported How many storage drives can be fit into the product at once. | 1 |
| Storage drive size The size of the storage drive, given in inches (''). | M.2 |
| Supported storage drive interfaces | Serial ATA III |
| NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices. |
 |
| Maximum storage capacity The maximum amount of data that can be stored in the device. | 4 TB |
| Ports & interfaces | |
| USB connectivity The product has USB connector. |
 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| USB connector type The type of USB connector/port that this product has. | USB Type-C |
| USB connector gender | Female |
| USB ports quantity | 1 |
| Design | |
| Product type The sub-category of the product. | SSD enclosure |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Material The material from which a thing is or can be made e.g. wood, plastic. | Aluminium |
| LED indicators | Power, SSD |
| Performance | |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 5 Gbit/s |
| Power | |
| Power source type What the power source is. | USB |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 106.5 mm |
| Depth The distance from the front to the back of something. | 12.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 41 mm |
| SKU | 640437 |
| MPN | VL-U3M2S-V |
| Brand | Volans |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping, In Stock at Bankstown, In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.volans.com.au/ |
