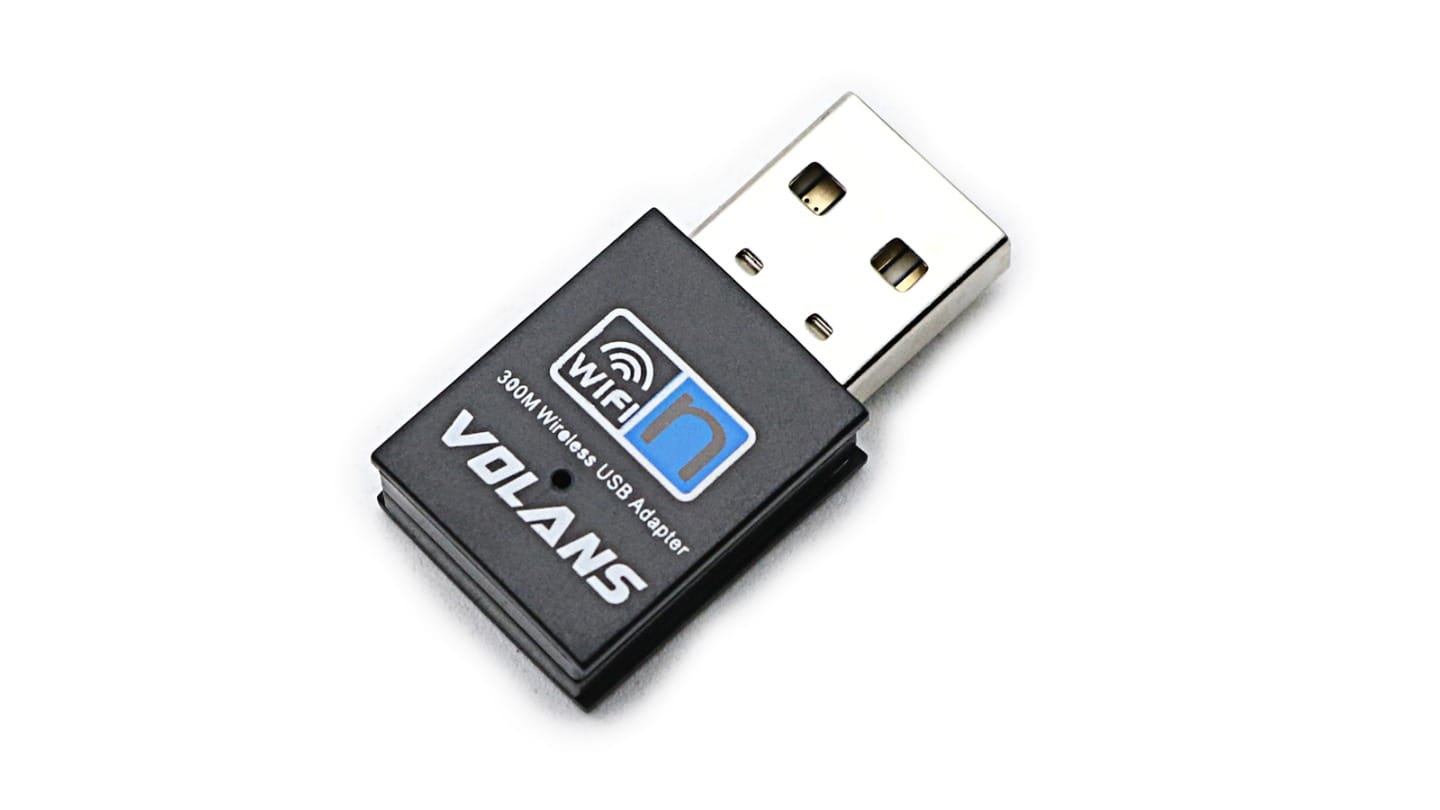

Adding Wireless-N to your computer and provides wireless connection
Complies with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n standards
USB 2.0 interface, wireless N speed up to 300Mbps
Soft AP mode for local network sharing
2×2 Multiple-Input Multiple-Output (MIMO) technology
Built-in omni-directional internal antenna for better performance
Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions
Easy to install, built-in driver with Windows 11 support
Ports & interfaces
Connectivity technology
The technology that enables connectivity of the device, e.g. wired or wireless.
Wireless
Host interface
Interface that enables a host controller to communicate with a driver.
USB
Interface
Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2.
WLAN
USB connector form factor
Straight
USB version
Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.
2.0
Network
Maximum data transfer rate
The maximum speed with which data can be transmitted from one device to another.
300 Mbit/s
Networking standards
The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g.
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Ethernet LAN
An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Wi-Fi
Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi band
The frequency bands the product features.
Single-band (2.4 GHz)
Frequency range
2.4 - 2.4835 GHz
Top Wi-Fi standard
Connection of this device is done via Wi-Fi in a high standard.
Wi-Fi 4 (802.11n)
Wi-Fi standards
The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.
802.11b,802.11g,Wi-Fi 4 (802.11n)
WLAN data transfer rates supported
300 Mbit/s
Modulation
Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel.
16-QAM,64-QAM,BPSK,CCK,QPSK
Security algorithms
Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.
64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK
Design
Product colour
The colour e.g. red, blue, green, black, white.
Black
Internal
The product is built in.
Antenna
Antenna design
Internal
Antenna type
Type of antenna, also known an aerial, e.g. external, internal.
2x2
Antenna direction type
Omni-directional
System requirements
Windows operating systems supported
Windows vesions wich can be used with the device.
Windows 11
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
