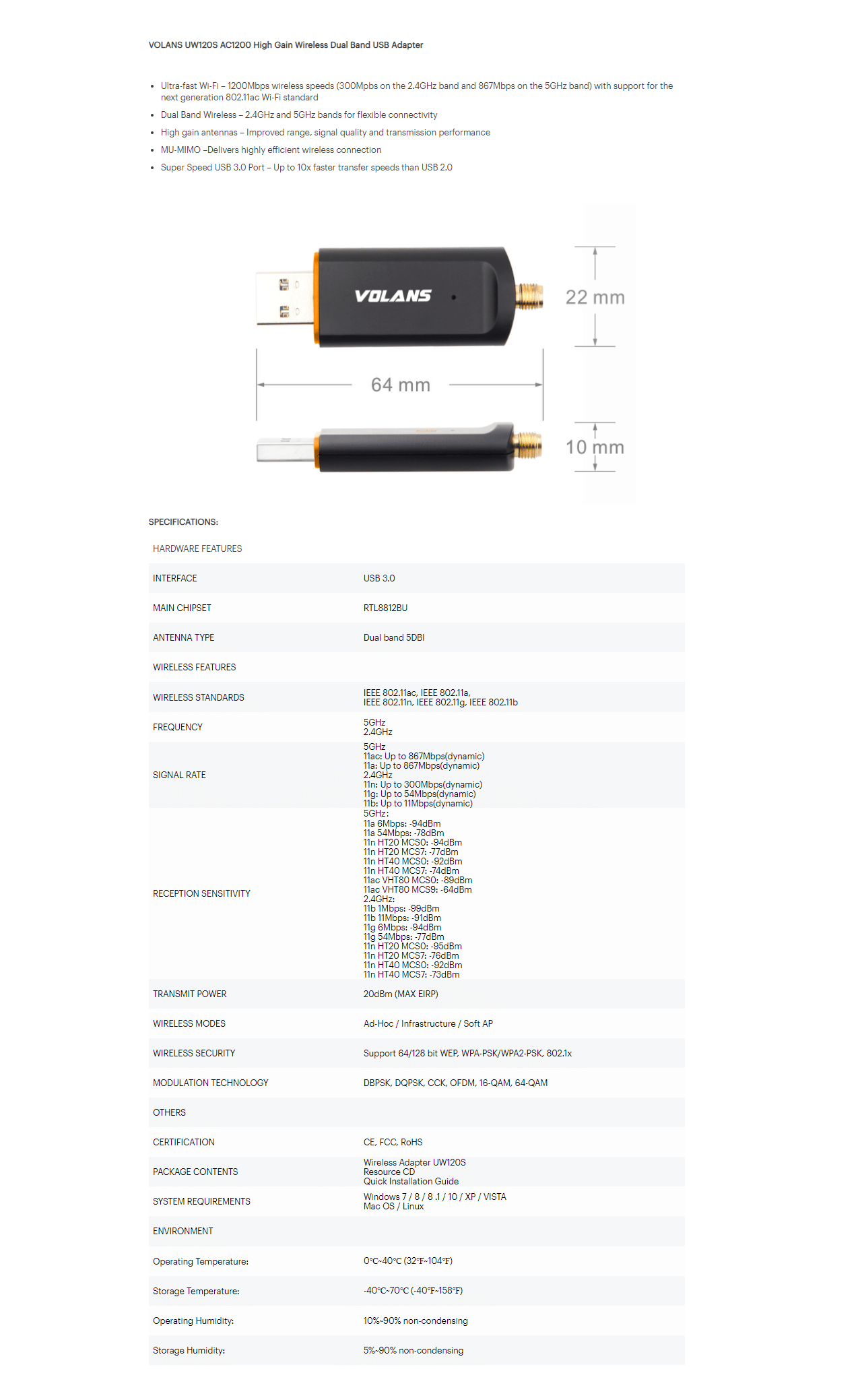

Ultra-fast Wi-Fi: 1200Mbps wireless speeds (300Mpbs on the 2.4GHz band and 867Mbps on the 5GHz band) with support for the next generation 802.11ac Wi-Fi standard - Dual Band Wireless: 2.4GHz and 5GHz bands for flexible connectivity - High gain antennas: Improved range, signal quality and transmission performance - MU-MIMO: Delivers highly efficient wireless connection - Super Speed USB 3.0 Port: Up to 10x faster transfer speeds than USB 2.0
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4; 5 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Modulation Modulation is the process of varying one or more properties of a periodic waveform, called the carrier signal (High Frequency Signal), with a modulating signal which typically contains information to be transmitted. The aim of digital modulation is to transfer a digital bit stream over an analog bandpass channel, for example over the public switched telephone network (where a bandpass filter limits the frequency range to between 300 and 3400 Hz), or over a limited radio frequency band. The aim of analog modulation is to transfer an analog baseband (or lowpass) signal, for example an audio signal or TV signal, over an analog bandpass channel at a different frequency, for example over a limited radio frequency band or a cable TV network channel. | 16-QAM,64-QAM,CCK,DBPSK,DQPSK,OFDM |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | USB |
| Connector gender To distinguish parts on a cable interface, connectors are grouped under genders. Sockets or jacks are considered to be female whilst plugs are referred to as male. | Male |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Technical details | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Quick installation guide |
 |
| SKU | 518189 |
| MPN | VL-UW120S |
| Brand | Volans |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.volans.com.au/ |
