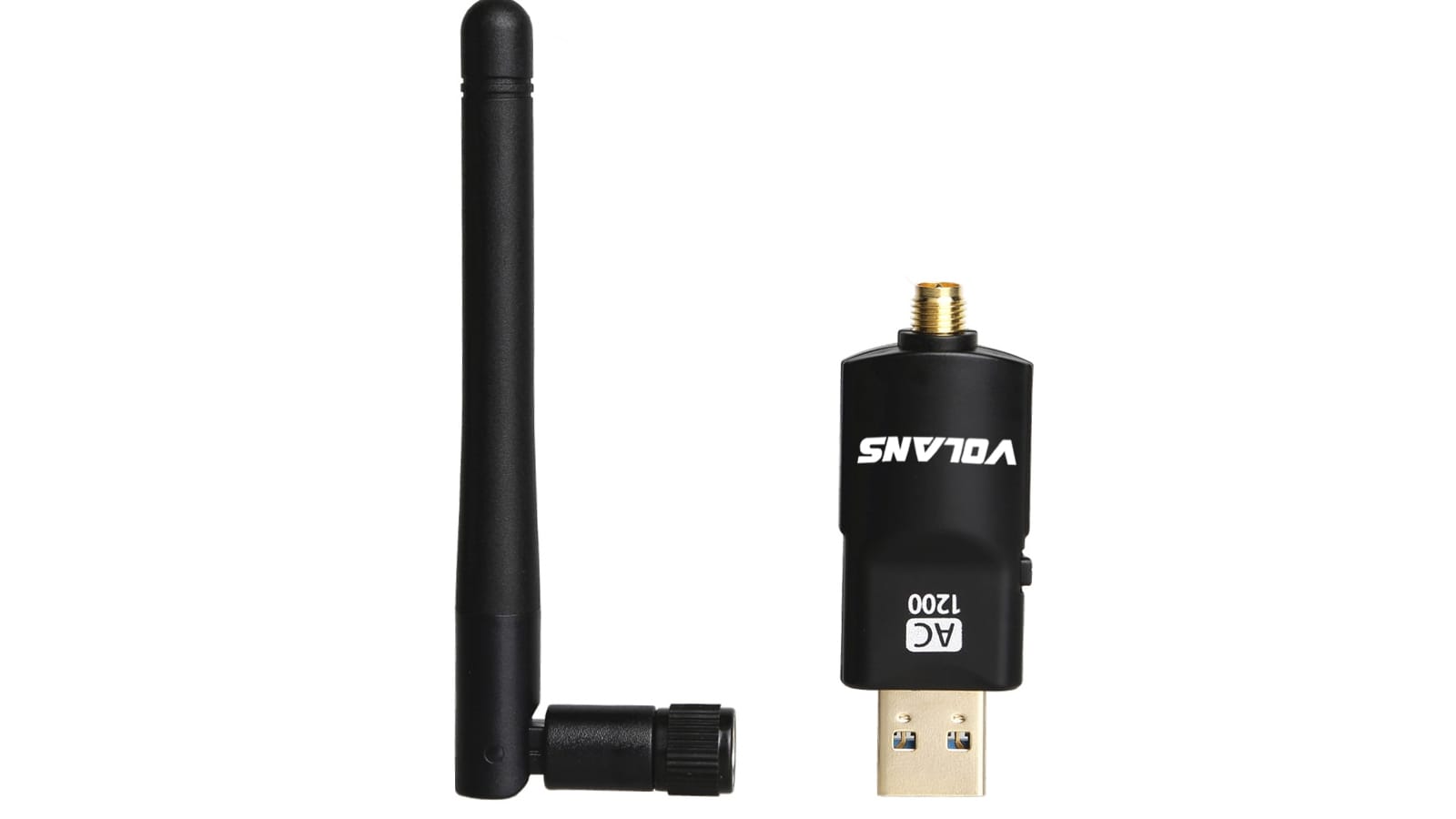

Volans VL-UW120 Dual Band Wireless USB3.0 Adapter connects a Windows or Mac computer to next generation 802.11ac wireless.
Features
- Ultra-fast 1200 (867+300)Mbps wireless speed with 802.11ac
- Dual Band connections for lag-free HD video streaming and gaming
- Super Speed USB 3.0 port—Up to 10x faster than USB 2.0
- Easy wireless security encryption at a push of the WPS button
- High gain external antennas deliver enhanced reception and transmission performance
Specification
| HARDWARE FEATURES | |
|---|---|
| INTERFACE | USB 3.0 |
| MAIN CHIPSET | RTL8812 |
| DIMENSIONS ( W X D X H ) | 55×80×88mm |
| ANTENNA TYPE | Dual band 2DBI |
| WIRELESS FEATURES | |
|---|---|
| WIRELESS STANDARDS | IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| FREQUENCY | 5GHz 2.4GHz |
| SIGNAL RATE | 5GHz 11ac: Up to 867Mbps(dynamic) 11a: Up to 867Mbps(dynamic) 2.4GHz 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
| RECEPTION SENSITIVITY | 5GHz： 11a 6Mbps: -94dBm 11a 54Mbps: -78dBm 11n HT20 MCS0: -94dBm 11n HT20 MCS7: -77dBm 11n HT40 MCS0: -92dBm 11n HT40 MCS7: -74dBm 11ac VHT80 MCS0: -89dBm 11ac VHT80 MCS9: -64dBm 2.4GHz: 11b 1Mbps: -99dBm 11b 11Mbps: -91dBm 11g 6Mbps: -94dBm 11g 54Mbps: -77dBm 11n HT20 MCS0: -95dBm 11n HT20 MCS7: -76dBm 11n HT40 MCS0: -92dBm 11n HT40 MCS7: -73dBm |
| TRANSMIT POWER | 20dBm (MAX EIRP) |
| WIRELESS MODES | Ad-Hoc / Infrastructure / Soft AP |
| WIRELESS SECURITY | Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
| MODULATION TECHNOLOGY | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| OTHERS | |
|---|---|
| CERTIFICATION | CE, FCC, RoHS |
| PACKAGE CONTENTS | Wireless Adapter UW120 Resource CD Quick Installation Guide |
| SYSTEM REQUIREMENTS | Windows 7 / 8 / 8 .1 / 10 / XP / VISTA Mac OS / Linux |
| ENVIRONMENT | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| WARRANTY | Limited 1-Year Warranty |
| SKU | 334467 |
| MPN | VL-UW120 |
| Brand | Volans |
| Product Condition | Brand New/Unused |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.volans.com.au/ |
