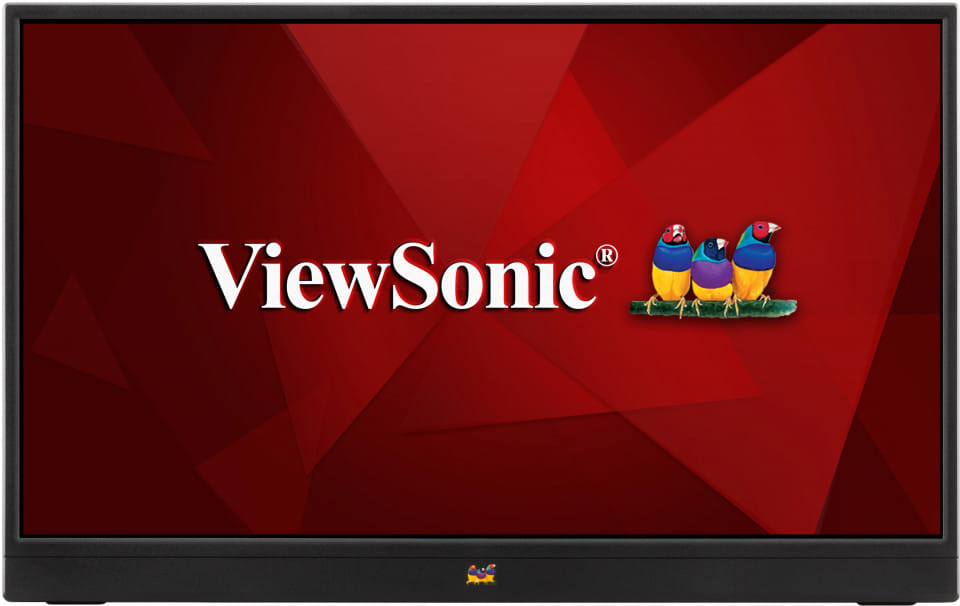

Viewsonic VA1655, 40,6 cm (16"), 1920 x 1080 pixels, Full HD, LED, 7 ms, Black
The ViewSonic VA1655 is a portable 16" Full HD monitor perfect for overcoming one-screen limitations outside the office. Extend the screen from phones, tablets, or laptops for mobile work, one-on-one presentations, or leisure entertainment. The two universal USB Type C connectors provide a one-cable solution for audiovisual and power signal transmission. The adjustable stand and pivot-able display will support your working angles.
Extend Your Content from Mobile Devices
Not only HDMI, you also can extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, iOS and iPadOS*. Be sure your laptop, tablet, or smartphone has a full-function USB-C connector that supports Display Port 1.2 Alt Mode and Power Delivery.
*To connect on iPhone or iPad with a lightning port, you will require to purchase a Lightning Digital AV Adapter from apple.com and connect via a HDMI to mini HDMI cable**.
**The HDMI to mini HDMI cable is included in the box.
Anywhere with Laptops, Tablets, and Phones
Audiovisual Extension while Power Charging
Broadcast your built-in Type C mobile device's multimedia onto a bigger screen and charge over one cable while powering from an external power bank/outlet over the other USB Type C cable.
*Power Charging:
1. For longer use, connect to an external power bank or outlet.
2. For temporary use, connect to your mobile device only.
1> Over 2 hours when powering from your phone - Tested with the phone's built-in battery at a capacity of 4,000 mAh.
a. The phone is on, but with a blank screen.
b. The portable monitor has a brightness value of 15 and a contrast value of 70.
c. Connected by a USB Type C cable.
2> Over 1.5 hours when powering from your laptop - Tested with the laptop's built-in battery at a capacity of 53,546 mAh.
a. The laptop is on; the screen is on.
b. The portable monitor has a brightness value of 100 and a contrast value of 70.
c. Connected by a USB Type C cable.
Flexible Setup with USB Type C and mini HDMI
Portable Size for Work & Fun
Larger, 16" display than most common laptops and weighing less than 1 kg with stylish sleeve case. It perfectly outfits your mobile workplace, and can be used for multimedia play when taking a break.
Working in Your Preferred Angles
View in a wide range of angles by adjusting the attached stand.
Up to 53 Degree Tilt
Supports Vertical Layout
Besides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc.
Pivot-able Display
One-piece Design
With the plastic case and endurable hinge, the foldable stand makes the whole monitor a one-piece design.
Endurable hinge & Foldable stand
Extend Your Content from Mobile Devices
Not only HDMI, you also can extend your screen anywhere with your built-in USB Type C laptop, tablet, or phone. It supports Windows, Android, Chrome, MacOS, iOS and iPadOS*. Be sure your laptop, tablet, or smartphone has a full-function USB-C connector that supports Display Port 1.2 Alt Mode and Power Delivery.
*To connect on iPhone or iPad with a lightning port, you will require to purchase a Lightning Digital AV Adapter from apple.com and connect via a HDMI to mini HDMI cable**.
**The HDMI to mini HDMI cable is included in the box.
Anywhere with Laptops, Tablets, and Phones
Audiovisual Extension while Power Charging
Broadcast your built-in Type C mobile device's multimedia onto a bigger screen and charge over one cable while powering from an external power bank/outlet over the other USB Type C cable.
*Power Charging:
1. For longer use, connect to an external power bank or outlet.
2. For temporary use, connect to your mobile device only.
1> Over 2 hours when powering from your phone - Tested with the phone's built-in battery at a capacity of 4,000 mAh.
a. The phone is on, but with a blank screen.
b. The portable monitor has a brightness value of 15 and a contrast value of 70.
c. Connected by a USB Type C cable.
2> Over 1.5 hours when powering from your laptop - Tested with the laptop's built-in battery at a capacity of 53,546 mAh.
a. The laptop is on; the screen is on.
b. The portable monitor has a brightness value of 100 and a contrast value of 70.
c. Connected by a USB Type C cable.
Flexible Setup with USB Type C and mini HDMI
Portable Size for Work & Fun
Larger, 16" display than most common laptops and weighing less than 1 kg with stylish sleeve case. It perfectly outfits your mobile workplace, and can be used for multimedia play when taking a break.
Working in Your Preferred Angles
View in a wide range of angles by adjusting the attached stand.
Up to 53 Degree Tilt
Supports Vertical Layout
Besides common horizontal content, you may setup a pivot screen for table-reviewing, programming, photo-editing, gaming, etc.
Pivot-able Display
One-piece Design
With the plastic case and endurable hinge, the foldable stand makes the whole monitor a one-piece design.
Endurable hinge & Foldable stand
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 40.6 cm (16") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Display technology The technology used in the display e.g. plasma, LED. | LED |
| Panel type | IPS |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Display brightness (typical) Display brightness, measured by its Luminance, presented as a figure in nits. Typical brightness ratings for monitors range from 250 to 350 nits with a target value of between 80 to 120 nits being suitable for most displays in a normal viewing environment. | 250 cd/m² |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 250 cd/m² |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 7 ms |
| Anti-glare screen Always gives an optimal view, even in direct sunlight. |
 |
| Screen shape | Flat |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 800:1 |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 50000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 16.2 million colours |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.179 x 0.179 mm |
| Digital horizontal frequency | 15 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Surface hardness | 3H |
| Colour depth | 8 bit |
| sRGB coverage (typical) | 64% |
| NTSC coverage (typical) | 45% |
| Multimedia | |
| Number of speakers The quantity of speakers included in/with the product. | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 0.8 W |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Design | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Business |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB upstream port type | USB Type-C |
| USB Type-C DisplayPort Alternate Mode |
|
| HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| Mini HDMI ports quantity The new HDMI mini connector, next to the regular HDMI connector, is designed to be used with small portable devices such as camcorders and digital still cameras. | 1 |
| Headphone out The socket for connecting headphones to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Ergonomics | |
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Pivot |
|
| Tilt adjustment The tilt, which means the angle at which the device is pointing (up or down), can be changed. |
|
| Tilt angle range | 30 - 53° |
| Power | |
| Energy efficiency class (SDR) | C |
| Energy consumption (SDR) per 1000 hours | 7 kWh |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 7 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.3 W |
| Power consumption (max) The maximum amount of power used by the device. | 7.3 W |
| Energy efficiency scale | A to G |
| European Product Registry for Energy Labelling (EPREL) code | 782845 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width (with stand) | 359.3 mm |
| Depth (with stand) | 17.4 mm |
| Height (with stand) | 227 mm |
| Weight (with stand) | 700 g |
| Width (without stand) | 359.3 mm |
| Depth (without stand) | 17.4 mm |
| Height (without stand) | 227 mm |
| Weight (without stand) | 700 g |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 434 mm |
| Package depth The distance from the front to the back of the packaging. | 88 mm |
| Package height The distance from the top to the bottom of the packaging. | 391 mm |
| Packaging content | |
| Cables included | USB Type-C |
| Other features | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | Windows 10 certified macOS tested |
| Compliance certificates | REACH, RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| SKU | 817497 |
| MPN | VA1655-3 |
| Brand | ViewSonic |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.viewsonic.com/ |
