ViewSonic 32' 1080p Open Frame 10-Point PCAP Touch Monitor, 24/7 Operation and HDMI, DisplayPort and RS232, Kiosk, Factory, IP54 Front waterPF
TD3207
32' Open Frame Touch Monitor with 24/7 Operation
Durable and scratch-resistant IP54 front touchscreen

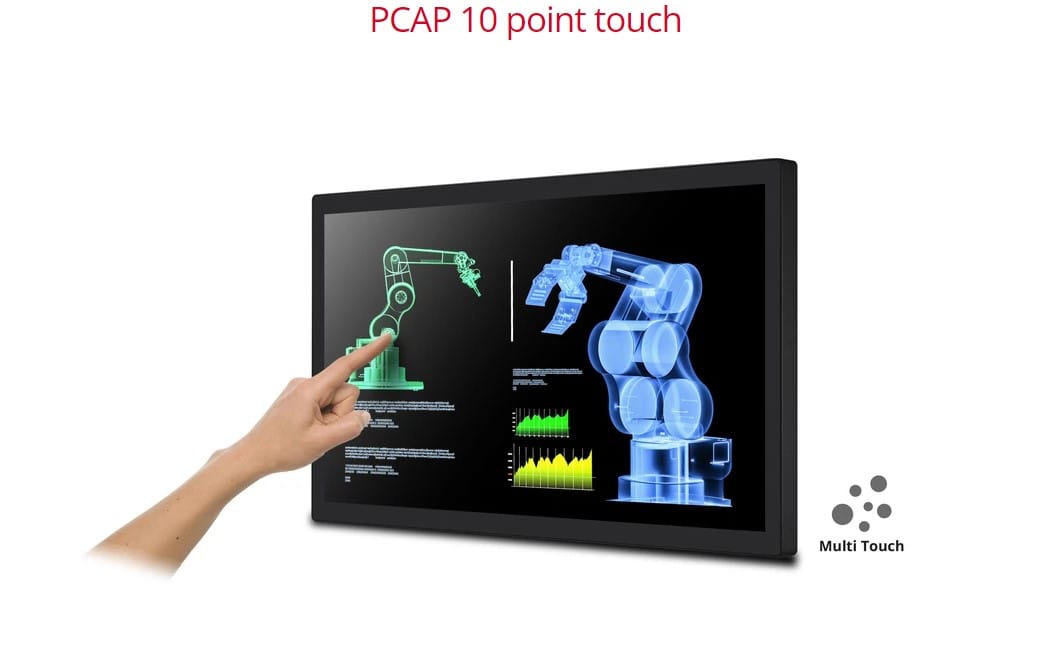

Highly responsive 10-points PCAP touch technology
Long-lasting 24/7 usage
Adaptable to multi-screen orientations
Ease of installation with VESA-mountable design
IP54 Front Waterproof Screen
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
USB 2.0 Type B: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: DC Socket (Center Positive)
RS232 In: 1
32' Open Frame Touch Monitor with 24/7 Operation
Durable and scratch-resistant IP54 front touchscreen
Highly responsive 10-points PCAP touch technology
Long-lasting 24/7 usage
Adaptable to multi-screen orientations
Ease of installation with VESA-mountable design
IP54 Front Waterproof Screen
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
USB 2.0 Type B: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
DisplayPort: 1
Power in: DC Socket (Center Positive)
RS232 In: 1
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 81.3 cm (32") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Display technology The technology used in the display e.g. plasma, LED. | LED |
| Panel type | VA |
| LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display. |
 |
| Backlight type | LED |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Touchscreen technology | Capacitive |
| Touch technology Technology of touch sensetive screen e.g. dual-touch. | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 450 cd/m² |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 5 ms |
| Screen shape | Flat |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 3000:1 |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 50000000:1 |
| Maximum refresh rate | 60 Hz |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 16.78 million colours |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.364 x 0.364 mm |
| Horizontal scan range | 15 - 73 kHz |
| Vertical scan range | 47 - 75 Hz |
| Digital horizontal frequency | 15 - 73 kHz |
| Digital vertical frequency | 47 - 75 Hz |
| Surface hardness | 7H |
| Colour gamut standard | NTSC |
| Colour gamut | 72% |
| Performance | |
| NVIDIA G-SYNC |
 |
| AMD FreeSync The product includes AMD Freesync Technology for the dynamic synchronization of the graphic card and the monitor in order to avoid screen tearing. |
|
| Multimedia | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of speakers The quantity of speakers included in/with the product. | 2 |
| Design | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP54 |
| Glass thickness | 3 mm |
| Certification | Regulations: CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, UKCA |
| Ports & interfaces | |
| USB upstream port type | USB Type-B |
| Number of upstream ports | 1 |
| HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| Audio output The type of audio output that the device produces, and the connector(s). | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Ergonomics | |
| VESA mounting |
|
| Power | |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 25.8 kWh |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 43 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| Power consumption (max) The maximum amount of power used by the device. | 45.5 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power supply type The type of power supply which this product uses. | AC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width (with stand) | 747 mm |
| Depth (with stand) | 451 mm |
| Height (with stand) | 64 mm |
| Weight (with stand) | 12.8 kg |
| Width (without stand) | 747 mm |
| Depth (without stand) | 451 mm |
| Height (without stand) | 64 mm |
| Weight (without stand) | 12.8 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 863 mm |
| Package depth The distance from the front to the back of the packaging. | 577 mm |
| Package height The distance from the top to the bottom of the packaging. | 163 mm |
| Package weight Weight of the packaged product. | 15.5 kg |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| SKU | 806202 |
| MPN | TD3207 |
| Brand | ViewSonic |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 31.50 Inch |
| Refresh Rate (Hz) | 60Hz |
| Screen Resolution | 1920x1080 (FHD/1080p) |
| Input | DisplayPort / DP, HDMI |
