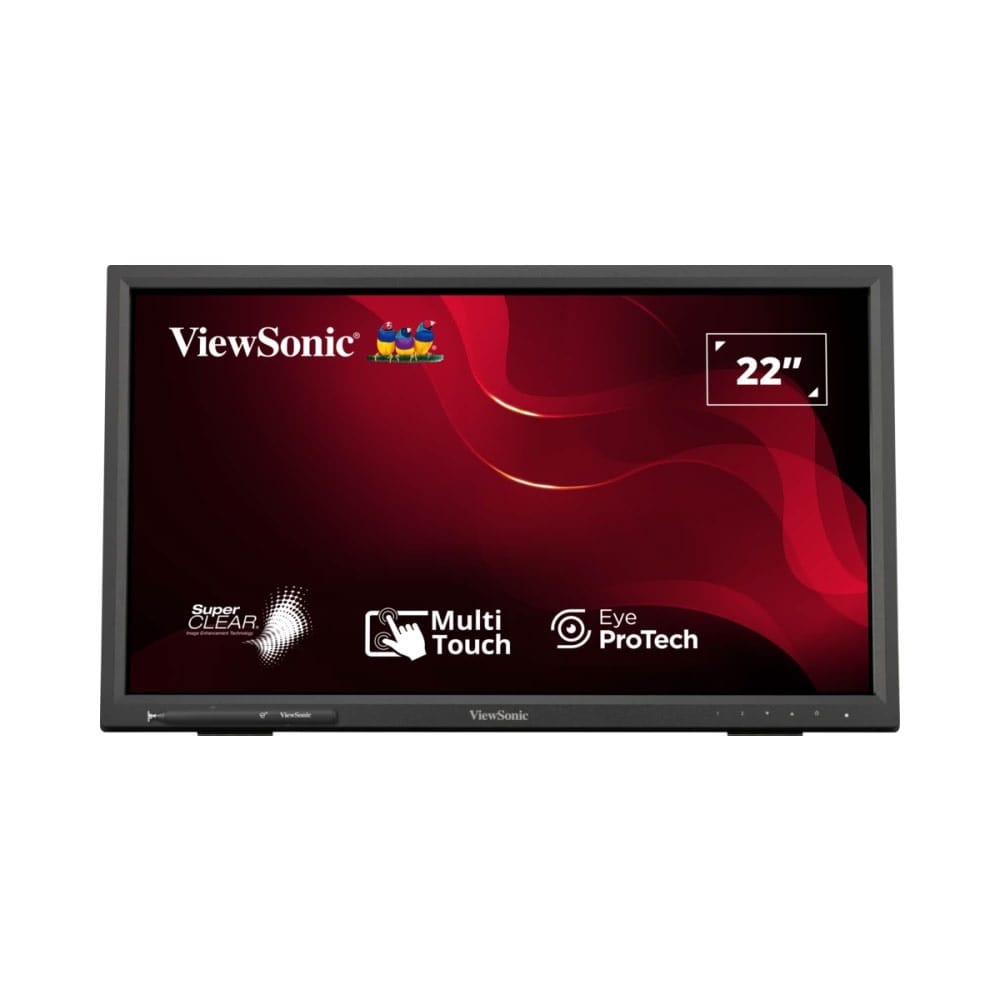

The ViewSonic® TD2223-2 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 55.9 cm (22") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Display technology The technology used in the display e.g. plasma, LED. | LCD |
| Panel type | VA |
| LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display. |
 |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Touchscreen technology | Infrared |
| Touch technology Technology of touch sensetive screen e.g. dual-touch. | Multi-touch |
| Number of simultaneous touchpoints | 10 |
| Display brightness (typical) Display brightness, measured by its Luminance, presented as a figure in nits. Typical brightness ratings for monitors range from 250 to 350 nits with a target value of between 80 to 120 nits being suitable for most displays in a normal viewing environment. | 250 cd/m² |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 6.5 ms |
| Display surface | Gloss |
| Screen shape | Flat |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 3000:1 |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 20000000:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 0.249 x 0.241 mm |
| Display diagonal (metric) This is the size of the display screen, measured diagonally. | 55.9 cm |
| Colour depth | 8 bit |
| sRGB coverage (typical) | 104% |
| NTSC coverage (typical) | 72% |
| Performance | |
| NVIDIA G-SYNC |
 |
| AMD FreeSync The product includes AMD Freesync Technology for the dynamic synchronization of the graphic card and the monitor in order to avoid screen tearing. |
|
| Flicker-free technology |
|
| Low Blue Light technology |
|
| Multimedia | |
| Number of speakers The quantity of speakers included in/with the product. | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 4 W |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Built-in camera The product has an integrated camera. |
|
| Design | |
| Market positioning Under which category can the device be positioned in the market, e.g. camera phone. | Office |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Feet colour The colour of the feet, which are the projecting part on which a device/piece of furniture, or each of its legs, stands. | Black |
| Glass thickness | 2 mm |
| Ports & interfaces | |
| Built-in USB hub Whether or not the device features a USB hub to connect more than one other device via USB. |
|
| USB hub version | 2.0 |
| Number of USB Type-B upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 2 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
|
| DVI-D ports quantity This is the amount of DVI-I interfaces. Digital Visual Interface (DVI) is a video display interface developed by the Digital Display Working Group (DDWG). The digital interface is used to connect a video source to a display device, such as a computer monitor. DVI-D means DVI digital, which means it can only support digital, but not analog. | 1 |
| HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 1.4 |
| Headphone out The socket for connecting headphones to the device. |
|
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Headphone connectivity How headphones connect to a device e.g. wirelessly or via a cable and connector. | 3.5 mm |
| AC (power) in |
|
| Ergonomics | |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 100 x 100 mm |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc. |
|
| Cable lock slot type | Kensington |
| Height adjustment The part of the device that can be adjusted to change the height. |
|
| Tilt adjustment The tilt, which means the angle at which the device is pointing (up or down), can be changed. |
|
| Tilt angle range | 20 - 40° |
| On Screen Display (OSD) |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 18.5 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| Power consumption (max) The maximum amount of power used by the device. | 21.8 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Power supply type The type of power supply which this product uses. | Internal |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Weight & dimensions | |
| Width (with stand) | 519 mm |
| Depth (with stand) | 101 mm |
| Height (with stand) | 329 mm |
| Weight (with stand) | 4.2 kg |
| Width (without stand) | 519 mm |
| Depth (without stand) | 61 mm |
| Height (without stand) | 308 mm |
| Weight (without stand) | 3.7 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 580 mm |
| Package depth The distance from the front to the back of the packaging. | 162 mm |
| Package height The distance from the top to the bottom of the packaging. | 405 mm |
| Package weight Weight of the packaged product. | 5.7 kg |
| Packaging content | |
| Stand included |
|
| Cables included | AC, Audio, HDMI, USB Type-A to USB Type-B |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Other features | |
| Certification | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP |
| SKU | 783002 |
| MPN | TD2223-2 |
| Brand | ViewSonic |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 21.50 Inch |
| Refresh Rate (Hz) | 75Hz |
| Screen Resolution | 1920x1080 (FHD/1080p) |
| Input | DisplayPort / DP, HDMI, VGA / D-SUB |
| Stock Availability | Available for Shipping |
| Product Use | Business |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.viewsonic.com/ |
