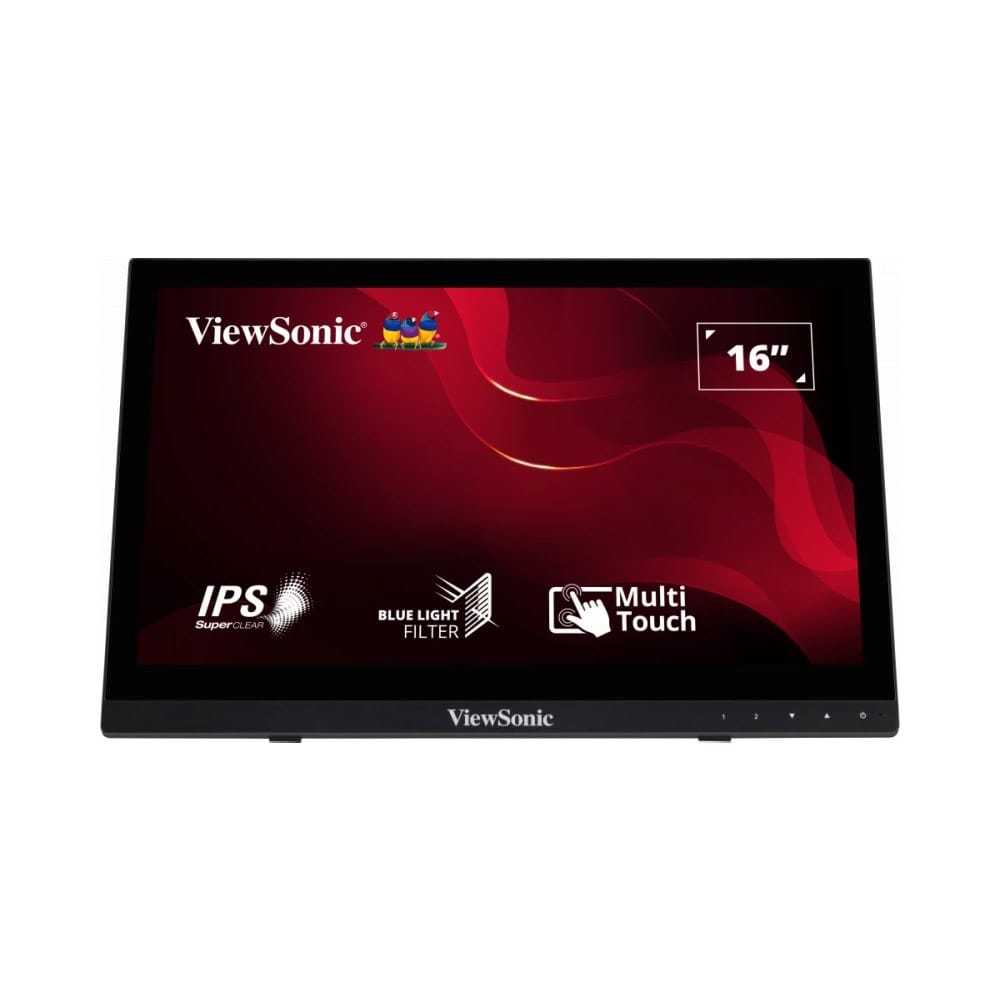

ViewSonic TD1630-3 16" 10 Point Touch Monitor

Display
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	39.6 cm (15.6")
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	1366 x 768 pixels
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	HD
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:9
Display technology The technology used in the display e.g. plasma, LED.	LCD
Panel type	TN
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive.	Multi-user
Touchscreen technology	Projected capacitive system
Touch technology Technology of touch sensetive screen e.g. dual-touch.	Multi-touch
Number of simultaneous touchpoints	10
Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)	12 ms
Screen shape	Flat
Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.	640 x 480 (VGA), 720 x 400, 720 x 480, 720 x 576, 800 x 600 (SVGA), 832 x 624, 1024 x 768 (XGA), 1152 x 870, 1280 x 720 (HD 720), 1366 x 768
Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black.	500:1
Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.	10000000:1
Maximum refresh rate	60 Hz
Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance.	90°
Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance.	60°
Display number of colours	262144 colours
Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image.	0.252 x 0.252 mm
Horizontal scan range	30 - 61 kHz
Vertical scan range	56 - 75 Hz
Display diagonal (metric) This is the size of the display screen, measured diagonally.	39.6 cm
Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.	220 cd/m²

Performance
NVIDIA G-SYNC
AMD FreeSync The product includes AMD Freesync Technology for the dynamic synchronization of the graphic card and the monitor in order to avoid screen tearing.
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10, Windows 7, Windows 8
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.

Multimedia
Built-in speaker(s) The device contains speaker(s) to produce sound.
Built-in camera The product has an integrated camera.
Number of speakers The quantity of speakers included in/with the product.	2
RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.	2 W
Built-in microphone Microphone that is found inside the product.

Design
Product colour The colour e.g. red, blue, green, black, white.	Black
Certification	CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, RCM, GEMS, BIS

Ports & interfaces
Built-in USB hub Whether or not the device features a USB hub to connect more than one other device via USB.
VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.	1
HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	1.4
Audio input The type of audio input that the device requires, and the connection needed.	1

Ergonomics
VESA mounting
Panel mounting interface The product can be used wih VESA mounting interfaces.	75 x 75 mm
Wall mountable The product can be mounted on (attached to ) a wall.
Tilt adjustment The tilt, which means the angle at which the device is pointing (up or down), can be changed.
Tilt angle range	15 - 50°

Power
Energy efficiency class (SDR)	B
Energy consumption (SDR) per 1000 hours	6 kWh
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	5.5 W
AC input voltage The voltage of the AC electricity that is inputted into the product.	100-240 V
AC input frequency	50 - 60 Hz
Power supply type The type of power supply which this product uses.	AC

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-20 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	5 - 90%

Packaging content
Cables included	AC, Audio (3.5mm), USB, VGA

Weight & dimensions
Width (with stand)	379.2 mm
Depth (with stand)	37.1 mm
Height (with stand)	247.1 mm
Weight (with stand)	1.32 kg

Packaging data
Package width The distance from one side of the packaging to the other.	453 mm
Package depth The distance from the front to the back of the packaging.	86 mm
Package height The distance from the top to the bottom of the packaging.	389 mm
Package weight Weight of the packaged product.	2.5 kg

Sustainability
Sustainability certificates	CE, ErP, REACH, RoHS
European Product Registry for Energy Labelling (EPREL) code	391332

Logistics data
Harmonized System (HS) code	85285210

Other features
Display viewable area (HxV)	344.23 x 193.54 mm
