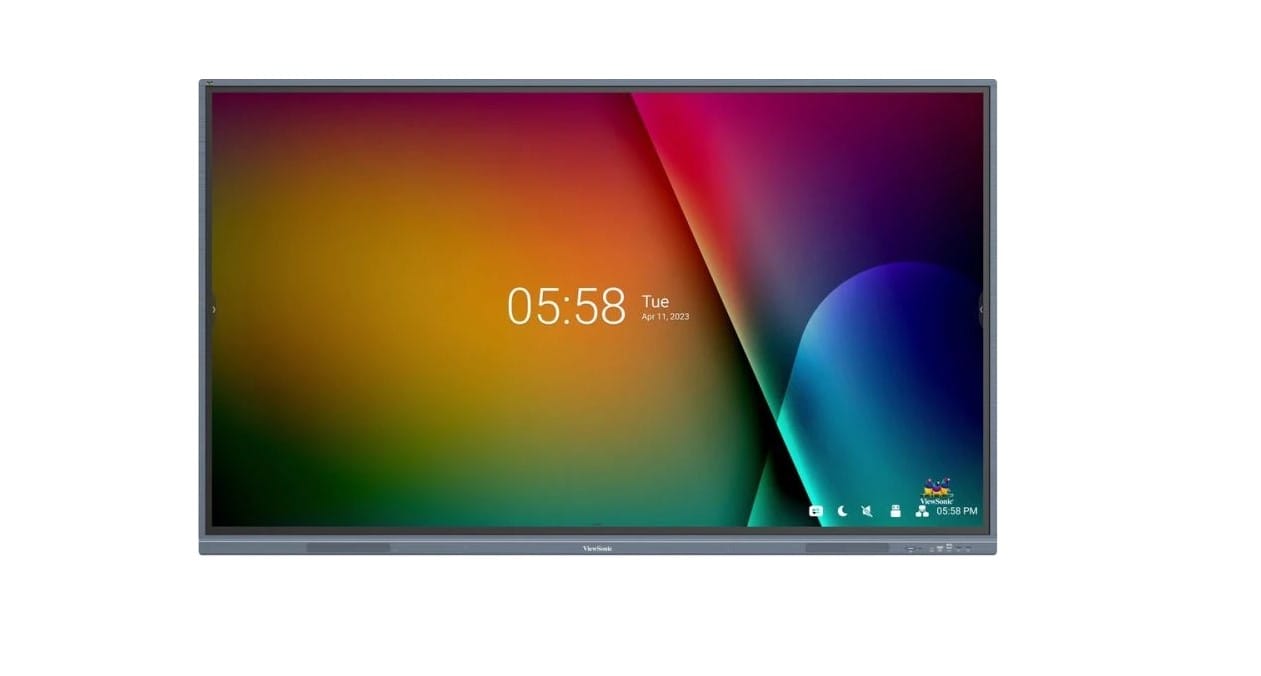

ViewSonic IFP7533-G 75" 4K Interactive USB-C Touchscreen Display
Item No:
806180
MPN:
IFP7533-G
$6,999.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Viewsonic 75' 4K Interactive Display, USB-C, Dual Pen. 33 Point Touch, IFP7533-G New. Android OS, 3 Years Advance Replacement
ViewBoard IFP7533-G
The ViewBoard IFP33 Series harmonises a touch display with versatile software to create a comprehensive classroom solution for interactive and engaging learning. This interactive flat panel delivers exceptional image quality in 4K UHD, thanks to cutting-edge bonding technology that provides clearer colours, enhanced contrast, and reduced glare. The 40-point touchscreen interface, equipped with Ultra Fine Touch Technology, empowers students and teachers to collaborate seamlessly, using either their fingers or dual-tip pens, for an intuitive pen-on-paper experience. Powerful built-in front-facing speakers and a USB-C port sort out for a complete and convenient multimedia experience. The ViewBoard IFP33 Series is pre-installed with myViewBoard to offer advanced lesson delivery options for teachers and powerful device management tools for administrators.
Integrated with myViewBoard software
Multi-tasking capabilities for enhanced lesson delivery
Embrace simplicity and organisation with the USB-C one-cable solution, offering 65W of Power Delivery.
Intuitive user interface and fast app launch for smooth operation
Native wireless screen sharing for Windows and Android devices via the built-in Miracast
Powered by Android 11
Optional Slot in PC VPC-37
Exclude Freight please provide post cost for freight cost on dropship
Optional VCV-VSB050 USB Wifi
Compatible Mount. Brateck X-Large Heavy-Duty Fixed Curved & Flat Panel Plasma/LCD TV Wall Mount Bracket for 60'- 100' TVs
MABT-LP37-69F
The ViewBoard IFP33 Series harmonises a touch display with versatile software to create a comprehensive classroom solution for interactive and engaging learning. This interactive flat panel delivers exceptional image quality in 4K UHD, thanks to cutting-edge bonding technology that provides clearer colours, enhanced contrast, and reduced glare. The 40-point touchscreen interface, equipped with Ultra Fine Touch Technology, empowers students and teachers to collaborate seamlessly, using either their fingers or dual-tip pens, for an intuitive pen-on-paper experience. Powerful built-in front-facing speakers and a USB-C port sort out for a complete and convenient multimedia experience. The ViewBoard IFP33 Series is pre-installed with myViewBoard to offer advanced lesson delivery options for teachers and powerful device management tools for administrators.
Integrated with myViewBoard software
Multi-tasking capabilities for enhanced lesson delivery
Embrace simplicity and organisation with the USB-C one-cable solution, offering 65W of Power Delivery.
Intuitive user interface and fast app launch for smooth operation
Native wireless screen sharing for Windows and Android devices via the built-in Miracast
Powered by Android 11
Optional Slot in PC VPC-37
Exclude Freight please provide post cost for freight cost on dropship
Optional VCV-VSB050 USB Wifi
Compatible Mount. Brateck X-Large Heavy-Duty Fixed Curved & Flat Panel Plasma/LCD TV Wall Mount Bracket for 60'- 100' TVs
MABT-LP37-69F
| Display | |
| Panel type | IPS |
| LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display. |
 |
| LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit. | Direct-LED |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 190.5 cm (75") |
| Display technology The technology used in the display e.g. plasma, LED. | LCD |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 3840 x 2160 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 350 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | 4K Ultra HD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
|
| Number of simultaneous touchpoints | 40 |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 8 ms |
| Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing. | 5000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display number of colours | 1.07 billion colours |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 4 |
| HDMI version | 2.0 |
| HDMI input ports quantity | 3 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB ports quantity | 6 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 1 |
| USB Power Delivery |
|
| USB Power Delivery up to | 65 W |
| USB Type-C DisplayPort Alternate Mode |
|
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| RS-232 interface |
|
| Remote (IR) input | 1 |
| OPS module slot |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of built-in speakers | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 16 W |
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Interactive flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 800 x 400 mm |
| Anti-glare screen Always gives an optimal view, even in direct sunlight. |
|
| Performance | |
| Purpose What the product is used for. | Education |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 30000 h |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 106 W |
| Power consumption (off) | 0.5 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| Computer system | |
| Computer system |
|
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor manufacturer The manufacturer that produced the processor. | ARM |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | ARM Cortex |
| Processor model The model number for the processor in a computer. | A55 |
| Processor architecture | ARM Cortex-A55 |
| Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform. | 1.5 GHz |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 4 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 8 GB |
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 128 GB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Android 11 |
| Weight & dimensions | |
| Display width | 1709 mm |
| Display depth | 88 mm |
| Display height | 1020 mm |
| Display weight | 47.3 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 1863 mm |
| Package depth The distance from the front to the back of the packaging. | 225 mm |
| Package height The distance from the top to the bottom of the packaging. | 1140 mm |
| Package weight Weight of the packaged product. | 60.5 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Batteries included |
|
| Cables included | AC, HDMI, USB |
| Mounting kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Certification | FCC/ICES003, EPEAT, CE EMC, LVD or CB, RoHS Green BOM & RoHS DoC, ErP, REACH SVHC List & DoC, EEL, WEEE, BSMI, BIS |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
| Technical details | |
| OPS slot | 1 |
| Other features | |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| Cable length How long the cable is. | 3 m |
| SKU | 806180 |
| MPN | IFP7533-G |
| Brand | ViewSonic |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 75.00 Inch |
| Refresh Rate (Hz) | 60Hz |
| Screen Resolution | 3840x2160 (UHD/4K) |
| Input | HDMI, VGA / D-SUB |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.viewsonic.com/ |
