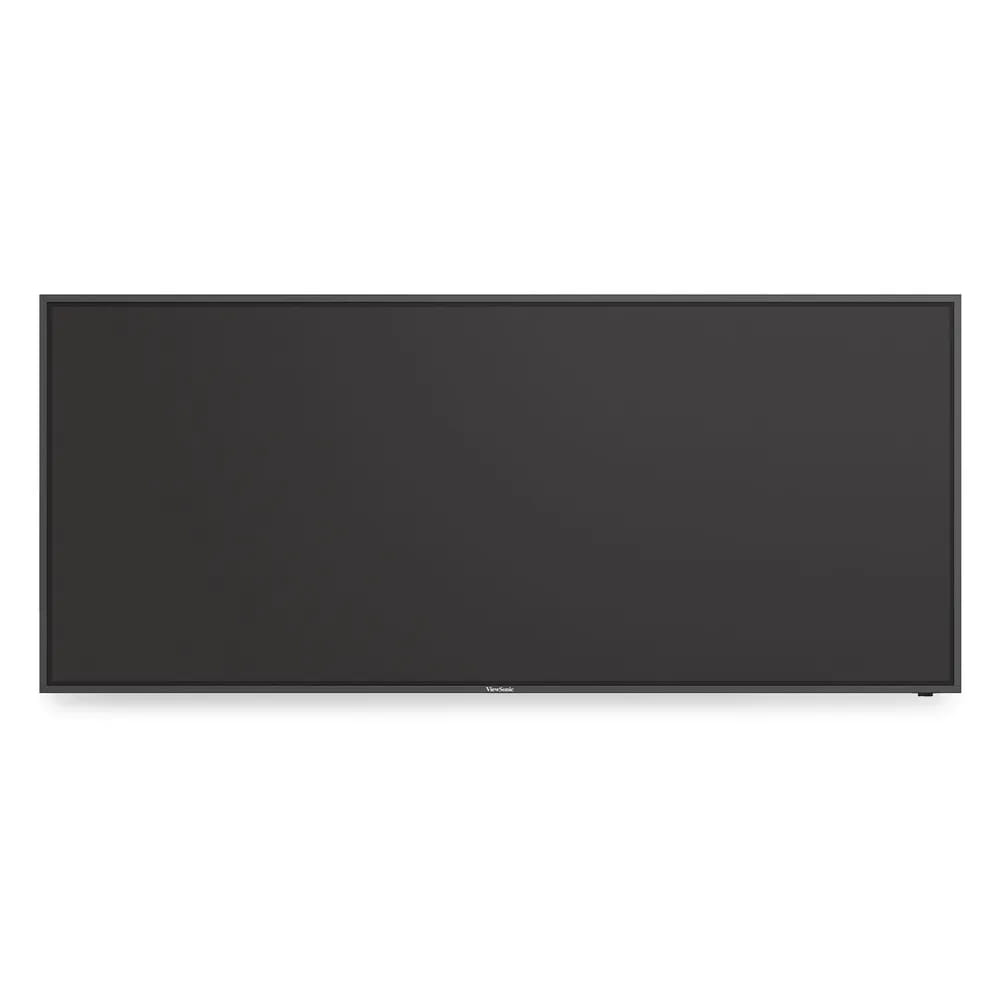

ViewSonic CDE92UW 92" 24/7 Commercial Display
Item No:
809864
MPN:
CDE92UW
$12,999.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 2-4 business days
Store Availability
- 3-5 business days at Bankstown Store
- 3-5 business days at Castle Hill Store
- 2-4 business days at Northmead Store
Shipping Estimate
Viewsonic CDE92UW, 2.34 m (92"), 2141.952 x 903.636 mm, 500 cd/m2, 1.07 billion colours, 5120 x 2160 pixels, IPS
The CDE92UW is an ultrawide 92" digital display delivering stunning image performance with 5K resolution. Designed for both corporate and commercial use, it features a 21:9 aspect ratio, providing 33% more screen real estate than a comparable 16:9 display, making it ideal for Microsoft Teams Rooms and Front Row Mode. Powered by an octa-core SoC running Android 13, the CDE92UW enables seamless multitasking with a USB-C port that delivers 100W and multiple wireless content sharing options. It also supports daisy chaining and comes pre-installed with ViewSonic Manager, a centralized platform that streamlines corporate communication and enhances operational efficiency.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 2.34 m (92") |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 500 cd/m² |
| Display number of colours | 1.07 billion colours |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 5120 x 2160 pixels |
| Anti-glare screen Always gives an optimal view, even in direct sunlight. |
 |
| Panel type | IPS |
| LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display. |
|
| LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit. | Direct-LED |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 21:9 |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 5000:1 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 6.5 ms |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Working area The area that can be worked on. | 2141.952 x 903.636 mm |
| Haze rate | 25% |
| Hardness A measure of how solid/firm/rigid something is. | 3H |
| Computer system | |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Android |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | 13 |
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor architecture | ARM Cortex A76 + ARM Cortex A55 |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 8 |
| Maximum internal memory The maximum internal memory which is available in the product. | 128 GB |
| RAM capacity | 8 GB |
| RAM type The type of RAM (random access memory) inside the device e.g. DDR3. | DDR4 |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of built-in speakers | 2 |
| Speaker power | 20 W |
| Built-in subwoofer The product has built-in subwoofer, which is a loudspeaker component designed to reproduce very low bass frequencies. |
|
| Subwoofer RMS power This is a measure of the continuous power (RMS power) produced by a subwoofer. | 2 W |
| Projector | |
| Built-in projector The device has an internal projector, to show images. |
 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 4 |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 4 |
| HDMI output ports quantity | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| Line-in |
|
| Line-out |
|
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Ergonomics | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 800 x 600 mm |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 2182 mm |
| Depth The distance from the front to the back of something. | 85.2 mm |
| Height The measurement of the product from head to foot or from base to top. | 943.8 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 42.5 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 2350 mm |
| Package depth The distance from the front to the back of the packaging. | 216 mm |
| Package height The distance from the top to the bottom of the packaging. | 1136 mm |
| Package weight Weight of the packaged product. | 59.5 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Manual |
|
| SKU | 809864 |
| MPN | CDE92UW |
| Brand | ViewSonic |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 90.00 Inch |
| Refresh Rate (Hz) | 60Hz |
| Screen Resolution | 5120x2160 (UW5K) |
| Input | DisplayPort / DP, HDMI |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.viewsonic.com/ |
