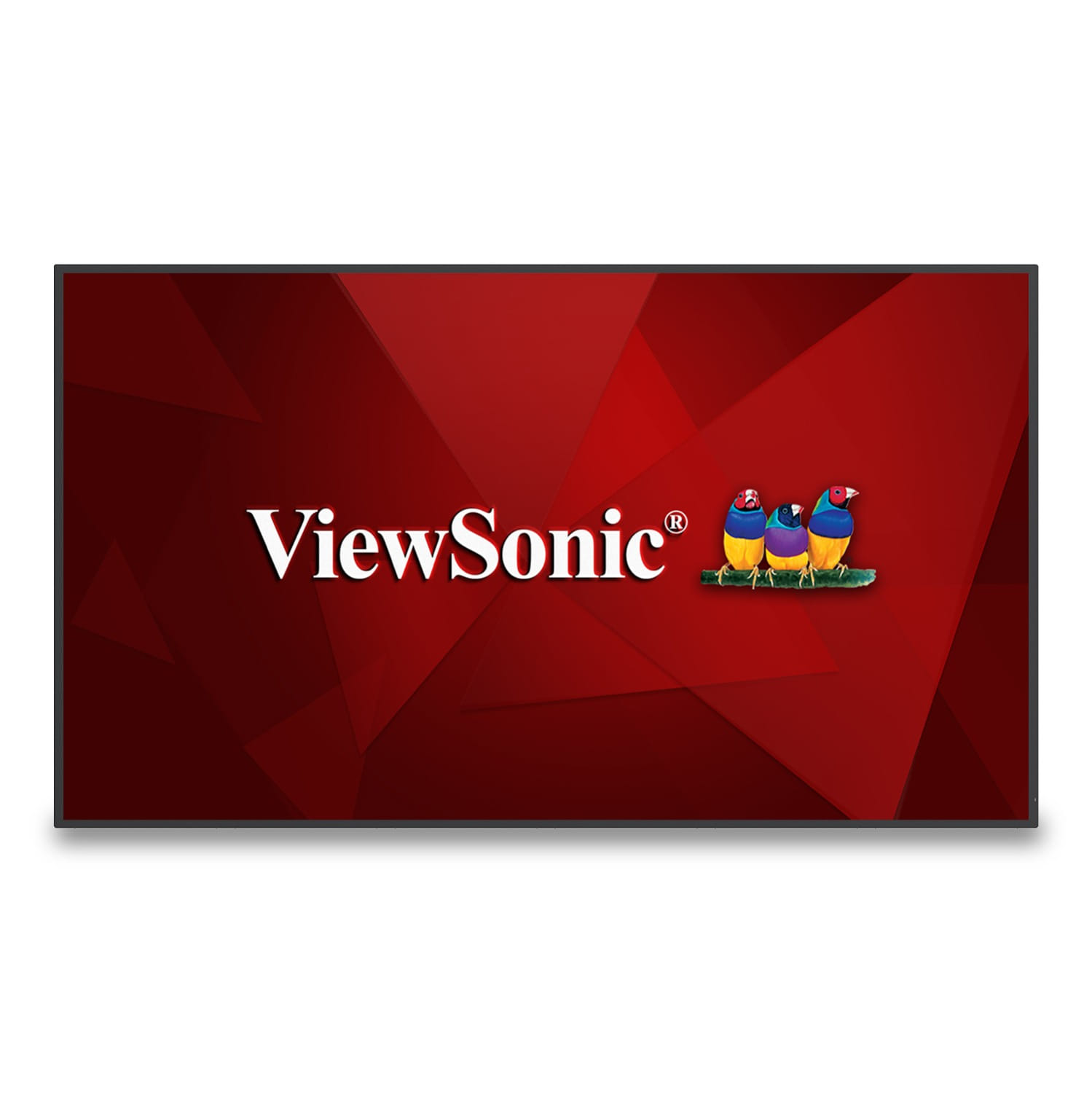

ViewSonic CDE8630 86" 4K Commercial Display

Display
Panel type	ADS
LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit.	Direct-LED
Display diagonal Size of the display for this product, measured diagonally, usually in inches.	2.18 m (86")
Display technology The technology used in the display e.g. plasma, LED.	LCD
Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.	3840 x 2160 pixels
Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.	450 cd/m²
HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD).	4K Ultra HD
Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers.
Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.	16:9
Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)	8 ms
Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black.	1200:1
Contrast ratio (dynamic) A property of a display system, defined as the ratio of the luminance of the brightest color (white) to that of the darkest color (black) that the system is capable of producing.	5000:1
Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance.	178°
Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance.	178°
Display number of colours	1.07 billion colours
Panel life The length of time that the panel can be used for.	50000 h
Native refresh rate	60 Hz
Haze rate	25%
Surface hardness	3H

Ports & interfaces
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	3
HDMI version	2.0/2.1
HDMI input ports quantity	2
HDMI output ports quantity	1
DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
USB port The device features a socket into which a USB cable can be plugged.
USB ports quantity	3
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	2.0/3.2 Gen 1 (3.1 Gen 1)
USB connector type The type of USB connector/port that this product has.	USB Type-A, USB Type-C
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
RS-232 interface
OPS module slot

Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of built-in speakers	2
RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.	20 W

Design
Product design The creation of a plan or convention for the construction of an object or a system.	Digital signage flat panel
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Indoor
Orientation	Horizontal/Vertical
Product colour The colour e.g. red, blue, green, black, white.	Black
Screen shape	Flat
VESA mounting
Panel mounting interface The product can be used wih VESA mounting interfaces.	800 x 400 mm
Bezel width (bottom)	1.5 cm
Bezel width (side)	1.5 cm
Bezel width (top)	1.5 cm
Anti-glare screen Always gives an optimal view, even in direct sunlight.
Mounting type Type of mounting e.g. wall mounting.	Wall

Performance
Purpose What the product is used for.	Universal
Operating hours (hours/days)	24/7
HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections.
HDCP version	2.2

Power
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	365 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	0.5 W
Power consumption (max) The maximum amount of power used by the device.	510 W
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	318 kWh
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
AC input frequency	50 - 60 Hz
Energy efficiency scale	A to G

Computer system
Computer system
Computer system type	System on Chip (SoC)
Built-in processor Whether or not a processor is built into the device.
Processor frequency The speed that the microprocessor executes each instruction or each vibration of the clock. The CPU requires a fixed number of clock ticks, or cycles, to execute each instruction. The faster the clocks rate, the faster the CPU, or the faster it can execute instructions. Clock Speeds are usually determined in MHz, 1 MHz representing 1 million cycles per second, or in GHz, 1 GHz representing 1 thousand million cycles per second. The higher the CPU speed, the better a computer will perform.	1.5 GHz
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	4
Internal memory A computer's memory which is directly accessible to the CPU.	4 GB
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	ARM Mali-G52
Internal storage capacity The amount e.g of data which can be stored inside the device.	32 GB
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Android 11

Weight & dimensions
Display width	1930.8 mm
Display depth	81.6 mm
Display height	1101 mm
Display weight	43.2 kg

Packaging data
Package width The distance from one side of the packaging to the other.	2110 mm
Package depth The distance from the front to the back of the packaging.	225 mm
Package height The distance from the top to the bottom of the packaging.	1227 mm
Package weight Weight of the packaged product.	60.8 kg

Packaging content
Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance.
Batteries included
Cables included	AC, HDMI, USB Type-C
Mounting kit

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 40 °C
Operating relative humidity (H-H)	20 - 80%

Certificates
Certification	cTUus, FCC, Energy Star 8.0, RoHS, Mexico NOM, Mexico Energy

Technical details
OPS slot	1

Other features
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
