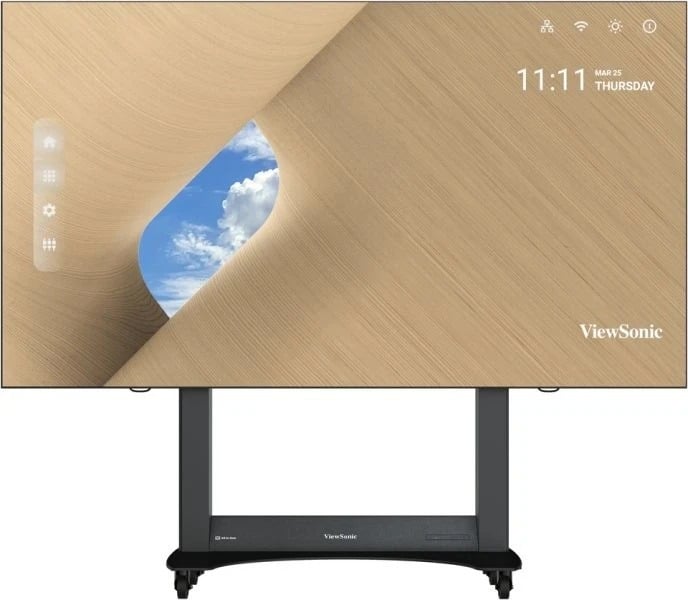

Viewsonic 138" All-in-One Foldable LED Display
Item No:
835990
MPN:
LDS138-151
$129,000.00
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Pre-assembled kit; Foldable screen; Shockproof, dustproof, and moisture-resistant; Built-in stand; Seamless large display
| Display | |
| LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display. |
 |
| LED backlighting type Backlighting is the illumination of a screen e.g. LCD (liquid crystal display). There are several types of backlighting with LEDs, e.g. full array, edge lit. | Direct-LED |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 3.51 m (138") |
| Display technology The technology used in the display e.g. plasma, LED. | LED |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 600 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 6500:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 170° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 170° |
| Pixel pitch This is the parameter of a picture tube, which specifies the shortest distance between two dots of the same colour. The principle is: the smaller the dot pitch, the better sharpness of image. | 1.588 x 1.588 mm |
| Active display area (W x H) | 1715 x 3050 mm |
| Panel life The length of time that the panel can be used for. | 100000 h |
| Horizontal scan range | 31 - 94 kHz |
| Vertical scan range | 56 - 85 Hz |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 5 |
| HDMI version | 1.4/2.0 |
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 1 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB ports quantity | 4 |
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 2.0 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface. | 2 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| RS-232 interface |
|
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of built-in speakers | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 30 W |
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Orientation | Horizontal |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Performance | |
| Purpose What the product is used for. | Universal |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP54 |
| HDCP version | 1.4/2.2 |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 581 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.5 W |
| Power consumption (max) The maximum amount of power used by the device. | 1745 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100-240/220-240 V |
| AC input frequency | 50/50-60 Hz |
| Computer system | |
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 32 GB |
| Operating system version The version of the operating system used e.g. 4.1, 4.2 for Android. | Android 9.0 |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 280.5 kg |
| Width (with stand) | 3064 mm |
| Depth (with stand) | 780 mm |
| Height (with stand) | 2598 mm |
| Weight (with stand) | 250 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 2070 mm |
| Package depth The distance from the front to the back of the packaging. | 844 mm |
| Package height The distance from the top to the bottom of the packaging. | 1990 mm |
| Package weight Weight of the packaged product. | 454 kg |
| Packaging content | |
| Remote control included Component of an electronics device, most commonly a television set, DVD player and home theater systems originally used for operating the device wirelessly from a short line-of-sight distance. |
|
| Cables included | IR, LAN (RJ-45), Power |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Logistics data | |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 8528521000 |
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| SKU | 835990 |
| MPN | LDS138-151 |
| Brand | ViewSonic |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 138.00 Inch |
| Refresh Rate (Hz) | 60Hz |
| Screen Resolution | 1920x1080 (FHD/1080p) |
| Input | HDMI |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.viewsonic.com/ |
