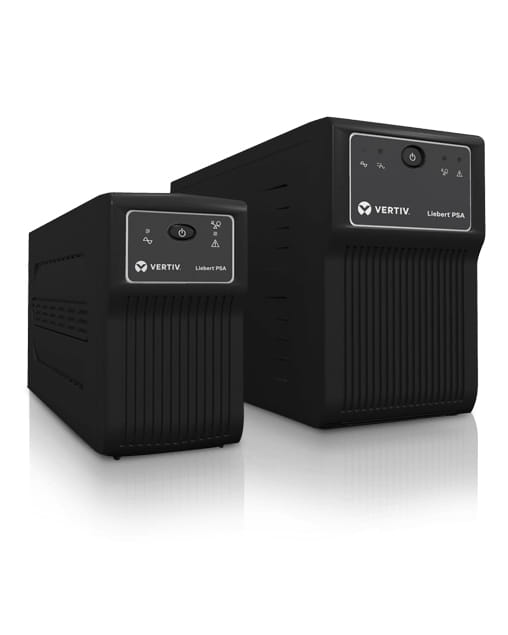

Vertiv Liebert PSA 1500VA, Line Interactive, 1.5 kVA, 900 W, Stepwise, 160 V, 287 V
Liebert PSA 1500VA is a compact line interactive UPS that offers cost effective, full featured power protection for small office computer and electronic equipment. Liebert PSA mixes unique features and extraordinary performance. Designed with simple controls for easy operation, it provides up to five minutes of back up time at full load: more than enough time to save work in process and shut down your system.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 1.5 kVA |
| Output power The power that the device can produce. | 900 W |
| Waveform | Stepwise |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 160 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 287 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output frequency | 50/60 Hz |
| Surge energy rating A surge protector is an appliance designed to protect electrical devices from voltage spikes. A surge protector attempts to limit the voltage supplied to an electric device by either blocking or by shorting to ground any unwanted voltages above a safe threshold. The surge energy rating is a measure of how much energy a surge protector can theoretically absorb in a single event, without failure. | 570 J |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 6 ms |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Power factor | 0.6 |
| Output power factor | 0.6 |
| Surge protection |
 |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | IEC 320, C13 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 8 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 VAh |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Number of batteries supported The number of batteries that can be used with the product. | 2 |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 6 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 12 min |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 6 h |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Cooling type The method used to cool the device or to cool the air around the device. | Passive |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP20 |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | IEC/EN/AS 62040-1-1 |
| Certification | CE |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 147 mm |
| Depth The distance from the front to the back of something. | 360 mm |
| Height The measurement of the product from head to foot or from base to top. | 234 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 12.6 kg |
| Package width The distance from one side of the packaging to the other. | 238 mm |
| Package depth The distance from the front to the back of the packaging. | 432 mm |
| Package height The distance from the top to the bottom of the packaging. | 352 mm |
| Package weight Weight of the packaged product. | 12.8 kg |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | VRLA |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 147 x 360 x 234 mm |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| SKU | 717614 |
| MPN | PSA1500MT3-230U |
| Brand | Vertiv |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.vertiv.com/ |
