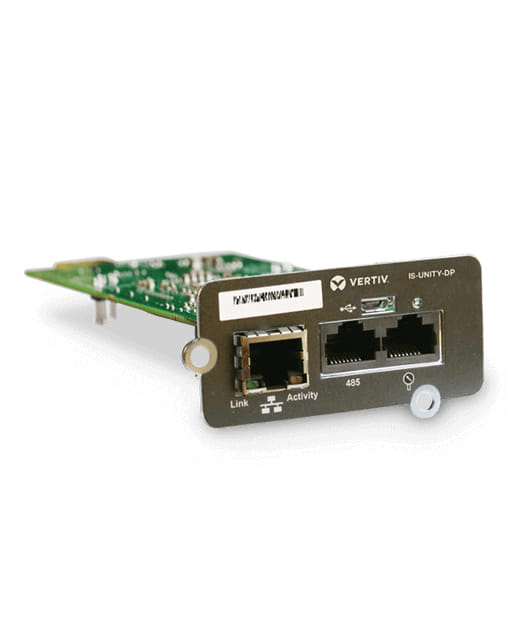

Vertiv Liebert IntelliSlot Unity Card, Internal, Wired, RJ-45, Ethernet, 100 Mbit/s
Liebert IntelliSlot Unity Communications Interface Card provides Trellis, LIFE Services and Liebert Nform enablement as well as Web access, environmental sensor data, and third-party customer protocols for Vertiv equipment. The cards can monitor and manage a wide range of operating parameters, alarms and notifications.
Provides Web access, environmental sensor data, alarm notifications, and third-party interface protocols for Vertiv equipment, and integrates with Vertiv LIFE Services, Trellis, and Liebert Nform.
-SNMP
-WEB Browser
-Email Notifications
-SMS Notifications (require SMS gateway)
-VertivTM LIFETM Services
Provides Web access, environmental sensor data, alarm notifications, and third-party interface protocols for Vertiv equipment, and integrates with Vertiv LIFE Services, Trellis, and Liebert Nform.
-SNMP
-WEB Browser
-Email Notifications
-SMS Notifications (require SMS gateway)
-VertivTM LIFETM Services
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | RJ-45 |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 100 Mbit/s |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Cabling technology Type of cable technology performance. | 10/100BaseT(X) |
| Design | |
| Internal The product is built in. |
|
| Power | |
| Output voltage | 7-12 V |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 3.6 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 75.5 mm |
| Depth The distance from the front to the back of something. | 15 mm |
| Height The measurement of the product from head to foot or from base to top. | 37 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 200 g |
| Packaging data | |
| Package weight Weight of the packaged product. | 600 g |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 773267 |
| MPN | IS-UNITY-SNMP |
| Brand | Vertiv |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.vertiv.com/ |
