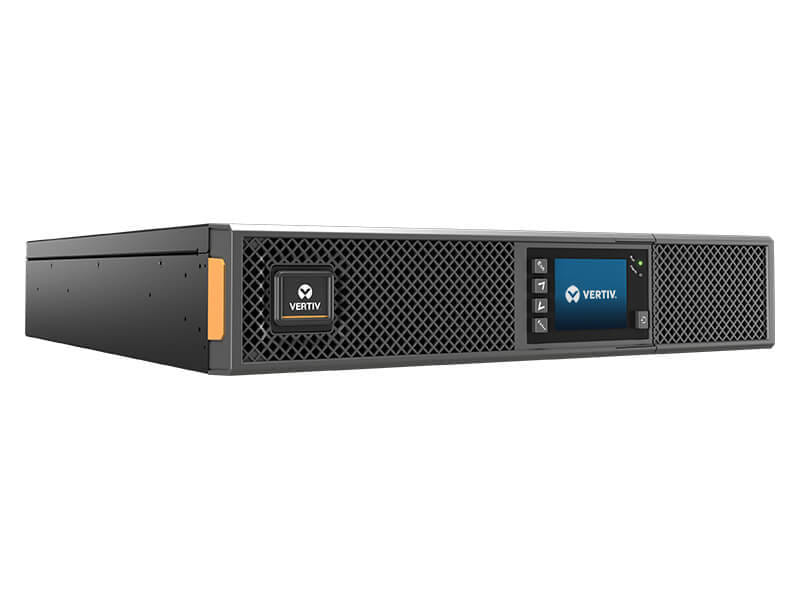

Vertiv Liebert GXT5 3000IRT2UXL 3000VA 230V UPS
Item No:
773174
MPN:
1202005
$5,357.87
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 3-5 business days
Store Availability
- 4-6 business days at Bankstown Store
- 4-6 business days at Castle Hill Store
- 3-5 business days at Northmead Store
Shipping Estimate
Vertiv Liebert GXT5, Double-conversion (Online), 3 kVA, 3000 W, Pure sine, 115 V, 288 V
The Vertiv Liebert GXT5 UPS 3000VA/3000W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a two-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 3 kVA |
| Output power The power that the device can produce. | 3000 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 115 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 288 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 3% |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 95% |
| Efficiency (On-line mode) | 95% |
| Efficiency (ECO mode) | 98% |
| Input power factor | 0.99 |
| Emergency Power Off (EPO) |
 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 58 dB |
| Power protection features Features that protect the device against power problems e.g. overload. | Overload |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
|
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 7 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Serial interface type | RS-232, RS-485 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 VAh |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 3 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 9 min |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 3 h |
| Hot-swap battery |
|
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP20 |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | IEC62040-1:2008, GS; UL1778, c-UL |
| Certification | IEC/EN/AS 62040-2 2nd Ed (Cat 2 – 6); FCC 15 A CISPR22 A(RFI) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Technical details | |
| Sustainability certificates | RoHS, ENERGY STAR |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 430 mm |
| Depth The distance from the front to the back of something. | 540 mm |
| Height The measurement of the product from head to foot or from base to top. | 85 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 28.2 kg |
| Package width The distance from one side of the packaging to the other. | 517 mm |
| Package depth The distance from the front to the back of the packaging. | 617 mm |
| Package height The distance from the top to the bottom of the packaging. | 262 mm |
| Package weight Weight of the packaged product. | 33 g |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Battery type Description of battery supplied with the product, such battery form factor (e.g. AA/AAA). | VRLA |
| Output connections | IEC320 C13 & C19 |
| Input connection type The type of connection /port for the input(s) into this device e.g. USB. | C20 |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| Non-operating relative humidity (non-condensing) Range of relative humidity (non-condensing) in which a non-operating product can be stored. | 0 - 95% |
| Overload protection |
|
| Bypass |
|
| SKU | 773174 |
| MPN | 1202005 |
| Brand | Vertiv |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.vertiv.com/ |
