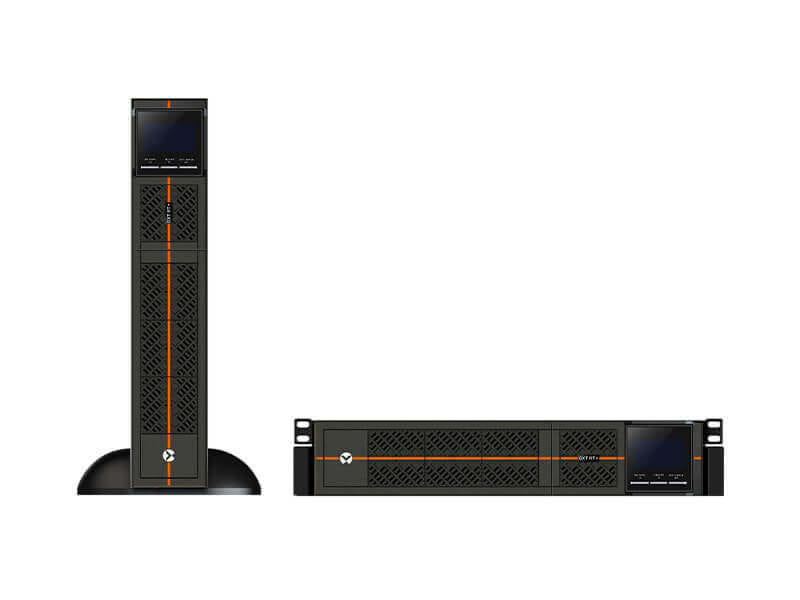

Vertiv Liebert GXTRT-2000IRT2UXL, Double-conversion (Online), 2 kVA, 1800 W, Pure sine, 178 V, 288 V
The Vertiv Liebert GXT RT Uninterruptible Power Supply (UPS) (GXTRT 2000IRT2UXL) is an online double conversion solution and a high quality battery backup. With a power capacity of 2kVA, it delivers the high performance protection you need. The high 0.9 power factor of this single phase UPS enables continuous, reliable power to more connected devices from a wide range of input voltages while being energy efficient and, delivering maximum value. This 1ph UPS adapts to areas with unstable power mains supply and offers an optional tower or rack mount to meet varying installation requirements. The simplified installation with at a glance configuration information offers you a user friendly interface (LCD) to work with. This model has a IEC60320 C14 INLET Connector Type and has 6 locking C13 receptacles. The ECO power supply mode helps you save the maximum amount of energy which drives cost savings.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 2 kVA |
| Output power The power that the device can produce. | 1800 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 178 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 288 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40 - 70 Hz |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 89% |
| Efficiency (On-line mode) | 89% |
| Power factor | 0.9 |
| Input power factor | 0.9 |
| Output power factor | 0.9 |
| Emergency Power Off (EPO) |
 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 55 dB |
| Power protection features Features that protect the device against power problems e.g. overload. | Overload |
| Audible alarm(s) Alarms that make a sound when they are activated (set off). |
 |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 6 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Number of batteries supported The number of batteries that can be used with the product. | 4 |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 3.2 min |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 9 min |
| Hot-swap battery |
|
| Design | |
| Form factor The shape or design of the product. | Rackmount |
| Rack capacity The spase that device fill in rack. | 2U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | CE |
| Certification | CE Mark; IEC/EN 62040-1: 2014, IEC/EN 62040-2:2006+AC:2006 Class A, EN 61000-4-5: 2005 Class 2 L-N, Class 3 L-G, ISTA 2A |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 2000 m |
| Technical details | |
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85078000 |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 438 mm |
| Depth The distance from the front to the back of something. | 462 mm |
| Height The measurement of the product from head to foot or from base to top. | 88 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 18.2 kg |
| Package width The distance from one side of the packaging to the other. | 700 mm |
| Package depth The distance from the front to the back of the packaging. | 240 mm |
| Package height The distance from the top to the bottom of the packaging. | 565 mm |
| Package weight Weight of the packaged product. | 20.7 kg |
| Packaging data | |
| Rack mount kit |
|
| Cables included | Input power cable, Output power cable, Power load cable, USB cable |
| Manual |
|
| Quick installation guide |
|
| Logistics data | |
| Shipping (inner) case width | 56.5 cm |
| Shipping (inner) case length | 70 cm |
| Shipping (inner) case height | 24 cm |
| Shipping (inner) case gross weight | 20.7 kg |
| SKU | 704723 |
| MPN | GXTRT-2000IRT2UXL |
| Brand | Vertiv |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.vertiv.com/ |
