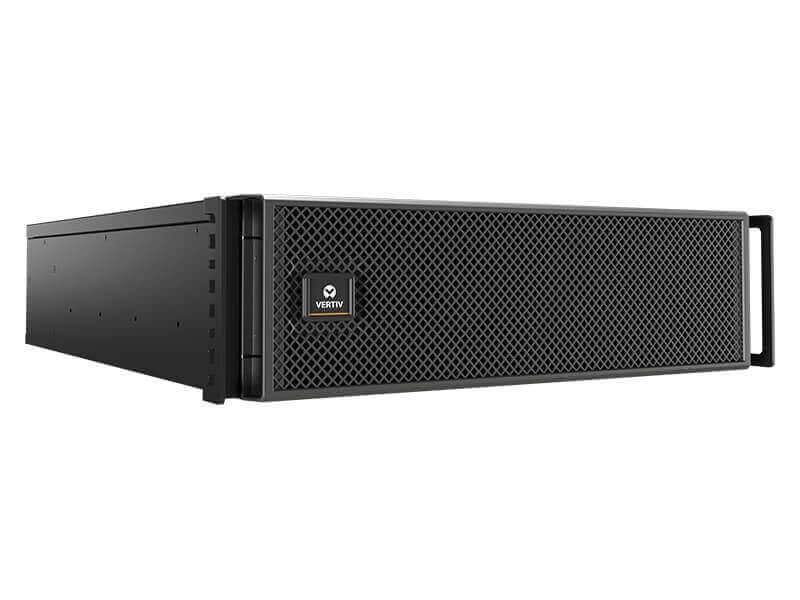

Vertiv Liebert GXT5 / 5 - 10 KVA External battery cabinet, 125%, 150%, 55 dB, Overload, Sealed Lead Acid (VRLA), 9 Ah
The Vertiv Liebert GXT5-EBC192VRT3U is an external hot-swappable, lead-acid UPS battery cabinet designed for use with these UPS models: Liebert GXT5-5000IRT5UXLE , Liebert GXT5-6000IRT5UXLE, Liebert GXT5-8000IRT5UXLE, and Liebert GXT5-10KIRT5UXLE. Its new auto detection feature makes installation easy and fast ensuring the UPS configuration is complete and accurate. Users can connect to up to 10 external battery cabinets to a single UPS for extended runtime
| Features | |
| Number of output phases | 1 |
| Overload capacity (5 minute) | 125% |
| Overload capacity (1 minute) | 150% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 55 dB |
| Power protection features Features that protect the device against power problems e.g. overload. | Overload |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Number of batteries supported The number of batteries that can be used with the product. | 16 |
| Design | |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IP20 |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | IEC62040-1:2008 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 430 mm |
| Depth The distance from the front to the back of something. | 581 mm |
| Height The measurement of the product from head to foot or from base to top. | 173 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 65 kg |
| Package width The distance from one side of the packaging to the other. | 670 mm |
| Package depth The distance from the front to the back of the packaging. | 840 mm |
| Package height The distance from the top to the bottom of the packaging. | 465 mm |
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Output voltage | 230 V |
| SKU | 773198 |
| MPN | 2312376 |
| Brand | Vertiv |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.vertiv.com/ |
| Stock Availability | Available for Shipping |
