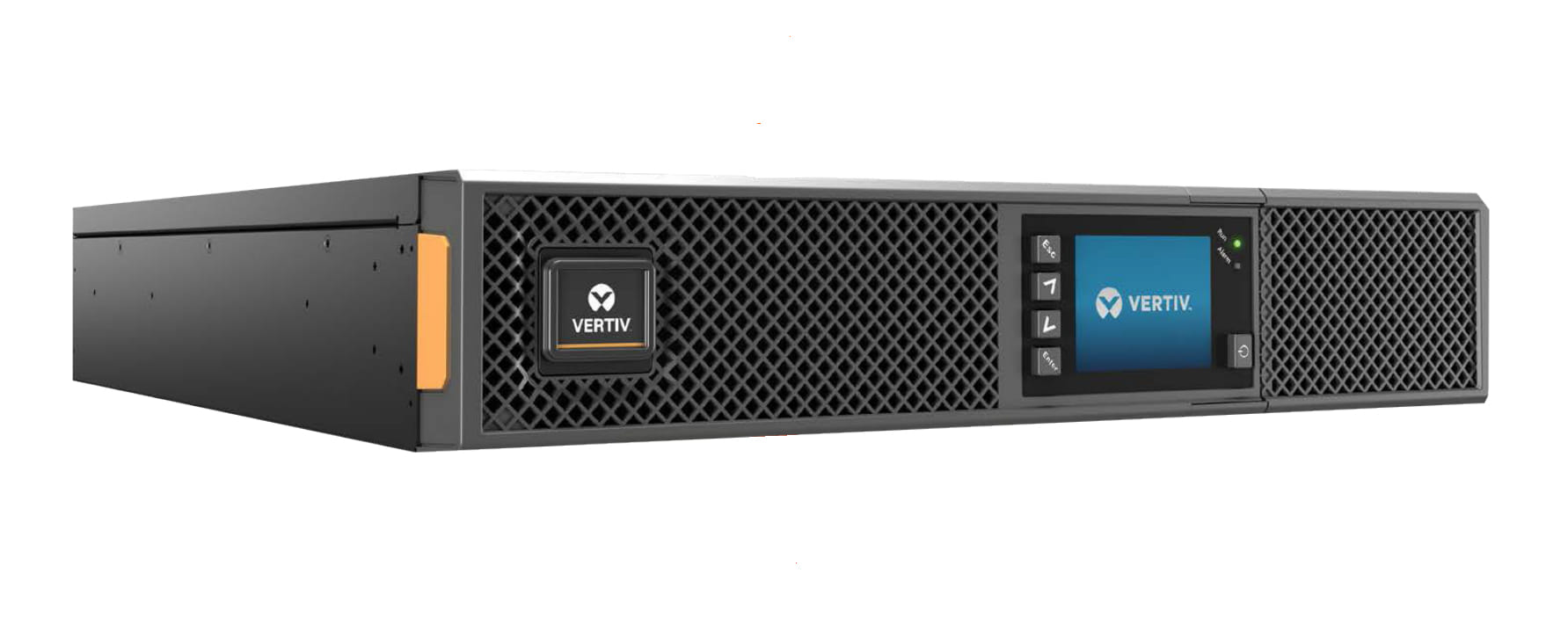

Vertiv GXT5-1500IRT2UXL, Double-conversion (Online), 1.5 kVA, 1500 W, Pure sine, 230 V, 230 V
The Vertiv Liebert GXT5 UPS is an online double conversion UPS solution
which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system.
The Liebert GXT5 is a single phase UPS built on the super reliable platform of Liebert GXT seriessupporting over a million critical systems all over the world.
With market leading efficiency and unity power factor operation, the Liebert GXT5 will fill your critical application needs for both centralized and edge network applications. Scalable runtime options with matching external battery cabinets offer additional flexibility when extended uninterrupted power is required. User friendly LCD interface as well as full networkmanagement capability, including configuration and remote updates, make this system easy to deploy and simple to maintain. Sleep well knowing your business is protected by the premium products from Vertiv.
which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system.
The Liebert GXT5 is a single phase UPS built on the super reliable platform of Liebert GXT seriessupporting over a million critical systems all over the world.
With market leading efficiency and unity power factor operation, the Liebert GXT5 will fill your critical application needs for both centralized and edge network applications. Scalable runtime options with matching external battery cabinets offer additional flexibility when extended uninterrupted power is required. User friendly LCD interface as well as full networkmanagement capability, including configuration and remote updates, make this system easy to deploy and simple to maintain. Sleep well knowing your business is protected by the premium products from Vertiv.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 1.5 kVA |
| Output power The power that the device can produce. | 1500 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 230 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 230 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40 - 70 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 200 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Efficiency | 93% |
| Power factor | 0.99 |
| ECO mode |
 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 46 dB |
| Ports & interfaces | |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Serial interface |
|
| Serial interface type | RJ-45 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Battery | |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Number of batteries supported The number of batteries that can be used with the product. | 4 |
| Charging current | 2.2 A |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Rack capacity The spase that device fill in rack. | 2U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Certification | UL-1778 (Fifth Edition), C-UL listed, IEC 62040-1: 2008 (First Edition) + Am 1:2013, EN 62040-1:2008+A1:2013, CISPR22 Class A (RFI)/ FCC Part 15 (Class A), ISTA Procedure 1A, ANSI C62.41 Category B |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 430 mm |
| Depth The distance from the front to the back of something. | 470 mm |
| Height The measurement of the product from head to foot or from base to top. | 85 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 21 kg |
| SKU | 699059 |
| MPN | GXT5-1500IRT2UXL |
| Brand | Vertiv |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.vertiv.com/ |
