Vertiv Avocent 4 Port ACS800 Serial Console with analog modem, external AC/DC Power Brick Global Datacenter PDU Power Cord, 10,100,1000 Mbit/s, Wired, RJ 45, 100 240 V, 50 60 Hz, Black

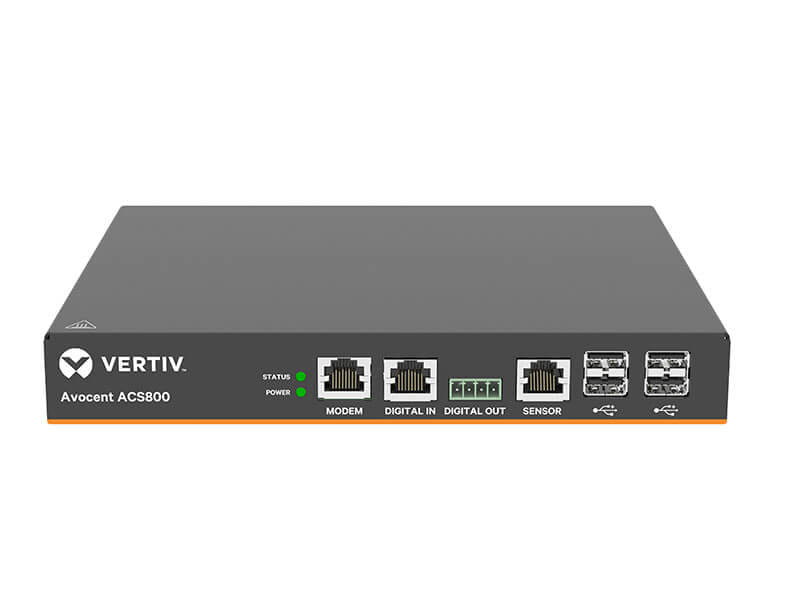

Avocent ACS 800 Serial Console
The Avocent ACS 800 serial console system takes Vertiv s renowned enterprise class technologies utilized in data centers around the world and packages the key features into an exciting compact and cost effective form factor. The ACS 800 provides serial access, environmental monitoring, IoT integration and remote networking capability to edge oriented market sectors including financial institutions, retail chains and education.
Secure in band and out of band network remote management
Fast, automated configuration with Zero Touch Provisioning
Access and troubleshoot remote locations using automatic network failover to cellular (and failback)
Automatic pin out detection for both Cyclades and Cisco pinouts using straight through cables
Compliance with data center access and security policies " customizable, multiple access levels
Support for Rack PDUs from Vertiv , ServerTech, APC, Raritan and Eaton
The Avocent ACS 800 serial console system takes Vertiv s renowned enterprise class technologies utilized in data centers around the world and packages the key features into an exciting compact and cost effective form factor. The ACS 800 provides serial access, environmental monitoring, IoT integration and remote networking capability to edge oriented market sectors including financial institutions, retail chains and education.
Secure in band and out of band network remote management
Fast, automated configuration with Zero Touch Provisioning
Access and troubleshoot remote locations using automatic network failover to cellular (and failback)
Automatic pin out detection for both Cyclades and Cisco pinouts using straight through cables
Compliance with data center access and security policies " customizable, multiple access levels
Support for Rack PDUs from Vertiv , ServerTech, APC, Raritan and Eaton
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
 |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 2 |
| Console port | RJ-45 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 4 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 4 |
| Power | |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | FCC Class A CE Class A (EU) ICES-003 (Canada) VCCI (Japan) RCM (Australia) Customs Union (CU) KCC (Korea) UL (USA) cUL (Canada) EN-60950 (EU) CB Customs Union (CU) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 70 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 90 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 211.84 x 181.76 x 29.49 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.09 kg |
| SKU | 723137 |
| MPN | ACS804MEAC-400 |
| Brand | Vertiv |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.vertiv.com/ |
